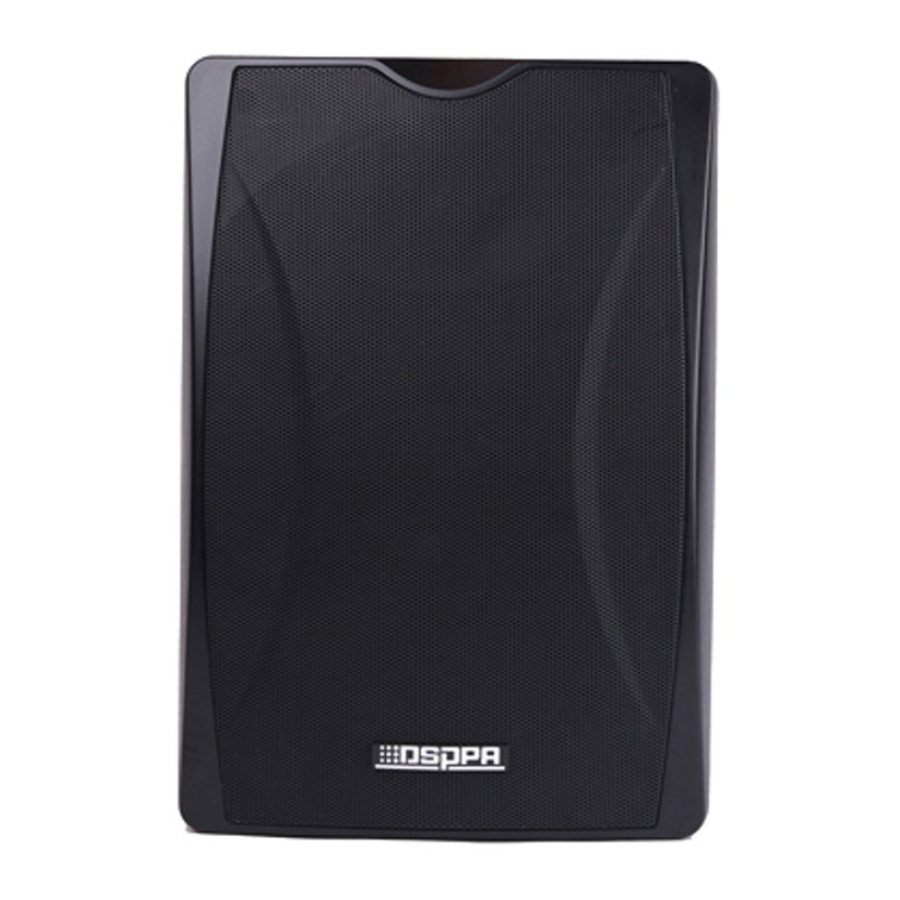

Powered network wall mountspeaker

Advertisement

Quick Links

POE6463B
F
eatures
 100/10Mbps, TCP/IP network transmission protocol adaptive
 High class waterproof grille, engineering plastic mold design
 Built-in 10W high efficiency digital amplifier with low power-consuming.
 Audio source includes: Background music, emergency call, and alarm from the Host
 1 auxiliary audio input, 1 auxiliary audio output and 1 microphone input
 100V local emergency input, easy to connect with the local fire alarming system
 Accept infrared remote control
 POE power supply, easy for installation and cable laying
D
escription

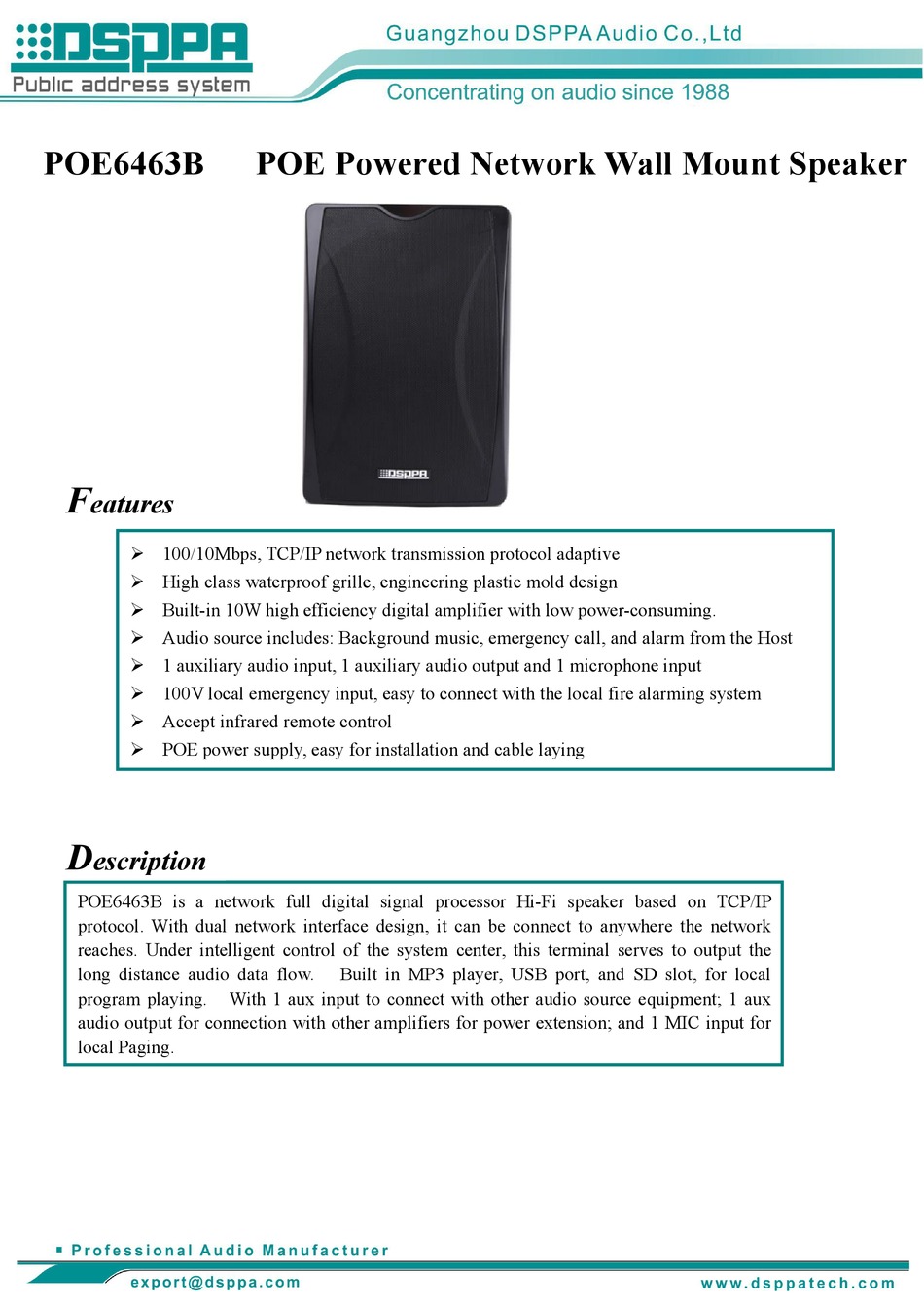

POE6463B is a network full digital signal processor Hi-Fi speaker based on TCP/IP
protocol. With dual network interface design, it can be connect to anywhere the network
reaches. Under intelligent control of the system center, this terminal serves to output the
long distance audio data flow.
program playing.
audio output for connection with other amplifiers for power extension; and 1 MIC input for
local Paging.
POE Powered Network Wall Mount Speaker
Built in MP3 player, USB port, and SD slot, for local
With 1 aux input to connect with other audio source equipment; 1 aux

Advertisement

loading
Need help?

Need help?

Do you have a question about the POE6463B and is the answer not in the manual?

Questions and answers

Summary of Contents for DSPPA POE6463B

  • Page 1  POE power supply, easy for installation and cable laying escription POE6463B is a network full digital signal processor Hi-Fi speaker based on TCP/IP protocol. With dual network interface design, it can be connect to anywhere the network reaches. Under intelligent control of the system center, this terminal serves to output the long distance audio data flow.
  • Page 2 pecification Item Technical specifications AUX input Input impedance >10kΩ Input sensitivity 1000 Frequency response 50Hz-20kHz Distortion 0.1% Signal-to-noise ratio MIC input Input impedance >600Ω Frequency response 50Hz-20kHz Distortion Signal-to-noise ratio AUX output Output impedance <50Ω Output sensitivity 1000m Frequency response 50Hz-20kHz Distortion 0.1%...
  • Page 3: Introduction Of Functions

    II. Introduction of functions IN- IN+ A POE LAN AUX OUT 警告 IN R lN L 100V 请勿打开,以免触电 AUDIO INPUT POE Network Speaker SPEAKER OUTPUT left and right sound channel output. 1 Speaker 4 Auxiliary output interface (AUX OUT) 1×10W digital power amplifiers are built in the machine, and the power of Connect with the high power amplifier, the output port is 10W.
  • Page 4 III. Connection legend 3.1 Schematic diagram of application of POE6463 in the system Control host of the network broadcasting system Network Other equipment of the network broadcasting broadcasting system system Termin Termin Termin Termin 1. Only the schematic description for connection of rough application of POE6463 networked speaker is made in the above figure.
  • Page 5 3.2 Schematic diagram of connection of interface of POE6463 Except for playing the program of host machine broadcast, the machine is also provided with a way auxiliary input and a way auxiliary output, so as to connect other audio sources and power amplifiers. The customized design can satisfy demands for high power and multiple audio sources on terminal site.
