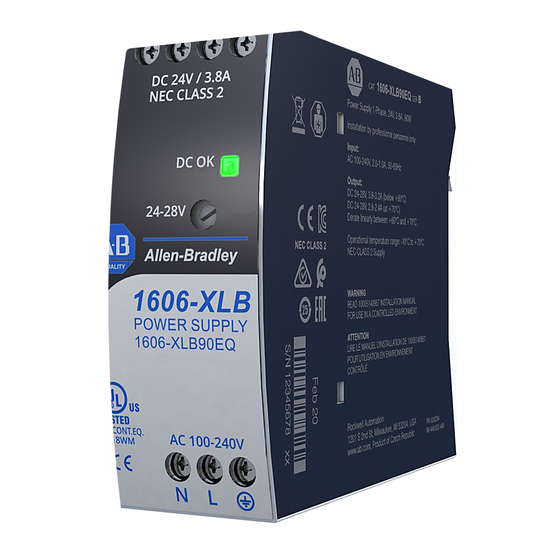

- Page 1 Power Supply - 24V, 3.8 A, 90 W, Single-phase Input Catalog Number 1606-XLB90EQ Reference Manual Original Instructions...
- Page 2 If this equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired. In no event will Rockwell Automation, Inc. be responsible or liable for indirect or consequential damages resulting from the use or application of this equipment.
-
Page 3: Table Of Contents
Additional Resources ..........21 Rockwell Automation Publication 1606-RM123A-EN-P - September 2021... - Page 4 Table of Contents Notes: Rockwell Automation Publication 1606-RM123A-EN-P - September 2021...
-
Page 5: Terminology And Abbreviations
Cost-optimized without compromising quality or reliability • Width only 36 mm (1.42 in.) • Efficiency up to 93.8% • Low no-load power losses • Full power between -10…+60 °C (14…140 °F) • Large screw terminals Rockwell Automation Publication 1606-RM123A-EN-P - September 2021... -
Page 6: Specifications
36 x 90 x 91 mm Size (W x H x D) Without DIN rail (1.42 x 3.54 x 3.58 in.) Weight 270 g (0.6 lb) — Catalog Number Catalog Number Description 1606-XLB90EQ Power supply Rockwell Automation Publication 1606-RM123A-EN-P - September 2021... -
Page 7: Ac Input
Power Factor, Typ 1.8 A a: 100V AC b: 120V AC c: 230V AC a) 100V AC, 50 Hz b) 120V AC, 60 Hz c) 230V AC, 50 Hz Output Current 4.0 A Output Current Rockwell Automation Publication 1606-RM123A-EN-P - September 2021... -
Page 8: Input Inrush Current
Figure 8 - First Inrush Peak at 120V AC and 25 °C (77 °F) Ambient Input current 10 A/DIV Ipk = 16 A Input voltage 500V/DIV Input current Output voltage 5 A/DIV 20 ms/DIV 1 ms/DIV Rockwell Automation Publication 1606-RM123A-EN-P - September 2021... -
Page 9: Output
Figure 10 - Intermittent Current at Short Circuit, Typ Output Voltage Adjustment Range Output Current Normal Normal Short -circuit operation operation 8.6 A A: continuous current B: intermittent current Output Current 160 ms 160 ms 160 ms Rockwell Automation Publication 1606-RM123A-EN-P - September 2021... -
Page 10: Hold-Up Time
Zero Transition Input Voltage - 5% a) 24V 1.9 A typ Output b) 24V 1.9 A min Voltage c) 24V 3.8 A typ d) 24V 3.8 A min Hold-up Time 230V AC Input Voltage Rockwell Automation Publication 1606-RM123A-EN-P - September 2021... -
Page 11: Efficiency And Power Losses
Figure 15 - Efficiency Versus Input Voltage at 24V, 3.8 A, Typ Figure 16 - Losses Versus Input Voltage at 24V, 3.8 A, Typ Power Losses Efficiency 10 W 225 260V AC 225 260V AC Input Voltage Input Voltage Rockwell Automation Publication 1606-RM123A-EN-P - September 2021... -
Page 12: Functional Diagram
DC OK status indicator (green) The status indicator is on when the output voltage is > 18V. Output voltage adjustment potentiometer Input terminals (screw terminals) L: Phase (line) input N: Neutral conductor input Protective Earth (PE) input Rockwell Automation Publication 1606-RM123A-EN-P - September 2021... -
Page 13: Connection Terminals
210,000 hr 215,000 hr 211,000 hr At 24V, 3.8 A, 40 °C (104 °F); Ground Fixed GF40 276,000 hr 282,000 hr 281,000 hr At 24V, 3.8 A, 25 °C (77 °F); Ground Fixed GF25 Rockwell Automation Publication 1606-RM123A-EN-P - September 2021... -
Page 14: Electromagnetic Compatibility
If they do occur, the device corrects them. Criterion C: Temporary loss of function is possible. The device may shut down. If it shuts down, it then restarts by itself. No damage or hazards for the device occur. Rockwell Automation Publication 1606-RM123A-EN-P - September 2021... -
Page 15: Environment
B... T amb < 50 °C A...continuous C... T amb < 45 °C B... short term (300 s max) Altitude 2000 4000 5000 m +70 °C 54 kPa Ambient Temperature (1) Atmospheric pressure Rockwell Automation Publication 1606-RM123A-EN-P - September 2021... -
Page 16: Safety And Protection Features
Field test 2000V AC 2000V AC 500V AC Cutoff current setting for field test — > 2 mA > 2 mA > 6 mA Figure 21 - Dielectric Strength Input Output Earth, PE Rockwell Automation Publication 1606-RM123A-EN-P - September 2021... -
Page 17: Certifications And Standards Compliance
IEC 61558-2-16 products for supply voltages up to 1100 V Safety Isolating (Annex B) Particular requirements and tests for switch mode power Transformer supply units and transformers for switch mode power supply units Rockwell Automation Publication 1606-RM123A-EN-P - September 2021... -
Page 18: Approximate Dimensions And Weight
(0 in.) to 15 mm (0.59 in.). Penetration protection Small parts like screws and nuts with a diameter larger than 4.2 mm (0.165 in.). Figure 22 - Front View Figure 23 - Side View All dimensions in mm Rockwell Automation Publication 1606-RM123A-EN-P - September 2021... -
Page 19: Operation On Two Phases
24V, 3.8 A; (=100%) Temperature inside the box 30.3 °C (86.54 °F) 31.7 °C (89.06 °F) Temperature outside the box 21.0 °C (69.8 °F) 21.0 °C (69.8°F) Temperature rise 9.3 K 10.7 K Rockwell Automation Publication 1606-RM123A-EN-P - September 2021... -
Page 20: Prohibited Applications
Parallel Use to Increase Output Power Do not use the power supply in parallel to increase the output power. Parallel Use for 1+1 Redundancy Do not use the power supply to build redundant systems. Rockwell Automation Publication 1606-RM123A-EN-P - September 2021... -
Page 21: Additional Resources
DC Power Supply - 24V, 3.8 A, 90 W, Single-phase Input Reference Manual Additional Resources These documents contain additional information concerning related products from Rockwell Automation. Resource Description Switched Mode Power Supply Specifications Technical Data, publication Provides specifications for Bulletin 1606 products and applications. - Page 22 At the end of life, this equipment should be collected separately from any unsorted municipal waste. Rockwell Automation maintains current product environmental information on its website at rok.auto/pec. Allen-Bradley, expanding human possibility, and Rockwell Automation are trademarks of Rockwell Automation, Inc. Trademarks not belonging to Rockwell Automation are property of their respective companies.
