- Page 1 Reference Manual Original Instructions Basic Power Supply 5 A Catalog Number 1606-XLB120E...
- Page 2 If this equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired. In no event will Rockwell Automation, Inc. be responsible or liable for indirect or consequential damages resulting from the use or application of this equipment.
-
Page 3: Table Of Contents
Provides declarations of conformity, certificates, and www.rockwellautomation.com/global/certification/ other certification details. overview.page You can view or download publications at http://www.rockwellautomation.com/global/literature-library/overview.page. To order paper copies of technical documentation, contact your local Allen-Bradley distributor or Rockwell Automation sales representative. Rockwell Automation Publication 1606-RM055B-EN-P - February 2017... -
Page 4: Terminology And Abbreviations
This document uses the term “earth” which is the same as the U.S. term “ground”. PE and symbol PE is the abbreviation for Protective Earth and has the same meaning as the symbol. PELV Protection by extra-low voltage SELV Safety by extra-low voltage Rockwell Automation Publication 1606-RM055B-EN-P - February 2017... -
Page 5: Product Overview
• Small width of 39 mm (1.54 in.) takes up less space on the DIN rail • Efficiency up to 92.3% • Full power between -10…+55 °C (14…131 °F) • DC-OK relay contact included • 1-year warranty Rockwell Automation Publication 1606-RM055B-EN-P - February 2017... -

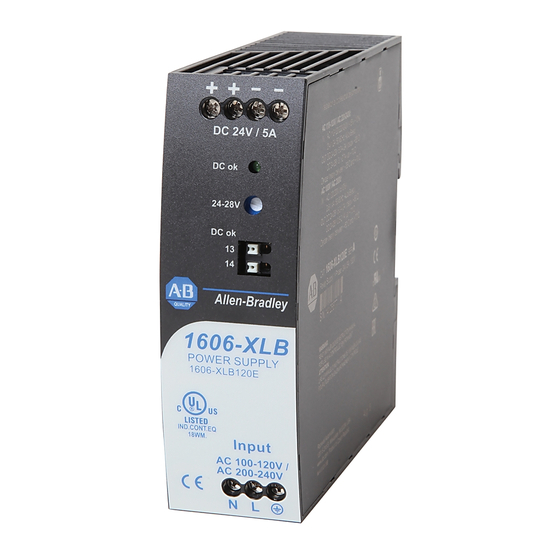

Page 6: Front Side And User Elements
IP 20 EN/IEC 60529 Caution: For use in a controlled environment according to CSA 22.2 No 107.1-01. Over-temperature protection Input transient protection MOV (Metal Oxide Varistor) Internal input fuse Included Not user replaceable Rockwell Automation Publication 1606-RM055B-EN-P - February 2017... -
Page 7: Safety Features
1.6 mm (0.06 in.) Wire stripping length 7 mm (0.28 in.) 7 mm (0.28 in.) Screwdriver 3.5 mm (0.14 in.) Not required slotted or cross-head No 2 Recommended tightening torque 1 N•m (9 lb•in) Not applicable Rockwell Automation Publication 1606-RM055B-EN-P - February 2017... -
Page 8: Input
230Vac b) 120Vac c) 230Vac 0.60 0.55 0.50 Output Current Output Current 0.45 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5A 0.5 1 1.5 2 2.5 3 3.5 4 4.5 Rockwell Automation Publication 1606-RM055B-EN-P - February 2017... -
Page 9: Dc-Input
230V AC Input, 24V 5 A Output, 40 °C (104 °F) Ambient 230V AC Input, 24V 5 A Output, 40 °C (104 °F) Ambient 20ms/DIV 1ms/DIV Ipeak = 33A Input current 20A/DIV Input voltage 500V/DIV Input current 10A/DIV Output voltage 20V/DIV Rockwell Automation Publication 1606-RM055B-EN-P - February 2017... -
Page 10: Output
Figure 8 - Output Voltage vs. Output Current, R ms current, typ Figure 9 - Intermittent Operation at Shorted Output, typ Output Voltage Adjustment Range 60ms continuous 9.2A current intermittent operation 360ms Output Current Rockwell Automation Publication 1606-RM055B-EN-P - February 2017... -
Page 11: Hold-Up Time
60V DC 0.3 A, 30V DC 1 A, 30V AC 0.5 A resistive load 1 mA at 5V DC minimum required load Isolation voltage Dielectric Strength on page 21 Figure 12 - DC-OK Relay Contact Behavior Output Voltage 21.4V open closed Rockwell Automation Publication 1606-RM055B-EN-P - February 2017... -
Page 12: Efficiency And Power Loss
Figure 14 - Efficiency vs. Input Voltage at 24V, 5 A, typ Figure 16 - Power Losses vs. Input Voltage at 24V, 5 A Efficiency Power Losses Input Voltage Input Voltage 230 260Vac 230 260Vac Rockwell Automation Publication 1606-RM055B-EN-P - February 2017... -
Page 13: Lifetime Expectancy And Mean Time Between Failure (Mtbf)
Figure 17 - Functional Diagram Output Voltage Regulator Input Input Fuse Rectifier Power Output & & Converter Filter Input Filter Inrush Limiter (NTC) Output 115/230V Over- Auto DC-ok DC-ok Voltage Select Relay Contact Protection Rockwell Automation Publication 1606-RM055B-EN-P - February 2017... -
Page 14: Emc
(2) this device must accept any interference received, including interference that can cause undesired operation. (1) For information only, not mandatory for EN 61000-6-3. (2) Tested with constant current loads, non-pulsing. Rockwell Automation Publication 1606-RM055B-EN-P - February 2017... -
Page 15: Application Notes
Back Feeding Loads Loads such as decelerating motors and inductors can feed voltage back to the power supply. This feature is also called return voltage immunity or resistance against Back- E.M.F. (Electro Magnetic Force). Rockwell Automation Publication 1606-RM055B-EN-P - February 2017... - Page 16 – Use separate mains systems for each power supply whenever it is possible. – It is desirable to set the output voltages of all units to the same value (± 100 mV) or leave it at the factory setting. Rockwell Automation Publication 1606-RM055B-EN-P - February 2017...
- Page 17 – 20 mF Max with an additional 2.5 A constant current load and – 10 mF max with an additional 5 A constant current load. Charging of Batteries Do not use the power supply to charge batteries. Rockwell Automation Publication 1606-RM055B-EN-P - February 2017...
- Page 18 24.2 °C (75.6 °F) Temperature rise 17.1K 14.5K (1) Load is placed outside the box. (2) In the middle of the right side of the power supply with a distance of 1 cm (0.39 in.). Rockwell Automation Publication 1606-RM055B-EN-P - February 2017...
-
Page 19: Specifications
120/ 230V AC Dimensions 39 x 124 x124 mm W x H x D (1.53 x 4.88 x 4.88) Weight 370 g/0.81 lb 70 °C (122…158 °F) for AC 100 V/ 200V mains (1) 50… Rockwell Automation Publication 1606-RM055B-EN-P - February 2017... -
Page 20: Environment
Allowed Output Allowable Output Current at 24V Current at 24V 5.0A 4.0A 3.1A 2.5A 2.0A a) AC 110-120/ 220-240V mains b) AC 100/ 200V mains 1.0A Ambient Temperature Altitude +70°C 2000 4000 6000m Rockwell Automation Publication 1606-RM055B-EN-P - February 2017... -
Page 21: Dielectric Strength
+ pole, the – pole or any other part of the output circuit be connected to the protective earth system. This helps to avoid situations in which a load starts unexpectedly or cannot be switched off when unnoticed earth faults occur. Rockwell Automation Publication 1606-RM055B-EN-P - February 2017... -
Page 22: Standards Compliance And Certifications
U.S.A. (UL 60950-1) and Canada (C22.2 No. 60950); File: E 168663. RCM Declaration of Conformity C-tick is for products intended for sale and use within the Australian market. EAC is for products intended for sale and use within the Russian market. Rockwell Automation Publication 1606-RM055B-EN-P - February 2017... -
Page 23: Approximate Dimensions And Weight
(1) The DIN rail height must be added to the unit depth to calculate the total required installation depth. Dimensions are in mm (in). Figure 25 - Front View (1.54) (4.92) Figure 26 - Side View 128.95 (5.08) Rockwell Automation Publication 1606-RM055B-EN-P - February 2017... - Page 24 Basic Power Supply 5 A Notes: Rockwell Automation Publication 1606-RM055B-EN-P - February 2017...
- Page 26 Rockwell Otomasyon Ticaret A.Ş., Kar Plaza İş Merkezi E Blok Kat:6 34752 İçerenköy, İstanbul, Tel: +90 (216) 5698400 Publication 1606-RM055B-EN-P —February 2017 Supersedes Publication 1606-RM055A-EN-P— December 2016 Copyright © 2017 Rockwell Automation, Inc. All rights reserved. Printed in the U.S.A.
