At+Qiopen Open A Socket Service - Quectel BG95 Series Application Note

AT+QIDEACT=<contextID>
Maximum Response Time
Characteristics
Parameter
<contextID> Integer type. Context ID. Range: 1–16.

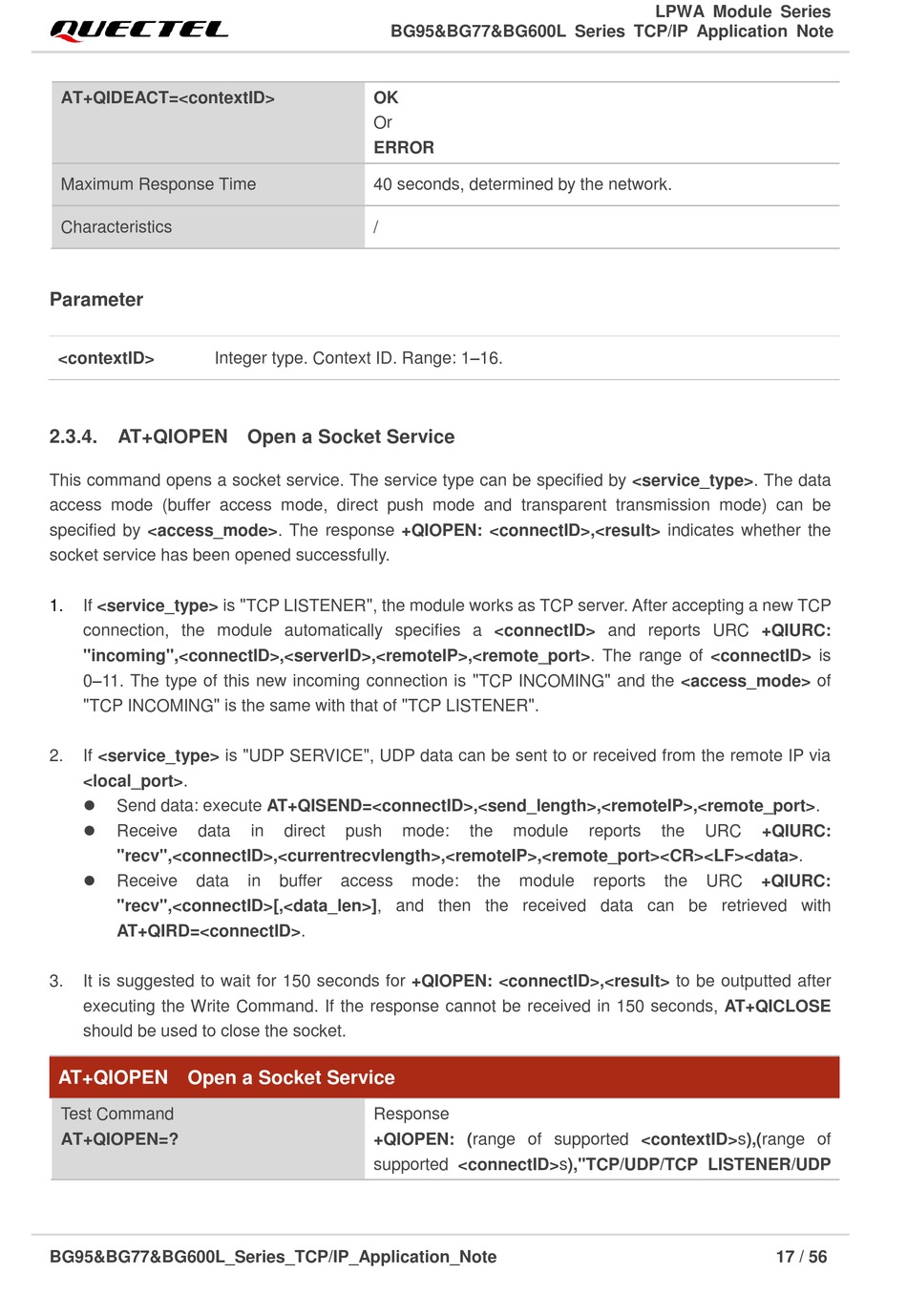

2.3.4. AT+QIOPEN Open a Socket Service

This command opens a socket service. The service type can be specified by <service_type>. The data
access mode (buffer access mode, direct push mode and transparent transmission mode) can be
specified by <access_mode>. The response +QIOPEN: <connectID>,<result> indicates whether the
socket service has been opened successfully.
If <service_type> is " TCP LISTENER " , the module works as TCP server. After accepting a new TCP
1.
connection, the module automatically specifies a <connectID> and reports URC +QIURC:
"incoming",<connectID>,<serverID>,<remoteIP>,<remote_port>. The range of <connectID> is
0–11. The type of this new incoming connection is " TCP INCOMING " and the <access_mode> of
" TCP INCOMING " is the same with that of " TCP LISTENER " .
2. If <service_type> is "UDP SERVICE", UDP data can be sent to or received from the remote IP via
<local_port>.

Send data: execute AT+QISEND=<connectID>,<send_length>,<remoteIP>,<remote_port>.

Receive data
"recv",<connectID>,<currentrecvlength>,<remoteIP>,<remote_port><CR><LF><data>.

Receive data
"recv",<connectID>[,<data_len>], and then the received data can be retrieved with
AT+QIRD=<connectID>.
3. It is suggested to wait for 150 seconds for +QIOPEN: <connectID>,<result> to be outputted after
executing the Write Command. If the response cannot be received in 150 seconds, AT+QICLOSE
should be used to close the socket.
AT+QIOPEN Open a Socket Service
Test Command
AT+QIOPEN=?
BG95&BG77&BG600L_Series_TCP/IP_Application_Note
BG95&BG77&BG600L Series TCP/IP Application Note
OK
Or
ERROR
40 seconds, determined by the network.
/
in direct push mode:
in buffer access mode:
Response
+QIOPEN: (range of supported <contextID>s),(range of
supported <connectID>s),"TCP/UDP/TCP LISTENER/UDP
the module reports
the module reports
LPWA Module Series
the URC +QIURC:
the URC +QIURC:
17 / 56
