HD-PS401
4x1 4K60 4:4:4 HDR Presentation System
The
HD-PS401
provides a 4K60 4:4:4 AV presentation system with
enhanced HDMI® video switching and audio presentation capabilities for
areas such as conference rooms and classrooms. The HD-PS401 includes
four HDMI inputs and one mirrored HDMI and DM Lite® output.
In the Box
1
HD-PS401 AV Presentation System
Additional Items
1
Power Cord, 6 ft 7 in. (2 m) (2001134)
4
Joining Plate (2056313)
4
Connector, 3-Pin (2003575)
2
Connector, 5-Pin (2003577)
8
Joining Plate Screw, 8-32 x 5/16 in., Undercut Flat Head,
Phillips, Black (2056985)
4
Anchor, Wall, Plastic, Self Drill, 8 x 1-5/8 in., Off-White
(2057959)
4
Screw, 8-15 x 3/4 in., Type A, Flat Head, Phillips, Black
(2057958)

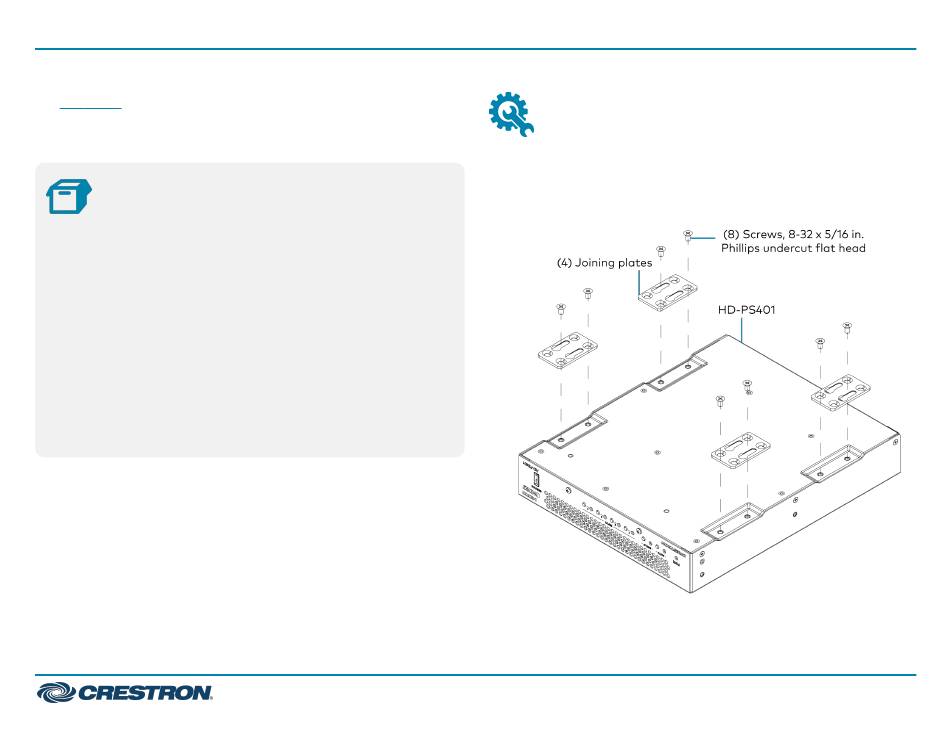

Install the Device
1. Place the device upside down on a flat surface.
2. Attach the four included joining plates to the device using the eight
included 8-32 x 5/16 in. Phillips undercut flat head screws (two screws
for each joining plate).
Quick Start
1
Advertisement
Table of Contents
Related Manuals for Crestron HD-PS401
Summary of Contents for Crestron HD-PS401
- Page 1 HDMI® video switching and audio presentation capabilities for Install the Device areas such as conference rooms and classrooms. The HD-PS401 includes four HDMI inputs and one mirrored HDMI and DM Lite® output. 1. Place the device upside down on a flat surface.
- Page 2 Quick Start HD-PS401 4x1 4K60 4:4:4 HDR Presentation System 3. Using the four included anchors and four included 8-15 x 3/4 in. Phillips flat head mounting screws, mount the device onto a flat surface such as a wall.
-
Page 3: Quick Start
HD-PS401 Quick Start 4x1 4K60 4:4:4 HDR Presentation System Connect the Device Connect the front and rear panels of the device as required for the application. Front Panel Connection... - Page 4 Quick Start HD-PS401 4x1 4K60 4:4:4 HDR Presentation System Rear Panel Connections...
- Page 5 HD-RX-4K-410-C-E, HD-RX-4K-410-C-E-SW4, HD-RX-4K-510-C-E, Shield/ground Common ground and HD-RX-4K-510-C-E-SW4) is provided for the extension of audio R+ Out and video signals only. The HD-PS401 web interface does not support configuration of connected HD-RX-201-C-E receivers or Open DMPS Lite switchers. Those devices require a separate LAN connection and must be configured using the web interface of each device.
-
Page 6: Upgrade The Firmware
XiO Cloud User Guide. NOTE: By default, the IP address of an HD-PS401 device is assigned by Select the device from the cloud interface to view its status and a DHCP server on the network. If a DHCP server does not exist on the settings. - Page 7 Quick Start HD-PS401 4x1 4K60 4:4:4 HDR Presentation System Observe the LED Indicators Visit the Product Page Refer to the following table for information about the LED indicators on Scan the QR code to visit the product page. the device. HD-PS401...
- Page 8 Certain Crestron products contain open source software. For specific information, visit www.crestron.com/opensource. Crestron, the Crestron logo, DM Lite, DMPS Lite, and XiO Cloud are either trademarks or registered trademarks of Crestron Electronics, Inc. in the United States and/or other countries. HDBaseT and the HDBaseT Alliance logo are either trademarks or registered trademarks of the HDBaseT Alliance in the United States and/or other countries.
