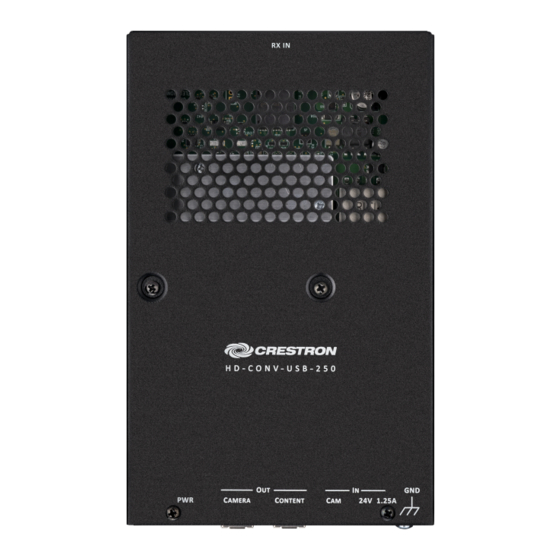

HD-CONV-USB-250
HDBaseT® to USB 3.0 Converter
The HD-CONV-USB-250 provides an HDBaseT™ connection for a CCS-UC-1-X Crestron Mercury® Tabletop Conference System in a Crestron Flex UC video conference system.
Check the Box
Item
HD-CONV-USB-250
Cable, USB 3.0, A - B, 3 ft (1 m) (P/N 2052534)
Power Pack, 24 VDC, 1.25 A, 100-240 VDC (P/N 2045870)
Install the Device
The HD-CONV-USB-250 can be mounted onto a surface such as a table with the integrated mounting brackets or simply placed on a flat surface.
Connect the Device

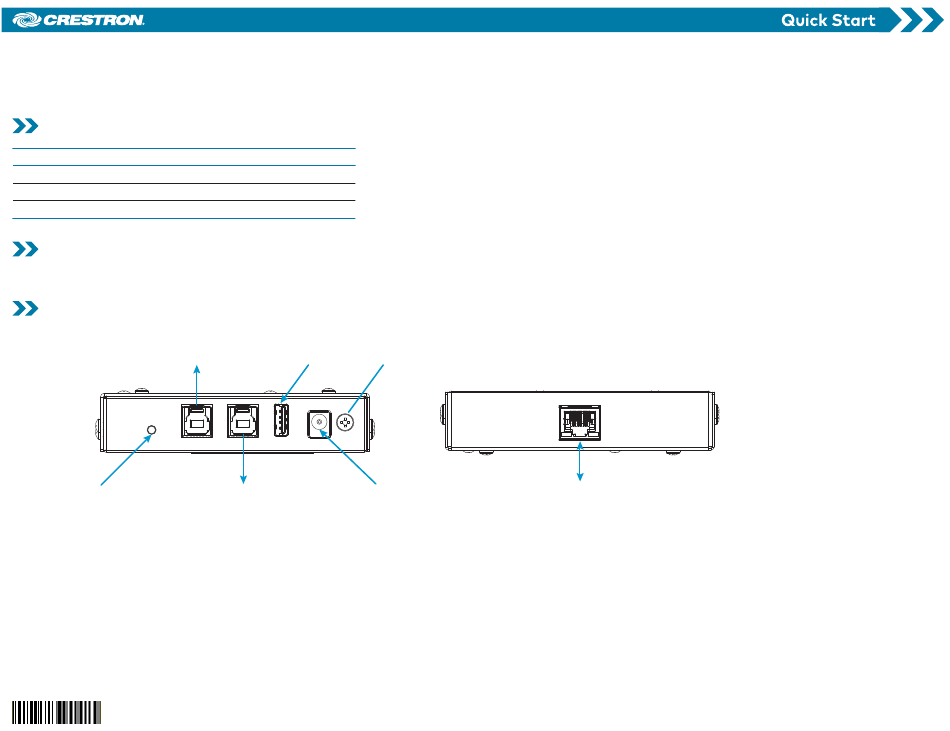

Make the necessary connections as called out in the following diagram.
CAMERA OUT:
To UC-ENGINE
PWR:
Green LED indicates power supplied
from included power pack
Qty
1
2
1
CAM IN:
From USB 3.0 camera
Ground
CONTENT OUT:
24V 1.25A:
To UC-ENGINE
From included
power pack
HDBT:
From HDBaseT source
