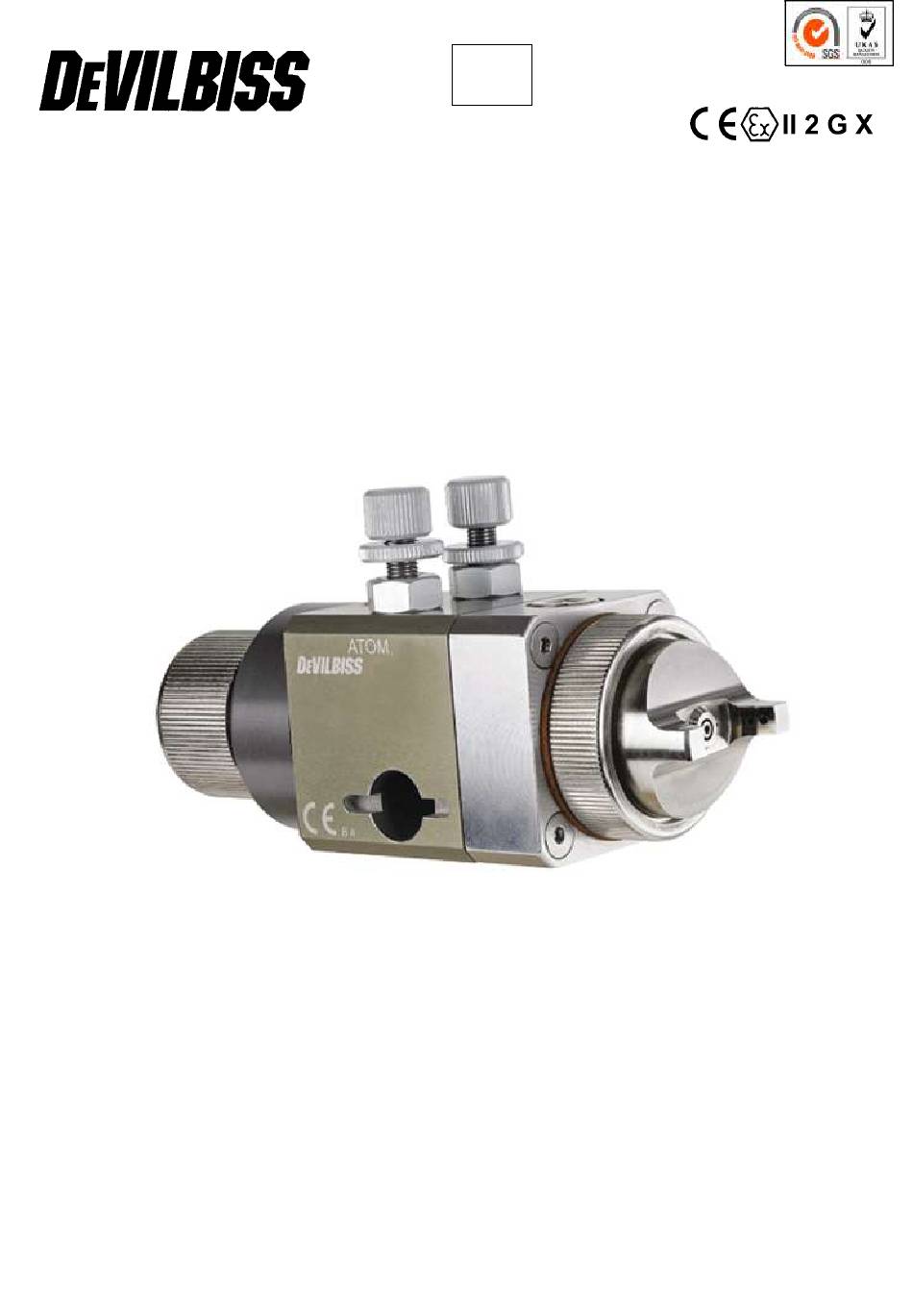

- Page 1 SB-E-2-VPR ISS.08 Operation Manual Viper – Automatic Spray Gun...
-
Page 2: Materials Of Construction

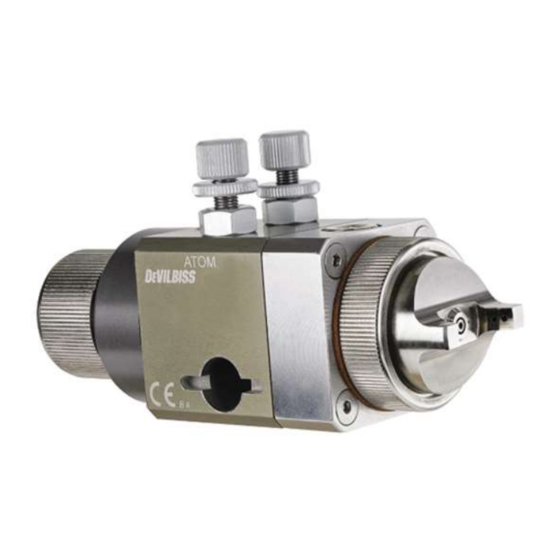

Operation Manual Viper- Automatic Spraygun Important Read and follow all instructions and Safety Precautions before using this equipment CHARACTERISTICS Automatic Spray gun for enamel application designed to give you the optimal production performance. This spray gun is answering the needs of the sanitary application, table ware and decorative application, pavement, tiles, electric domestic appliances and all other ceramic activities. -
Page 3: Safety Warnings
SAFETY WARNINGS Fire and explosion Solvents and coating materials can be highly flammable or combustible when sprayed. ALWAYS refer to the coating material supplier’s instructions and COSHH sheets before using this equipment. Users must comply with all local and national codes of practice and insurance company requirements governing ventilation, fire precautions, operation and house-keeping of working areas. - Page 4 PATENTED – FR2872717 © 2015 Carlisle Fluid Technologies, dba Finishing Brands UK Ltd.
-
Page 5: List Of Spare Parts
LIST OF SPARE PARTS For the arrangement of the parts, refer to the exploded view. Description SPA-36 Retaining ring SPA-17-K5 Gasket Polyurethane kit of 5 “Conventional” air cap for tips Ø 1.8 & 2.0 SPA-100-E63 “Conventional” air cap for tips Ø 2.2 & 2.8 SPA-100-E70 “Transtech”... -
Page 6: Possible Combinations
POSSIBLE COMBINATIONS Fluid Tip Needle Air Cap Point Stainless Point Point Hardenerd Point Carbide Stainless E63 E70 E31 Ø Carbide Steel Steel Steel Steel SPA-250-XX SPA-254-XX SPA-250H-XX SPA-350-XX SPA-351-XX SPA-352 SPA-351-XX SPA-100-XXX 0.85 MODEL PART NUMBER VPR - E70 - 28 C C = Tip/Needle in carbide, H= Tip/Needle Stainless Steel Tip Ø... -
Page 7: Preventive Maintenance
STARTING-UP 1. Turn the needle adjusting knob (25) clockwise until the needle is fully closed. 2. Turn the “Fan” and “Atom air valves counter-clockwise to be full open. 3. Set the air pressure at the air regulator to achieve recommended pressures above. 4. - Page 8 FIG 1 FIG 2 PACKING Unscrew the 4 screws to disassemble the gun head. Remove the packing bellows seal. Clean or replace if the packing is damaged. FAN & ATOM AIR VALVE (13) Before assembling, check the air valve is in fully open position by unscrewing it counter-clockwise.
-
Page 9: Ec Declaration Of Conformity
We, Finishing Brands UK Limited, Ringwood Rd, Bournemouth, Dorset, BH11 9LH, UK, as the manufacturer of the Spray gun model VIPER, declare, under our sole responsibility that the equipment to which this document relates is in conformity with the following standards or other normative documents: BS EN ISO 12100:2010, BS EN 1953: 2013;... - Page 10 Carlisle Fluid Technologies, dba Finishing Brands UK Limited, Ringwood Road, Bournemouth, BH11 9LH, England. Tel.No. 01202 571111 Fax No. 01202 581940 Website address http://www.finishingbrands.eu Registered Office: Finishing Brands UK Limited, 400, Capability Green, Luton, Bedfordshire, LU1 3AE. Registered in England: No. 07656273. Vat.
