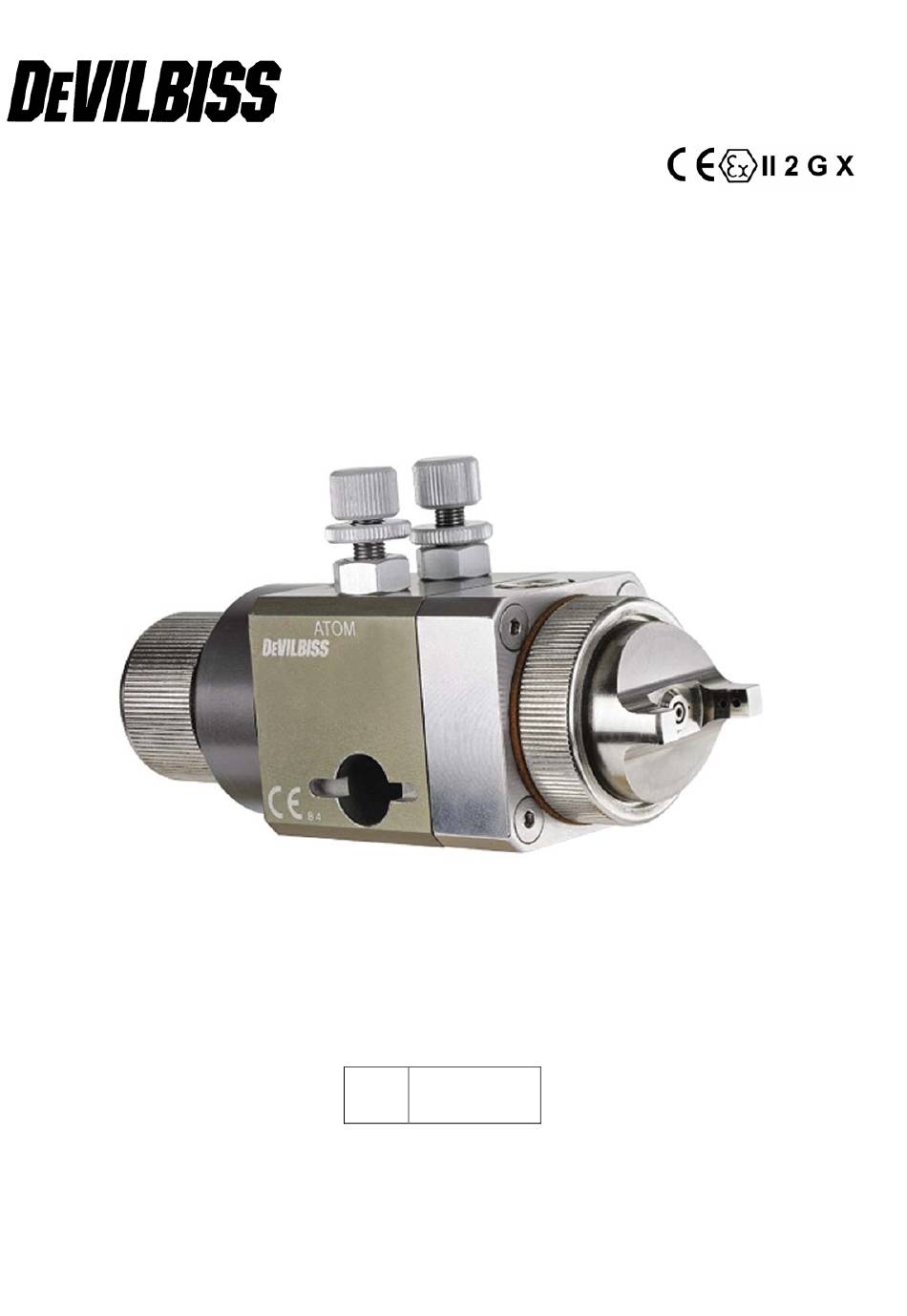

- Page 1 SB-E-2-CBA1 ISS.02 Operation Manual Viper – Automatic Spray Gun P 1 – 12...
- Page 2 Operation Manual Viper- Automatic Spraygun Important Read and follow all instructions and Safety Precautions before using this equipment CHARACTERISTICS Automatic Spray gun for enamel application designed to give you the optimal production performance. This spray gun is answering the needs of the sanitary application, table ware and decorative application, pavement, tiles, electric domestic appliances and all others ceramic activities.
-
Page 3: Safety Warnings
SAFETY WARNINGS Fire and explosion Solvents and coating materials can be highly flammable or combustible when sprayed. ALWAYS refer to the coating material supplier’s instructions and COSHH sheets before using this equipment. Users must comply with all local and national codes of practice and insurance company requirements governing ventilation, fire precautions, operation and house-keeping of working areas. -
Page 5: List Of Spare Parts
LIST OF SPARE PARTS For the arrangement of the parts, refer the exploded view Description SPA-36 Retaining ring SPA-17-K5 Gasket Polyurethane kit of 5 SPA-100-E63 “Conventional” air cap for tips Ø 1.8 & 2.0 SPA-100-E70 “Conventional” air cap for tips Ø 2.2 & 2.8 SPA-100-E31 “Transtech”... -
Page 6: Possible Combinations
POSSIBLE COMBINATIONS Fluid Tip Needle Air Cap Point Point Hardener Carbide Point Carbide Ø Steel Steel SPA-250-XX SPA-254-XX SPA-350-XX SPA-351-XX SPA-352 SPA-100-XXX Tip SPA-250H-xx (Size 12 to 2,0 mm) and needle SPA-351-DEH in stainless steel 303 will be supplied only in option. MODEL PART NUMBER VPR-E70-28 C C = Tip/Needle in carbide... -
Page 7: Preventive Maintenance
STARTING-UP 1. Turn the needle adjusting knob clockwise until it. 2. Turn the “Fan” and “Atom air valves counter-clockwise to be full open. 3. Set the air pressure at the air regulator to achieve recommended pressures above. 4. Turn the adjusting knob counter clockwise to obtain the desired fluid flow. 5. - Page 8 FIG 1 FIG 2 PACKING Unscrew the 4 screws to disassemble the gun head. Remove the packing bellows seal. Clean or replace if the packing is damaged. FAN & ATOM AIR VALVE (13) Before assembling, check the air valve is in fully open position by unscrewing it counter-clockwise.
-
Page 9: Ec Declaration Of Conformity
We, ITW Finishing UK, Ringwood Rd, Bournemouth, Dorset, BH11 9LH, UK, as the manufacturer of the Spray gun model VIPER , declare, under our sole responsibility that the equipment to which this document relates is in conformity with the following standards or other normative documents: BS EN 292-1 PARTS 1 &... - Page 10 © 2007 ITW Finishing Systems and Products...
- Page 11 © 2007 ITW Finishing Systems and Products...
- Page 12 ITW Finishing Systems and Products ITW Oberflächentechnik GmbH & Co. Ringwood Road, Bournemouth, Justus-von-Liebig-Straße 31 BH11 9LH, 63128 Dietzenbach England. Tel (060 74) 403-1 Tel. No. (01202) 571111 Telefax: (060 74) 403300 Telefax No. (01202) 581940, Website address Website address http://www.itw-finishing.de http://www.itweuropeanfinishing.com ITW Automotive Finishing UK...
