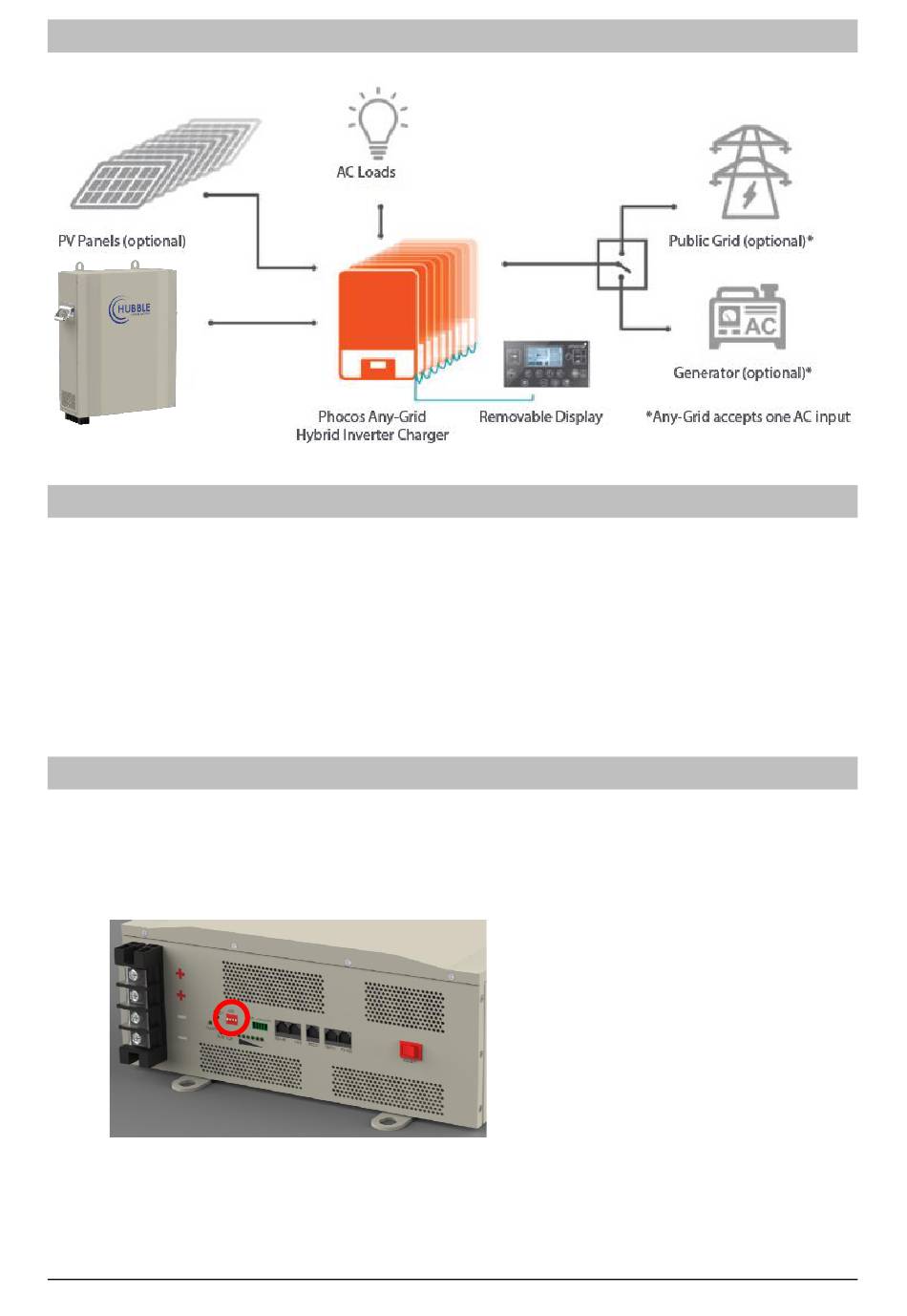

System Overview

3.0
Hubble battery unit(s)

Battery Sizing

4.0
To maintain the full battery warranty, each battery unit should be sized not to exceed 100 Adc continuous charge /
discharge current and 125 Adc peak for up to 100 ms. It is thus strongly recommended to use at least 1.5 battery
units in parallel to deliver both sufficient continuous current and peak current for a single PSW-H-5KW at full power.
Per PSW-H-6.5KW-120/48V use at least 2 battery units. Use at least 1.8 AM-4 battery units per PSW-H-3KW unit. Of
course, when using a single PSW-H at full power, this means using at least two battery units. Using fewer batteries per
inverter may void your Hubble battery warranty and disrupt service by the battery automatically disconnecting from
the Any-Grid(s).
The batteries must be wired in parallel to form a single large battery bank when using multiple Any-Grids. All Any-
Grids must be connected to a single battery array made up of a maximum of 15 battery units.

Battery Communication Cable Installation and Powering On

5.0
CAUTION: Before connecting the battery units to the Any-Grid(s), please follow the installation instructions in
this chapter step by step. The battery, AC input source, AC output loads and PV input must remain
disconnected until instructed otherwise.
Ensure the battery units are all turned off.
1.
Set the address DIP switches on the battery units according to the battery manual (location circled below):
2.
Ensure the battery units are still turned off. Connect the Any-Grid(s) to the battery power (positive and
3.
negative) terminals with the correct polarity.
CAUTION: If the correct polarity of the battery is not observed, the Any-Grid and the battery may be
damaged, this is not covered by warranty.
Plug the RJ-12 end of the battery communication cable into the Cloudlink device's "S" port and the RJ-45 side
