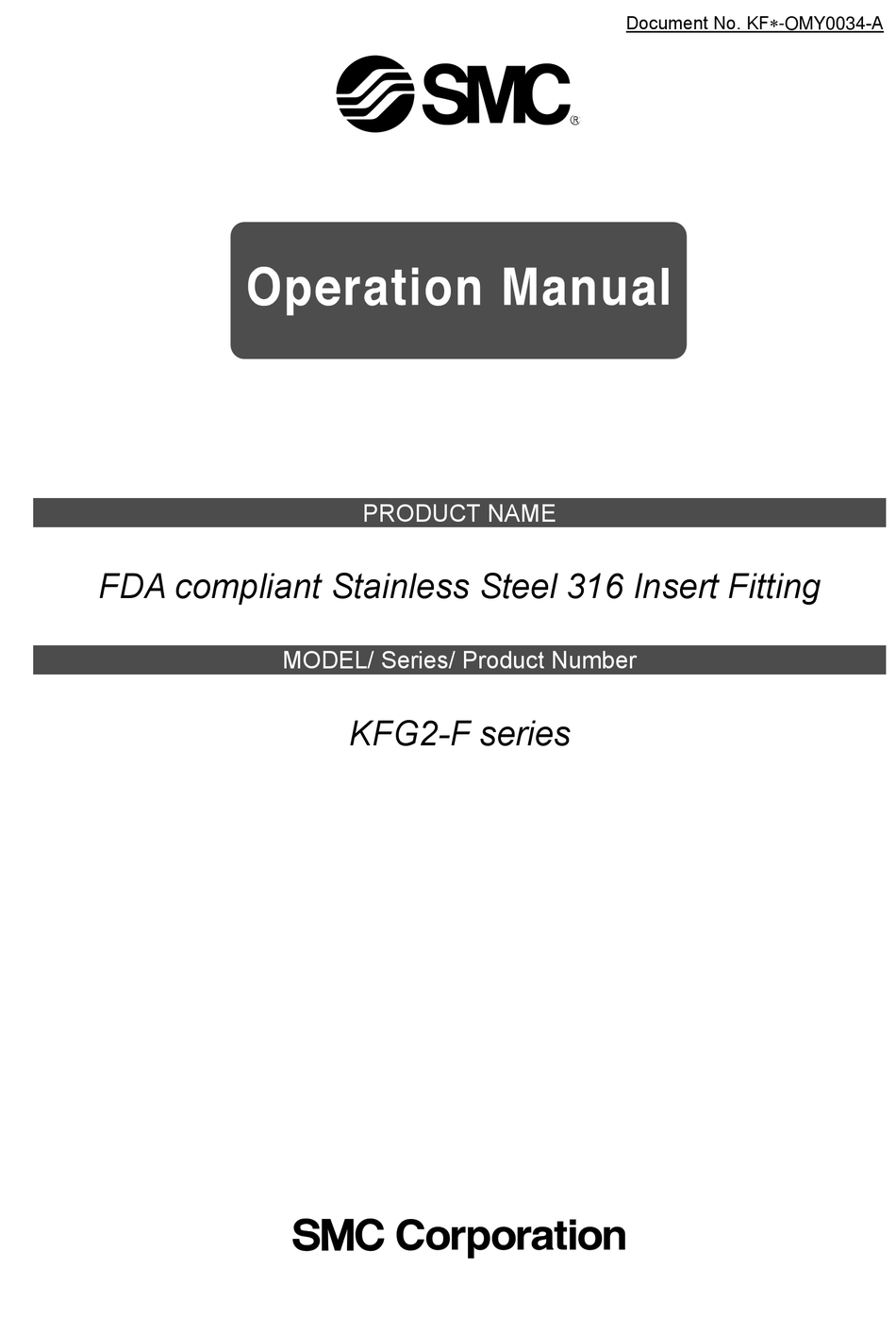

- Page 1 Document No. KF-OMY0034-A PRODUCT NAME FDA compliant Stainless Steel 316 Insert Fitting MODEL/ Series/ Product Number KFG2-F series...
- Page 2 Contents 1. Safety Instructions 3 to 4 2. Specific Product Precautions 5 to 9 3. Specifications 10 to 11 4. Troubleshooting 5. Construction - 2 -...
- Page 3 FDA compliant KFG2 Series Stainless Steel 316 Insert Fitting Safety Instructions These safety instructions are intended to prevent hazardous situations and/or equipment damage. These instructions indicate the level of potential hazard with the labels of “Caution,” “Warning” or “Danger.” They are all important notes for safety and must be followed in addition to International Standards (ISO/IEC) , and other safety regulations.
- Page 4 FDA compliant KFG2 Series Stainless Steel 316 Insert Fitting Safety Instructions Caution 1. The product is provided for use in manufacturing industries. The product herein described is basically provided for peaceful use in manufacturing industries. If considering using the product in other industries, consult SMC beforehand and exchange specifications or a contract if necessary.
- Page 5 2. Specific Product Precautions (1) Design/Selection Warning (3) Do not use fluids other than listed on the specifications. (1) Check the specifications. Applicable fluids are air, water and steam. Please The product in this catalog is designed to be used consult with SMC if using other fluids.
- Page 6 2. Specific Product Precautions (2) Mounting/ Piping (3) Check the model, type and size before installation. Also, confirm that there are no scratches, gouges or cracks on the product. (4) When connecting the tubing, take pressure or possible changes to the tubing length into account, and allow a sufficient margin.
- Page 7 2. Specific Product Precautions (3) droplet separator. Cleaning Ensure that fluid ambient temperature are within the specified range. Warning If the fluid temperature is 5 C or less, the moisture in the circuit could freeze, causing (1) Check the connection before cleaning. damage to the seals and leading to equipment Clean the fittings whilst the tubes connected and malfunction.
- Page 8 3. Specific Product Precautions (4) occurs, remove the tube, cut off the (10)The table below shows the standards that connecting part of the tube, and connect to parts comply with. Please refer for the the piping again. verification of the operating environment. Check if the tube dimension accuracy is within the recommended tolerance.
- Page 9 13.6 to 14.0 G3/8 17.1 to 17.5 G1/2 21.4 to 21.8 Precautions for use with non-SMC Caution (1) When using the KFG2-F series with tubing other than those from SMC, the products are not subject to warranty. - 9 -...
- Page 10 3. Specifications Specifications Fluid Note1) Note2) Note3) Air, Water , Steam Operating pressure range Note4) -100 kPa to 1 MPa Note5) Proof pressure 3 MPa C (No freezing) Note 5) -65 to 260 Ambient and fluid temperature [-5 to 150 C for swivel elbow and G thread] Lubricant NSF H1 grease...
- Page 11 Table of applicable tubings (inch size) Tubing O.D. x I.D. (inch) Series Tubing material ø1/8"xø0.086" ø1/4"xø5/32" ø3/8"xø1/4" ø1/2"xø3/8" ø5/32"xø0.098" ø5/16"xø0.236" (ø4xø2.5) (ø8xø6) (ø3.18xø2.18) (ø6.35xø3.95) (ø9.53xø6.35) (ø12.7xø9.53) ● ● ● ● ● ● TH/TIH ● ● ● ● ● TL/TIL Super PFA ●...
- Page 12 5. Construction Connection thread: R,NPT Connection thread: G Male connector Male elbow Swivel elbow Description Material Remarks Union nut Stainless steel 316 NSF H1 grease Half union body Stainless steel 316 Elbow union body Stainless steel 316 Swivel elbow body Stainless steel 316 NSF H1 grease Stud...
- Page 13 Revision history A: Cleaning added 4-14-1, Sotokanda, Chiyoda-ku, Tokyo 101-0021 JAPAN Tel: + 81 3 5207 8249 Fax: +81 3 5298 5362 http://www.smcworld.com NOTE: Specifications are subject to change without prior notice and any obligation on the part of the manufacturer. ©...
