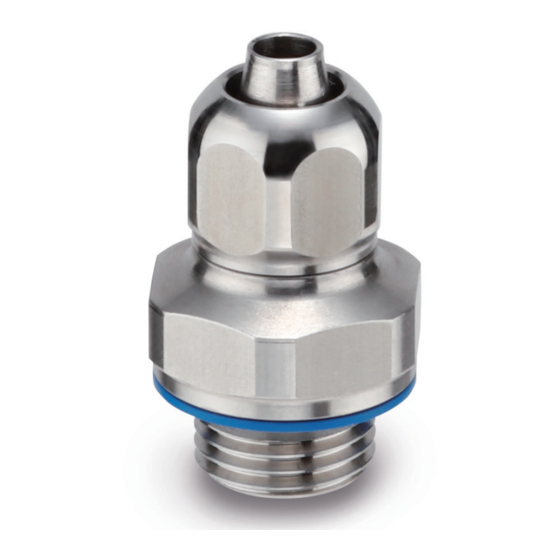

- Page 1 Doc No. KF∗-OMY0077 PRODUCT NAME Clean Design Fittings MODEL/ Series/ Product Number KFG2H*-C series...
-
Page 2: Table Of Contents
Contents 1. Safety Instructions 2. Specific Product Precautions 3. Specifications 4. Troubleshooting 5. Construction - 2 -... -
Page 3: Safety Instructions
Clean Design Fittings Safety Instructions These safety instructions are intended to prevent hazardous situations and/or equipment damage. These instructions indicate the level of potential hazard with the labels of “Caution,” “Warning” or “Danger.” They are all important notes for safety and must be followed in addition to International Standards (ISO/IEC) , and other safety regulations. - Page 4 Clean Design Fittings Safety Instructions Caution 1. The product is provided for use in manufacturing industries. The product herein described is basically provided for peaceful use in manufacturing industries. If considering using the product in other industries, consult SMC beforehand and exchange specifications or a contract if necessary.
-
Page 5: Specific Product Precautions
2. Specific Product Precautions (1) (4) When it is used with water, the fittings or Design/Selection tubing may be damaged depending on the surge pressure. Warning (5) Surge pressure must be under the maximum operating pressure. If the surge pressure (1) Check the specifications. - Page 6 2. Specific Product Precautions (2) Mounting/ Piping Union nut tightening tool (5) Tubing, with the exception of coiled tubing, requires stationary installation. Do not use standard tubing (non-coiled) in applications where tubing is required to travel inside the flexible protection tube. Tubing that travels may sustain abrasion, extension, or severance due to tensile force, or may result in removal of tubing from fitting.
- Page 7 2. Specific Product Precautions (3) Cleaning (3) Ensure that the fluid and ambient temperature are within the specified range. Warning If the fluid temperature is 5 C or less, the moisture in the circuit could freeze, causing damage to the (1) Check the connection before cleaning.
- Page 8 2. Specific Product Precautions (4) Maintenance Connection Thread Tightening Method Warning Caution (4) Removal of equipment and supply/exhaust of compressed air (1) First, tighten the fitting by hand, then use a When components are removed, first confirm that wrench appropriate for the hexagon flats of the measures are in place to prevent workpieces from body to tighten it.For a tightening torque guide, dropping, run-away equipment, etc.
-
Page 9: Specifications
3. Specifications Note1) Note3) Fluid Air, Water ,Steam ） Note2) Note 4 Operating pressure range -100 kPa to 1 MPa Note 4) Ambient and fluid temperature C (No freezing) -5 to 150 Note 1) DI water is not recommended.DI water affects the materials used in the fitting,which may lead to a deterioration of water quality. - Page 10 Revision history 4-14-1, Sotokanda, Chiyoda-ku, Tokyo 101-0021 JAPAN Tel: + 81 3 5207 8249 Fax: +81 3 5298 5362 https://www.smcworld.com Note: Specifications are subject to change without prior notice and any obligation on the part of the manufacturer. © 2019 SMC Corporation All Rights Reserved - 10 -...
