Summary of Contents for Lacros AMBLING A200

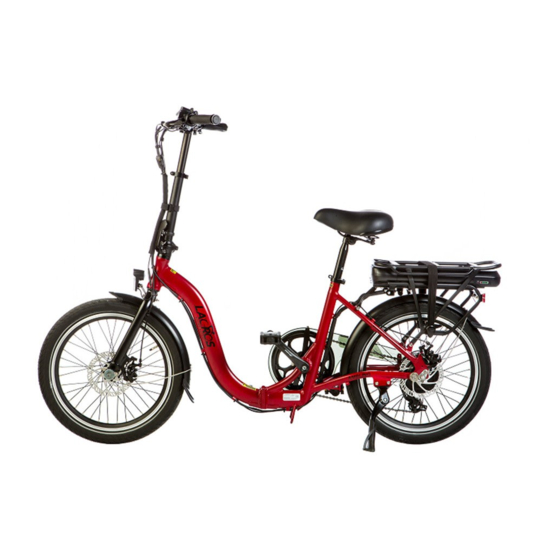

- Page 1 CE ORIGINAL MANUAL LACROS AMBLING A200(XL)/A400(XL) VERSION CE 1.4 EN LACROS AMBLING A200 /A400 (XL) (XL) ELECTRIC FOLDING BIKE...
-
Page 2: For Your Safety
3. Ride the first rides preferably without electrical support to get familiar with your bike. After this you can start with a low setting (electrical assistance). 4. The LACROS bicycles have been tested by our employees. If you have any doubts about the bicycle and/or the electrical installation of the bicycle, we request that you contact us immediately. -
Page 3: Quality Standard
CE ORIGINAL MANUAL LACROS AMBLING A200(XL)/A400(XL) VERSION CE 1.4 EN Quality standard Your product is an electric folding bicycle. The bike is foldable at 2 locations, on the stem and halfway through the frame. The bike is equipped with pedal assistance which is powered by an external battery. The battery can be located in different locations, such as on the luggage carrier or in the frame. -
Page 4: Table Of Contents
CE ORIGINAL MANUAL LACROS AMBLING A200(XL)/A400(XL) VERSION CE 1.4 EN Turn on the display ..........9 Index Switch bicycle LED lights on and off ....9 Thumb lever Walk Assist ........9 For your safety ............ 2 Switch between the 9 levels of motor support ... 9 Quality standard .......... -
Page 5: Unfolding The Bicycle
CE ORIGINAL MANUAL LACROS AMBLING A200(XL)/A400(XL) VERSION CE 1.4 EN 1. Unfolding the bicycle Magnetic lock Push the wheels apart to release them from their magnetic lock. A = Metal locking plate B = Magnet C = Direction in which you can lock... -
Page 6: Folding The Bicycle
CE ORIGINAL MANUAL LACROS AMBLING A200(XL)/A400(XL) VERSION CE 1.4 EN 2. Folding the bicycle Folding the pedals Fold the kickstand of the bicycle. Fold the pedals by pushing the entire pedal in the direction of the bicycle and then fold it up or down. -
Page 7: How To Operate The Bicycle
CE ORIGINAL MANUAL LACROS AMBLING A200(XL)/A400(XL) VERSION CE 1.4 EN 3. How to operate the bicycle Switch on the battery The battery is located on the luggage rack with the Scamper. Switch on the electrical system with the button on the left side of the battery (B). -
Page 8: Switch Between The 9 Levels Of Motor Support
CE ORIGINAL MANUAL LACROS AMBLING A200(XL)/A400(XL) VERSION CE 1.4 EN Switch between the 9 levels of motor support The electrical motor support has 9 levels. The active setting is displayed on the top left of the display. You can increase or decrease the support by using the (+) and (-) buttons. -
Page 9: Bigstone-Display
CE ORIGINAL MANUAL LACROS AMBLING A200(XL)/A400(XL) VERSION CE 1.4 EN ▪ Bigstone-display Turn on the display Press the ”M” button (1) on the left of the display to activate the bicycle's electrical circuit. (Note that the battery is already turned on) A menu will now appear on the display, the electrical... -
Page 10: Usb-Input Display
CE ORIGINAL MANUAL LACROS AMBLING A200(XL)/A400(XL) VERSION CE 1.4 EN USB-input display Below the display you will find a USB-port (A) where you can, for example, charge your telephone or navigation while cycling. This charging only works when the display is on. -
Page 11: Battery And Charging
Charge recommendation • Always recharge the battery with the Lacros charger supplied with the bike. Do not use any other charger. • The first 2 recharges of a new bicycle must be more than 60%. To realize this, wait the first 2 times before recharging, until the battery indicator on the display has fallen below 40%. -
Page 12: How To Charge The Battery
CE ORIGINAL MANUAL LACROS AMBLING A200(XL)/A400(XL) VERSION CE 1.4 EN How to charge the battery The battery has one charging point (A) on the right side of the battery. It is recommended to first connect the charger to the battery and then plug the 220V plug into the socket. -
Page 13: Safety Rules
CE ORIGINAL MANUAL LACROS AMBLING A200(XL)/A400(XL) VERSION CE 1.4 EN 6. Safety rules • Read carefully the manual supplied with your bicycle before using it for the first time. • Strictly adhere to the traffic rules. • Never disassemble the bicycle yourself. If replacement of a part is necessary, contact your dealer or Shinga B.V. -
Page 14: Legal Requirements
CE ORIGINAL MANUAL LACROS AMBLING A200(XL)/A400(XL) VERSION CE 1.4 EN 7. Legal requirements According to European legislation, the vehicle described is a bicycle because the vehicle complies with the following rules: • From 6 Km/h, the support is only active when the user is pedaling. -
Page 15: Technical Specifications
CE ORIGINAL MANUAL LACROS AMBLING A200(XL)/A400(XL) VERSION CE 1.4 EN 8. Technical specifications • Dimensions unfolded (L x W x H): 165x60x108cm (20”) 170x60x108cm (24”) • Dimensions folded (L x W x H): 88x40x72cm (20”) 92x40x80cm (24”) • Frame: Aluminum •... -
Page 16: Ec Declaration
Product: Electric folding bike Model: JSL 039 Name: Lacros Ambling A200 (XL) / A400 (XL) THIS E-BIKE IS MANUFACTURED ACCORDING AND IN APPLIANCE WITH EUROPEAN UNION GUIDELINES AND REGULATIONS CONCERNING ELECTRIC BIKES WITH A MAXIMUM SPEED OF 25 KM/HOUR AND A MAXIMUM MOTOR OUTPUT OF 250W THE FOLLOWING “EN”...
