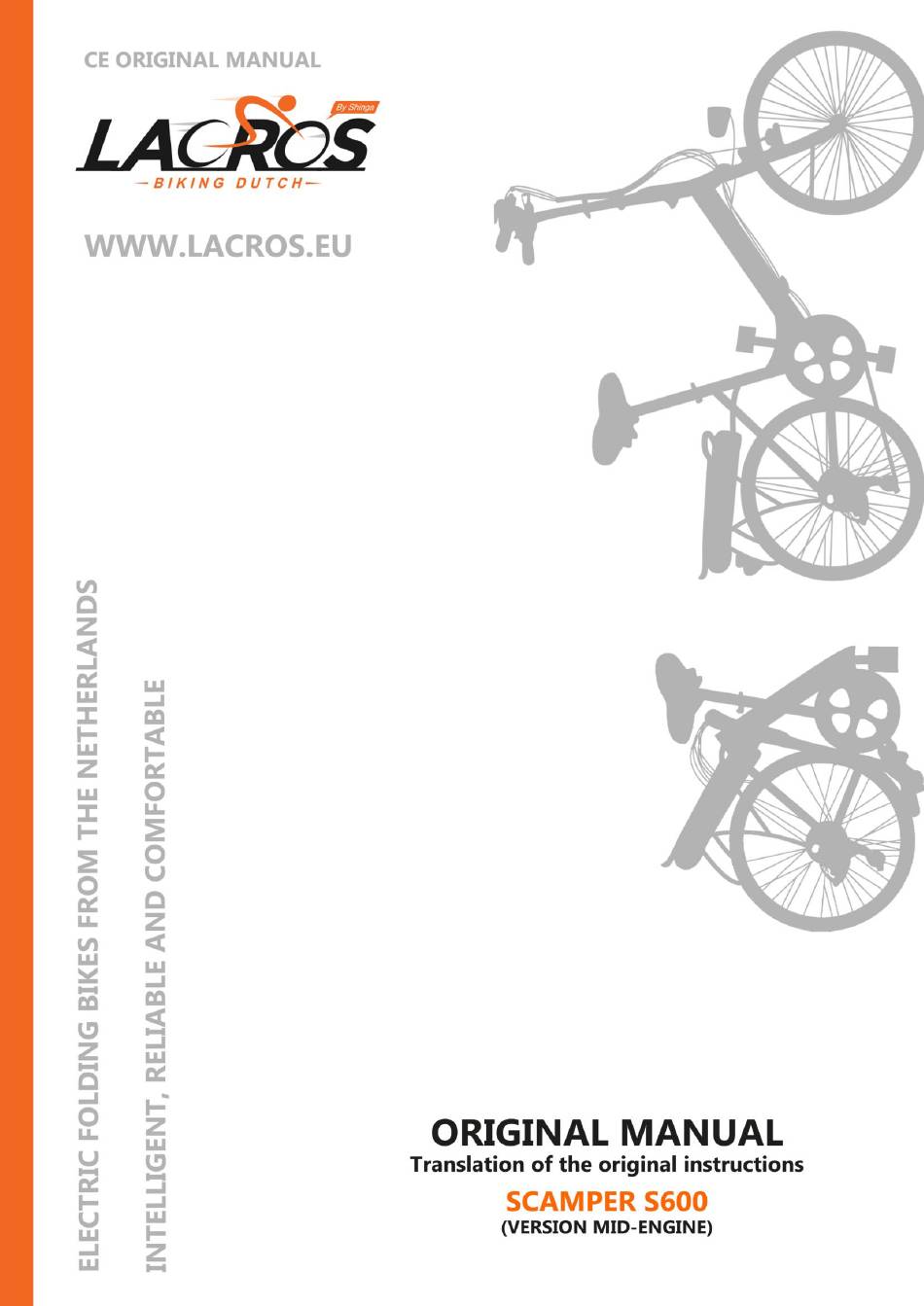

- Page 1 CE ORIGINAL MANUAL SCAMPER S600 VERSION CE 1.1 EN...
- Page 2 SAFETY COMES ALWAYS FIRST. READ THE FOLLOWING SAFETY ADVICES THOROUGLY REGARDING OUR (ELECTRICAL) BIKES: 1. LACROS E-BIKES ARE EQUIPPED WITH AN ELECTRIC MOTOR. IT IS OF GREAT CONCERN TO LEARN HOW TO USE THE E-BIKE PROPERLY AND DRIVE IN COMPLIANCE WITH THE LOCAL TRAFFIC REGULATIONS. WE ADVICE FIRST TO DO SOME PRACTICE RUNS ON EASY ROADS AND LESS TRAFFIC TO GET FAMILIAR WITH THE E-BIKE 2.
-
Page 3: Table Of Contents
VERSION CE 1.1 EN CONTENT Introduction ................................4 Safety tips ................................4 ! Safety regulations ! ............................. 5 Manual SCAMPER S600 ............................6 Important notice: ..............................6 Pre-ride checks: ..............................6 Easy start up: ................................. 7 General information about the E-Bike:........................ 11 Technical specifications: ............................ -
Page 4: Introduction
Introduction Thank you for choosing LACROS. This manual is written for convenient use and to safeguard the use of the E-Bike. After reading this manual you can get familiar about the functions and proper use of our E-bikes. The technical design of the E- Bikes are reliable, we use quality parts and together with our high standard of service, we can provide you with an E-bike which is easy to use, reliable, all together with a high range. -
Page 5: Safety Regulations
CE ORIGINAL MANUAL SCAMPER S600 VERSION CE 1.1 EN ! Safety regulations ! 1. To ensure safe driving, it is important to read the instructions. For any discrepancy in our manual, contact us. 2. Comply to local traffic regulations , do not ride with 2 or more persons, reduce speed during bad weather, wet road or down/uphill. -
Page 6: Manual Scamper S600
CE ORIGINAL MANUAL SCAMPER S600 VERSION CE 1.1 EN Manual SCAMPER S600 The Scamper is available in different specification. This manual apply to these specifications: Battery: PANASONIC 36V 11.6 AH or 36V 17 AH. Electric motor: 250W BAFANG mid-engine. -
Page 7: Easy Start Up
CE ORIGINAL MANUAL SCAMPER S600 VERSION CE 1.1 EN Easy start up: 1. Battery Power. Press button on the left side of the battery to switch battery On/Off (1). A green light indicates the battery is turned On. Pressing the button on top of the battery will indicate the battery status (2). - Page 8 CE ORIGINAL MANUAL SCAMPER S600 VERSION CE 1.1 EN 8. Gear. Increase gear setting by turning towards you. Decrease gear setting by turning away from you. Stop pedaling during gear changes. Gear setting is displayed in display. 9. Brakes. By using the handbrakes, you will interupt the (active) engine.
- Page 9 CE ORIGINAL MANUAL SCAMPER S600 VERSION CE 1.1 EN How to fold the Bike: 1. Remove key. The pedals can be fold by pulling the ring towards you with your fingers and fold upwards. Face left pedal to front to ease fold.
- Page 10 CE ORIGINAL MANUAL SCAMPER S600 VERSION CE 1.1 EN Charging/removing battery: Warning: Avoid damage from short circuit between the positive and negative poles of the charger and battery. Do not open charger to avoid damage and injury. Keep in mind that the charger can be warm during charging. Place the charger on a surface that can withstand heat.
-
Page 11: General Information About The E-Bike
CE ORIGINAL MANUAL SCAMPER S600 VERSION CE 1.1 EN General information about the E-Bike: 1. The E-Bike is mechanically the same as a normal bike. All moving parts, like cables, brakes, gear and axes can be maintained by using silicon or telfonspray. - Page 12 CE ORIGINAL MANUAL SCAMPER S600 VERSION CE 1.1 EN Important notice: Shinga is authorized to recycle waste batteries and to recycle them safely. If you plan to discard your battery because the battery has reached its lifetime, contact us.
-
Page 13: Technical Specifications
CE ORIGINAL MANUAL SCAMPER S600 VERSION CE 1.1 EN Technical specifications: 1. Size (LxWxH): 1650 x 550 x 1075 mm 2. Folding size (LxWxH): 870 x 440 x 710 mm 3. Frame: aluminium 4. Motor type: midmotor 5. Motor voltage: 36 V 6. -
Page 14: Eu Declaration Of Conformity Concerning Machines
MOLENDIJK ZUID 23B B1.NO.609 SOUTH JINXING STREET 5482 WZ SCHIJNDEL 5482 WZ SCHIJNDEL JINHUA, ZHEJIANG , CHINA Product: electric folding bike Model: JSL 039Z Name: Scamper S600 Serial number bike: ………………………………………………………………………………………………………………………………. Serial number motor: …………………………………………………………………………………………………………………………… Serialnumber battery: …………………………………………………………………………………………………………………………. THIS E-BIKE IS MANUFACTURED ACCORDING AND IN APPLIANCE WITH EUROPEAN UNION GUIDELINES AND REGULATIONS CONCERNING ELECTRIC BIKES WITH A MAXIMUM SPEED OF 25 KM/HOUR AND A MAXIMUM MOTOR OUTPUT OF 250W THE FOLLOWING “EN”...
