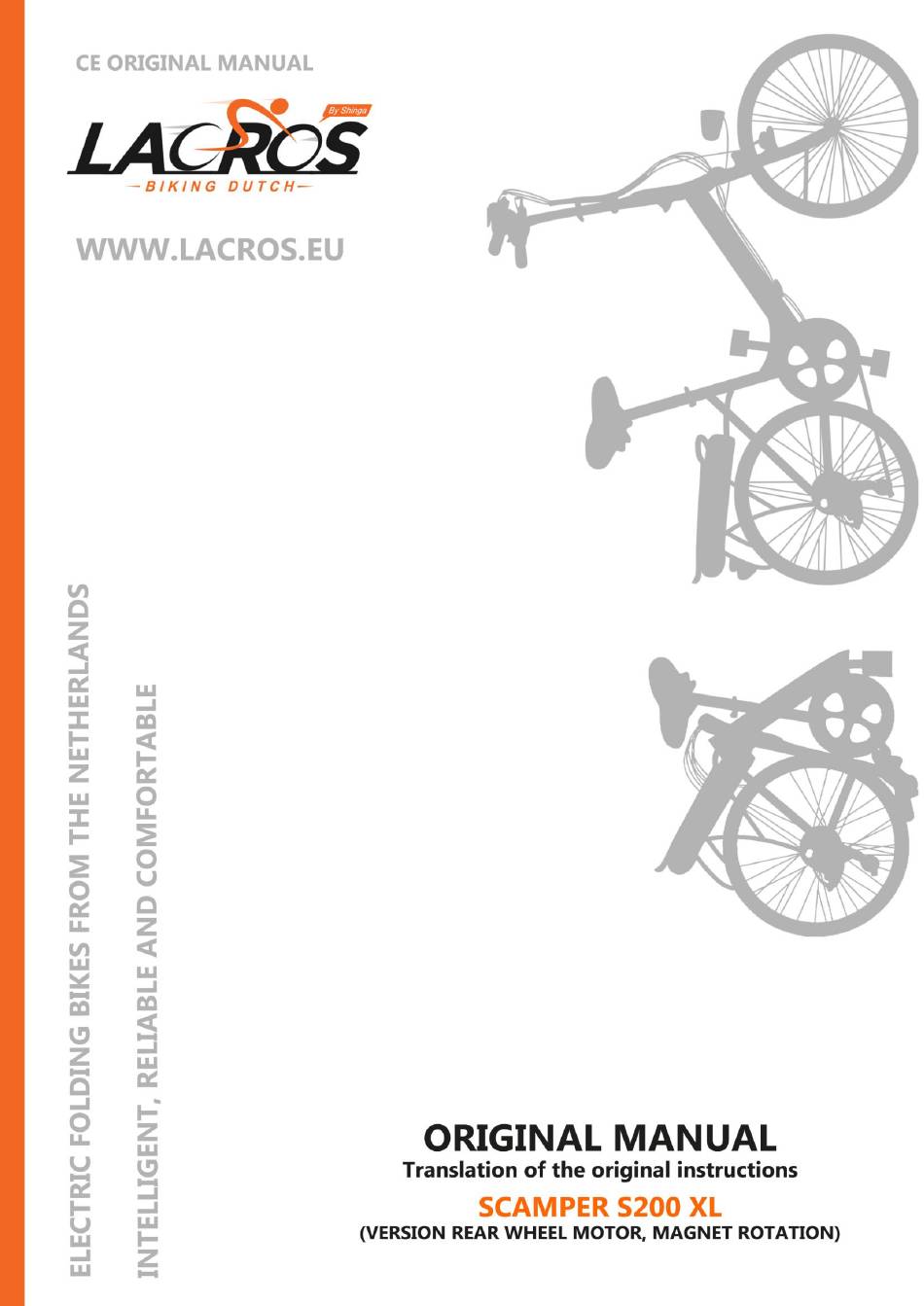

CE ORIGINAL MANUAL
SCAMPER S200 XL
VERSION CE 1.1 EN
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Scamper S200 XL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lacros Scamper S200 XL

Summary of Contents for Lacros Scamper S200 XL

  • Page 1 CE ORIGINAL MANUAL SCAMPER S200 XL VERSION CE 1.1 EN...
  • Page 2 SAFETY COMES ALWAYS FIRST. READ THE FOLLOWING SAFETY ADVICES THOROUGLY REGARDING OUR (ELECTRICAL) BIKES: 1. LACROS E-BIKES ARE EQUIPPED WITH AN ELECTRIC MOTOR. IT IS OF GREAT CONCERN TO LEARN HOW TO USE THE E-BIKE PROPERLY AND DRIVE IN COMPLIANCE WITH THE LOCAL TRAFFIC REGULATIONS. WE ADVICE FIRST TO DO SOME PRACTICE RUNS ON EASY ROADS AND LESS TRAFFIC TO GET FAMILIAR WITH THE E-BIKE 2.

  • Page 3: Table Of Contents

    VERSION CE 1.1 EN CONTENT Introduction ................................4 Safety tips ................................4 ! Safety regulations ! ............................. 5 Manual SCAMPER S200 XL ............................ 6 Important notice: ..............................6 Pre-ride checks: ..............................6 Easy start up: ................................. 7 Charging/removing battery: ..........................9 General information about the E-Bike:........................

  • Page 4: Introduction

    Introduction Thank you for choosing LACROS. This manual is written for convenient use and to safeguard the use of the E-Bike. After reading this manual you can get familiar about the functions and proper use of our E-bikes. The technical design of the E- Bikes are reliable, we use quality parts and together with our high standard of service, we can provide you with an E-bike which is easy to use, reliable, all together with a high range.

  • Page 5: Safety Regulations

    CE ORIGINAL MANUAL SCAMPER S200 XL VERSION CE 1.1 EN ! Safety regulations ! 1. To ensure safe driving, it is important to read the instructions. For any discrepancy in our manual, contact us. 2. Comply to local traffic regulations , do not ride with 2 or more persons, reduce speed during bad weather, wet road or down/uphill.

  • Page 6: Manual Scamper S200 Xl

    CE ORIGINAL MANUAL SCAMPER S200 XL VERSION CE 1.1 EN Manual SCAMPER S200 XL The Scamper is available in different specification. This manual apply to these specifications:  Battery: PANASONIC 36V 11.6 AH or 36V 17 AH.  Electric motor: 250W BAFANG in rear wheel.

  • Page 7: Easy Start Up

    CE ORIGINAL MANUAL SCAMPER S200 XL VERSION CE 1.1 EN Easy start up: 1. Battery Power. Press button on the left side of the battery to switch battery On/Off (1). A green light indicates the battery is turned On. Pressing the button on top of the battery will indicate the battery status (2).
  • Page 8 CE ORIGINAL MANUAL SCAMPER S200 XL VERSION CE 1.1 EN How to fold the Bike: 1. Remove key and release bicycle stand. The pedals can be fold by pulling the ring towards you with your fingers and fold upwards. Face left pedal to front to ease fold.

  • Page 9: Charging/Removing Battery

    CE ORIGINAL MANUAL SCAMPER S200 XL VERSION CE 1.1 EN Charging/removing battery: Warning:  Avoid damage from short circuit between the positive and negative poles of the charger and battery.  Do not open charger to avoid damage and injury.

  • Page 10: General Information About The E-Bike

    CE ORIGINAL MANUAL SCAMPER S200 XL VERSION CE 1.1 EN General information about the E-Bike: 1. The E-Bike is mechanically the same as a normal bike. All moving parts, like cables, brakes, gear and axes can be maintained by using silicon or telfonspray.
  • Page 11 CE ORIGINAL MANUAL SCAMPER S200 XL VERSION CE 1.1 EN Important notice: Shinga is authorized to recycle waste batteries and to recycle them safely. If you plan to discard your battery because the battery has reached its lifetime, contact us.

  • Page 12: Technical Specifications

    CE ORIGINAL MANUAL SCAMPER S200 XL VERSION CE 1.1 EN Technical specifications: 1. Size (LxWxH): 1730 x 660 x 1280 mm 2. Folding size (LxWxH): 900 x 440 x 800 mm 3. Frame: aluminium 4. Motor type: without brushes in back wheel 5.

  • Page 13: Eu Declaration Of Conformity Concerning Machines

    MOLENDIJK ZUID 23B B1.NO.609 SOUTH JINXING STREET 5482 WZ SCHIJNDEL 5482 WZ SCHIJNDEL JINHUA, ZHEJIANG , CHINA Product: electric folding bike Model: JSL 039Z Name: Scamper S200 XL Serial number bike: ………………………………………………………………………………………………………………………………. Serial number motor: …………………………………………………………………………………………………………………………… Serialnumber battery: …………………………………………………………………………………………………………………………. THIS E-BIKE IS MANUFACTURED ACCORDING AND IN APPLIANCE WITH EUROPEAN UNION GUIDELINES AND REGULATIONS CONCERNING ELECTRIC BIKES WITH A MAXIMUM SPEED OF 25 KM/HOUR AND A MAXIMUM MOTOR OUTPUT OF 250W THE FOLLOWING “EN”...
