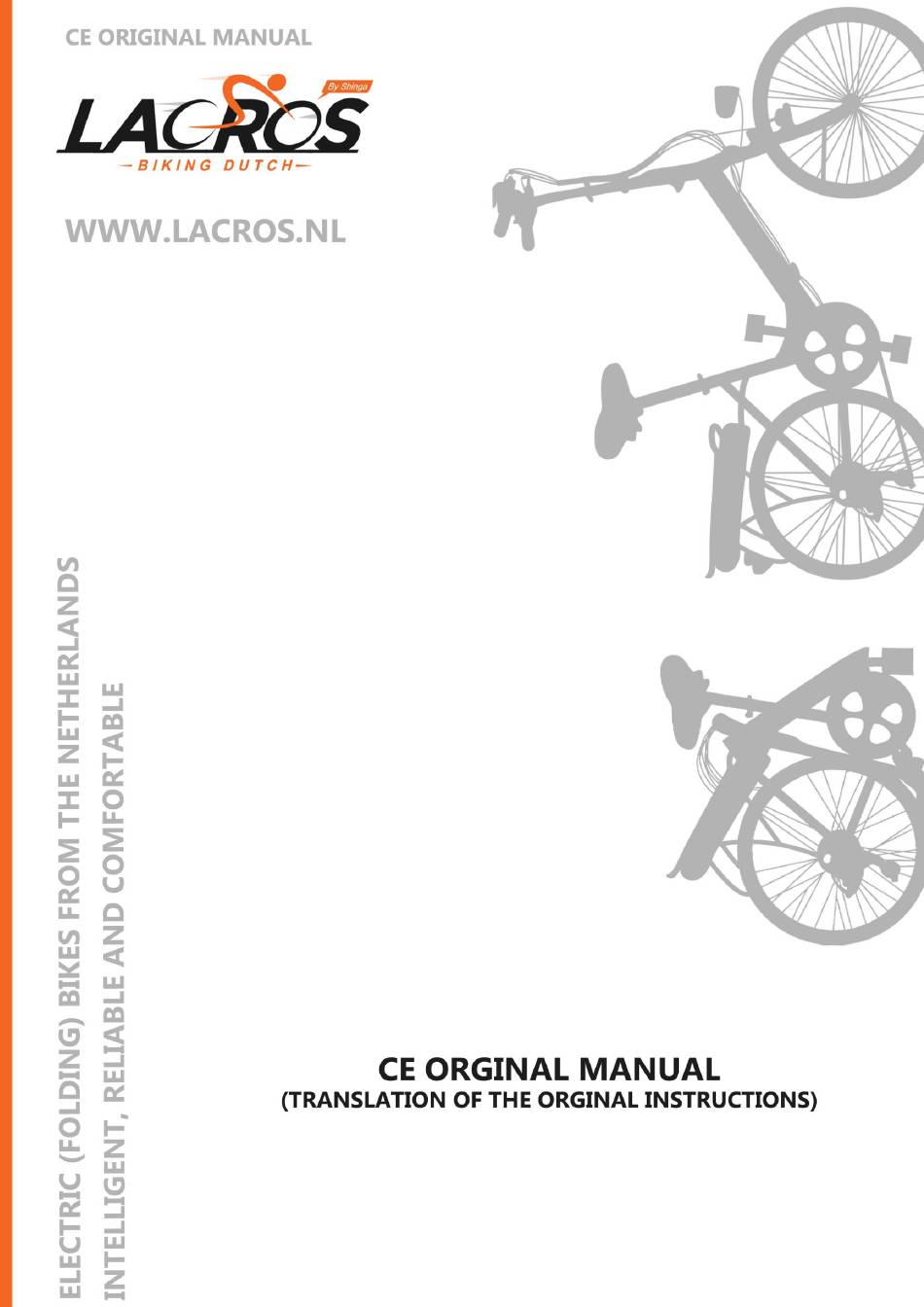

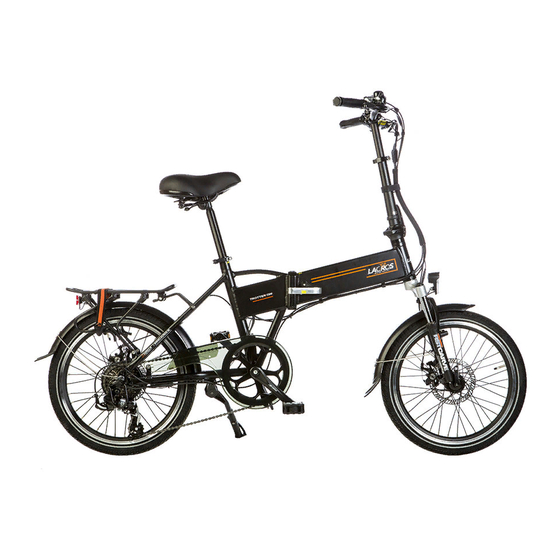

- Page 1 CE ORIGINAL MANUAL LACROS TROTTER T200/T400XL VERSION CE 1.4 EN LACROS TROTTER T200/T400 (XL) ELECTRIC FOLDING BIKE...
-
Page 2: For Your Safety
1. The LACROS Electric bike is equipped with an electromotor. It is very important that you are familiar with the bike as soon as possible. We advise you to choose the first "practice rides" for easy roads with little traffic and a smooth road surface. -
Page 3: Quality Standard
CE ORIGINAL MANUAL LACROS TROTTER T200/T400XL VERSION CE 1.4 EN Quality standard Your product is an electric folding bike. The bicycle can be folded at 2 locations, on the handlebar stem and halfway at the frame. The bike is equipped with a pedal support system which is powered by an external battery. -
Page 4: Table Of Contents
CE ORIGINAL MANUAL LACROS TROTTER T200/T400XL VERSION CE 1.4 EN Turn on the display ..........9 Index Switch bicycle LED lights on and off ....9 Thumb lever Walk Assist ........9 For your safety ............ 2 Switch between the 9 levels of motor support ... 9 Quality standard .......... -
Page 5: Unfolding The Bicycle
CE ORIGINAL MANUAL LACROS TROTTER T200/T400XL VERSION CE 1.4 EN 1. Unfolding the bicycle Magnetic lock Push the wheels apart to remove them from their magnetic lock. A = Metal locking plate B = Magnet C = Direction in which you can lock... -
Page 6: Folding The Bicycle
CE ORIGINAL MANUAL LACROS TROTTER T200/T400XL VERSION CE 1.4 EN 2. Folding the bicycle Folding the pedals Fold down the bicycle's stand and fold the pedals in by pushing the entire pedal towards the bike and then folding it up or down. -
Page 7: How To Operate The Bicycle
CE ORIGINAL MANUAL LACROS TROTTER T200/T400XL VERSION CE 1.4 EN 3. How to operate the bicycle Switch on the battery The battery is located in the frame with the Trotter. Switch on the electrical system with the key switch (B) on the left side of the frame. -
Page 8: Switch Between The 9 Levels Of Motor Support
CE ORIGINAL MANUAL LACROS TROTTER T200/T400XL VERSION CE 1.4 EN Switch between the 9 levels of motor support The electrical motor support has 9 levels. The active setting is displayed on the top left of the display. You can increase or decrease the support by using the (+) and (-) buttons. -
Page 9: Bigstone-Display
CE ORIGINAL MANUAL LACROS TROTTER T200/T400XL VERSION CE 1.4 EN ▪ Bigstone-display Turn on the display Press the ”M” button (1) on the left of the display to activate the bicycle's electrical circuit. (Note that the battery is already turned on) A menu will now appear on the display, the electrical... -
Page 10: Usb-Input Display
CE ORIGINAL MANUAL LACROS TROTTER T200/T400XL VERSION CE 1.4 EN USB-input display Below the display you will find a USB-port (A) where you can, for example, charge your telephone or navigation while cycling. This charging only works when the display is on. -
Page 11: Battery And Charge
Charge recommendation • Always recharge the battery with the Lacros charger supplied with the bike. Do not use any other charger. • The first 2 recharges of a new bicycle must be more than 60%. To realize this, wait the first 2 times before recharging, until the battery indicator on the display has fallen below 40%. -
Page 12: How To Charge The Battery
CE ORIGINAL MANUAL LACROS TROTTER T200/T400XL VERSION CE 1.4 EN How to charge the battery The battery has one charging point (A) on the right side of the battery. It is recommended to first connect the charger to the battery and then plug the 220V plug into the socket. -
Page 13: Safety Rules
CE ORIGINAL MANUAL LACROS TROTTER T200/T400XL VERSION CE 1.4 EN 6. Safety rules • Read carefully the manual supplied with your bicycle before using it for the first time. • Strictly adhere to the traffic rules. • Never disassemble the bicycle yourself. If replacement of a part is necessary, contact your dealer or Shinga B.V. -
Page 14: Legal Requirements
CE ORIGINAL MANUAL LACROS TROTTER T200/T400XL VERSION CE 1.4 EN 7. Legal requirements According to European legislation, the vehicle described is a bicycle because the vehicle complies with the following rules: • From 6 Km/h, the support is only active when the user is pedaling. -
Page 15: Technical Specifications
CE ORIGINAL MANUAL LACROS TROTTER T200/T400XL VERSION CE 1.4 EN 8. Technical specifications • Dimensions unfolded (L x W x H): 160x66x113cm 165x60x108cm • Dimensions folded (L x W x H): 92x40x69cm 100x45x78cm • Frame: Aluminum • Motor type: Rear wheel motor •... -
Page 16: Ec Declaration
THE NETHERLANDS Product: Electric folding bike Model: JSL 039B Name: Lacros Trotter T200/T400 (XL) THIS E-BIKE IS MANUFACTURED ACCORDING AND IN APPLIANCE WITH EUROPEAN UNION GUIDELINES AND REGULATIONS CONCERNING ELECTRIC BIKES WITH A MAXIMUM SPEED OF 25 KM/HOUR AND A MAXIMUM MOTOR OUTPUT OF 250W THE FOLLOWING “EN”...
