D+H RZN 4503-T Troubleshooting Manual

D+H UK

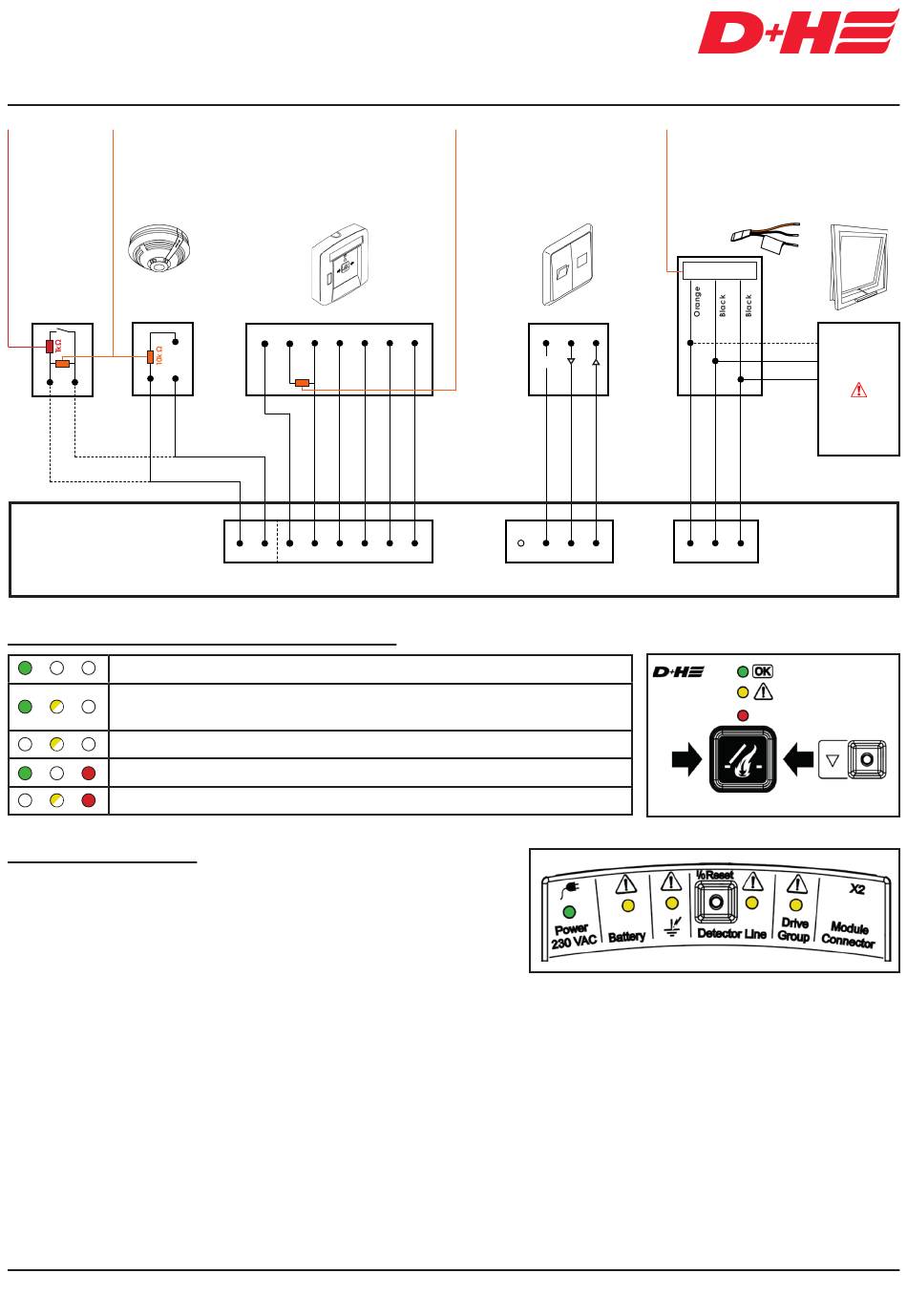

RZN 4503-T Troubleshooting Guide
1kΩ resistor - 10kΩ resistor - orange band
red band (from
(from RM "R" & "-" in panel).
keyring bag).
Fire alarm SD-O 371
interface Smoke Detector
Normally
open, volt
free contact.
10kΩ
OR
3 2

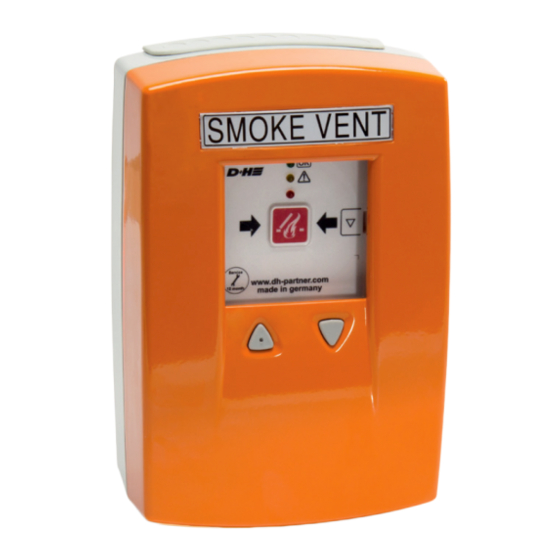

RZN 4503-T / RT 45 breakglass display indications
Solid green - System healthy, no faults.
+ +
Solid green + flashing yellow - System healthy, no fault. Inbuilt
+ +
service timer expired. Contact our service department.
Flashing yellow - System fault. See panel indications below.
+ +
Solid green + solid red - System healthy + in fire.
+ +
Flashing yellow + solid red - System in fault + fire.
+ +
Display fault indications
Battery fault:
• Incorrect connection of the battery.
Earth fault:
• Issue with incoming power supply 230 v earth.
Detector Line fault - Solid:
• Indicates an issue between the control panel and control elements (fire alarm interface, smoke detector or
breakglass).
• Each control element requires a single 10kΩ end of line resistor. See above detail.
• If no fire alarm interface or smoke detector in system, leave 10kΩ end of line resistor in RM terminals "R" & "-".
If no RT 45 breakglass, leave 10kΩ resistor in RT terminals "T" & "-".
Detector Line fault - Flashing:
• Indicates line deactivated, press the 1/0 Reset button at top of panel to reactivate.
Drive Group fault:
• Issue between the control panel and the drive(s). Ensure EM 47 K end of line terminal resistor is connected as
shown above.
• Check 2.5 Amp fuse has not blown.
D+H UK (DH Mechatronic UK Ltd), Unit 10, Lawnhurst Trading Estate, Cheadle Heath, Stockport, Cheshire SK3 0SD
www.dh-partner.co.uk +44 (0)161 491 4840
|
10kΩ resistor - orange band
(from RT "T" & "-" in panel).
RT 45
Breakglass
5
2 8 3 1
10kΩ
R - T - K
RT
RM
Registered in England 02670985
|
6 4 7
A Z S L
|
End of line terminal resistor
(from MOT E, a & b in panel).
Connection point
LT 84-U
Wall Switch
(local to vent - by
others)
EM 47 K
COM
N- Z A E
LT MOT
VAT No. 611329279
Vent
Orange
24v D+H
(High Speed)
Mechatronic
White
drive.
Brown
Terminate all
other coloured
cables in
connection
point.
a b
Alarm open Reset close
Page 1 of 2
V3
