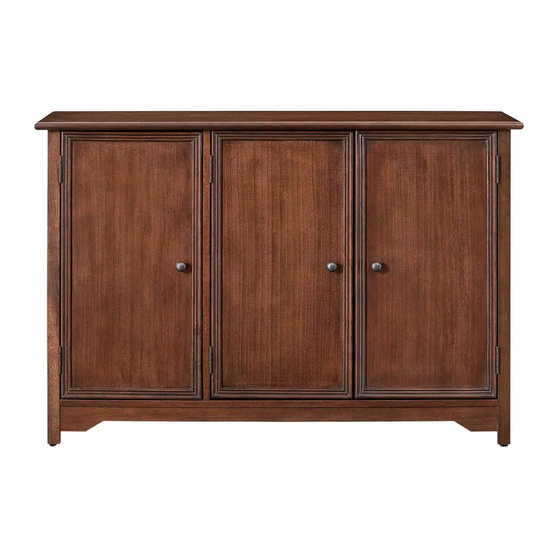

BRADSTONE 3 DOOR STORAGE CONSOLE
Questions, problems, missing parts? Before returning to the store,
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this Bradstone 3
Door Storage Console. We strive to continually create quality products designed to enhance your home. Visit us online to see
our full line of products available for your home improvement needs. Thank you for choosing Home Decorators Collection!
Item # 1005561907
Model # JS-3413-C
USE AND CARE GUIDE
call Home Decorators Collection Customer Service.
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
Item # 1005561902
Model # JS-3413-A
Item # 1005561906
Model # JS-3413-B
