Item # 1005566731
Model # JS-3415-A
USE AND CARE GUIDE

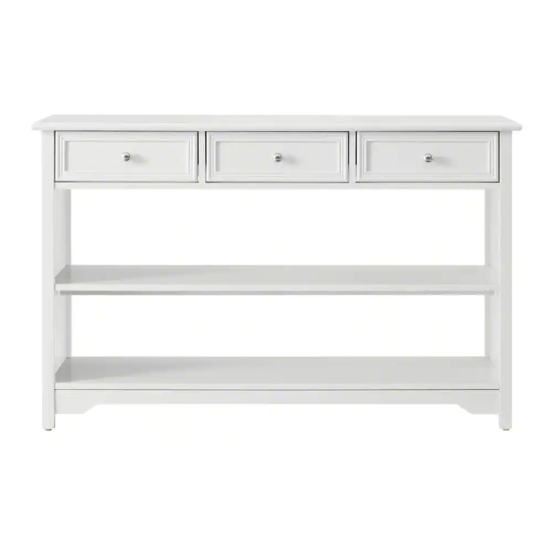

BRADSTONE OPEN SHELF CONSOLE
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service.
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this Bradstone
Open Shelf Console. We strive to continually create quality products designed to enhance your home. Visit us online to see
our full line of products available for your home improvement needs. Thank you for choosing Home Decorators Collection!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BRADSTONE JS-3415-A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Home Decorators Collection BRADSTONE JS-3415-A

Summary of Contents for Home Decorators Collection BRADSTONE JS-3415-A

  • Page 1 HOMEDEPOT.COM/HOMEDECORATORS We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this Bradstone Open Shelf Console. We strive to continually create quality products designed to enhance your home. Visit us online to see...

  • Page 2: Table Of Contents

    Table of Contents Table of Contents ..............2 Pre-assembly (continued) ..........4 Safety Information ............... 2 Package Contents ............4 Pre-assembly ................ 3 Notification ................5 Planning Assembly ............3 Assembly ................6-9 Tools Required ..............3 Maintenance ................ 10 Care and Cleaning ............. 10 Hardware Included ............

  • Page 3: Pre-Assembly

    Pre-assembly PLANNING ASSEMBLY Keep children and pets away from build area. Make sure your area is large enough to unpack, sort and assemble the unit. TOOLS REQUIRED Small head Large head Phillips Phillips screwdriver screwdriver (Not Included) (Not Included) HARDWARE INCLUDED NOTE: Hardware not shown to actual size.

  • Page 4: Pre-Assembly (Continued)

    Pre-assembly (continued) PACKAGE CONTENTS Part Description Quantity Top panel Left side panel Right side panel Fixed shelf Shelf support Bottom panel Back damper Front damper HOMEDEPOT.COM/HOMEDECORATORS Please contact 1-800-986-3460 for further assistance.

  • Page 5: Notification

    Notification NOTE: UPON OPENING THOROUGHLY CLEAN ALL WOODS SURFACES TO REMOVE DUST AND DIRT THAT MAY HAVE SETTLED ONTO FINISH DURING SHIPMENT. IN ORDER TO PREVENT DAMAGE DURING ASSEMBLY, PLEASE ASSEMBLE THIS ITEM WITH AT LEAST TWO PEOPLE. NOTE:TURN THE CAM-BOLT SCREWS UNTIL THEY SHOULDER ARE TIGHT,THE SHOULDER SHOULD BE AGAINST THE SURFACE OF THE PART.

  • Page 6: Assembly

    Assembly Assemble L shaped bracket and shelf support a) Insert cam lock bolt (BB)to side panels (B/C) c) Align the shelf support(E) to holes on fixed shelf(D) b) Semi-fixed L shaped bracket(CC) with short hexagon socket screw (DD) on back damper(G) and front damper (H) ; Do not tighten them d) Assemble shelf support(E) with round head screw(HH)
  • Page 7 Assembly Assemble side panel & handle c) Align panel(B/C) to holes and assemble other panels as graphic a) Release drawers showing. d) Tighten panels with hexagon socket screws(DD/EE), spring washer(FF), flat gasket(GG) b) Assemble handle(JJ) with cross round head bolt(II) Short hexagon Long hexagon Cross Round...
  • Page 8 Assembly Assembly lnserting the drawer Insert the drawer into the assembled body as shown. 1.Pull out slide. Slide bearings forward. 2.Push slide back inside. 3.Insert into slide slot correctly, Repeat for every slide! push the drawer into the cabinet body with even force NOTE: Make sure the slide piece is at the front end of the glide when installing the drawer into the body.
  • Page 9 Assembly Assembly Adjust the foot leveler and Assemble anti-tipping hardware package (KK) b) Lock the two hardware on the product and the a) Adjust the foot leveler other two hardware lock on the wall, then lock the product with a plastic band. Wall Wall Floor...

  • Page 10: Maintenance

    Maintenance □ If your furniture is stained or otherwise damaged during use, contact a professional for repairs. Care and Cleaning □ Use a soft, clean cloth that will not scratch the surface when dusting. □ Use of furniture polishes is not necessary. Should you choose to use polishes, test the polish in an inconspicuous area before using over the entire surface of the product.
