We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this beadboard entryway bench. We
strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for you home
USE AND CARE GUIDE

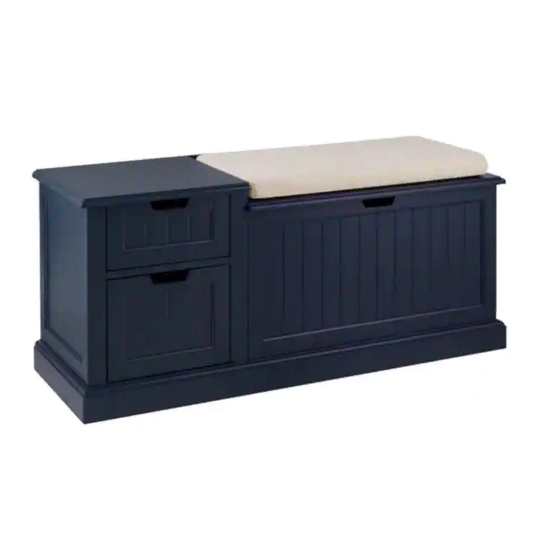

BEADBOARD ENTRYWAY BENCH
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service.
8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
HOMEDEPOT.COM/HOMEDECORATORS
improvement needs. Thank you for choosing Home Decorators Collection!
Item #1004403556
Model #SK19331Br1-C
1-800-998-7021
THANK YOU
Item #1004403587
Model #SK19331Br1-M
Item #1004403574
Model #SK19331Br1-W
Advertisement
Table of Contents
Related Manuals for Home Decorators Collection SK19331Br1-C
Summary of Contents for Home Decorators Collection SK19331Br1-C
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this beadboard entryway bench. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for you home...
-
Page 2: Table Of Contents
Table of Contents Hardware Included ..............3 Table of Contents ............2 Safety Information ............2 Pre-assembly (continued) ..........4 Warranty ................. 2 Package Contents ..............4 3 Year Warranty ...............2 Assembly ............... 5 ... -
Page 3: Pre-Assembly
Pre-assembly PLANNING ASSEMBLY Keep children and pets away from build area. Make sure your area is large enough to unpack, sort and assemble the unit. TOOLS REQUIRED Large head Small head Phillips Phillips screwdriver screwdriver HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity... -
Page 4: Pre-Assembly (Continued)
Pre-assembly (continued) PACKAGE CONTENTS Part Description Quantity Part Description Quantity Left top panel Right back panel Right top panel Small drawer front panel Left side panel Small drawer left side panel Middle side panel Small drawer right side panel Right side panel Small drawer back panel Back crossbar Drawer bottom panel... -
Page 5: Assembly
Assembly Attaching the front crossbar to the left side panel □ □ a) Install dowel (AA) and bolt (BB) into panel (C). c) Join bar (G) to the panel (C) with dowel (AA). □ b) Insert lock (CC) into bar (G). □... - Page 6 Assembly (continued) Attaching the middle side panel □ □ a) Install dowel (AA) and bolt (B) into panel (D). c) Join bar (G) to the panel (D) with dowel (AA). □ □ d) Tighten bolt (BB) with lock (CC) in the pre-drilled hole. b) Insert lock (CC) into bar (G).
- Page 7 Assembly (continued) Attaching the right side panel to the front panel □ a) Join panel (E) to the panel (I) with dowel (AA). □ b) Attach panel (E) with washer (DD),spring washer (EE),and bolt (FF). Turn and tighten bolt (FF) with wrench (HH). HOMEDEPOT.COM/HOMEDECORATORS Please contact 1-800-998-7021 for further assistance.
- Page 8 Assembly (continued) Attaching the back crossbar □ □ a) Install dowel (AA) and bolt (BB) into panel (D). c) Join bar (F) and panel (I) to the panels (D) and (E) with dowel (AA). □ d) Tighten bolt (BB) with lock (CC) in the pre-drilled holes. □...
- Page 9 Assembly (continued) Attaching the bottom panel □ a) Install dowel (AA) and bolt (BB) into panel (H). □ c) Join panel (H) to the assembled body with dowel (AA). □ b) Insert lock (CC) into panels (C),(D),(E) and (I). □ d) Tighten bolt (BB) with lock (CC) in the pre-drilled holes.
- Page 10 Assembly (continued) Attaching the left top panel □ □ a) Install bolt (BB) into panel (A). c) Join panel (A) to the assembled body with dowel (AA). □ □ b) Insert lock (CC) into panels (C) and (D). d) Tighten bolt (BB) with lock (CC) in the pre-drilled holes.
- Page 11 Assembly (continued) Attaching the back panel □ Tighten panels (J) and (K) to the assembled body with screw (II) as shown. HOMEDEPOT.COM/HOMEDECORATORS Please contact 1-800-998-7021 for further assistance.
- Page 12 Assembly (continued) Attaching the right top panel and cushion □ □ a) Attach safety hinge (JJ) to panel (D) with screw (KK) c) Attach safety hinge (JJ) to panel (B) with screw (KK) as shown. as shown. □ □ b) Attach panel (B) to assembled body with screw (KK) d) Place cushion (U) on the panel (B).
- Page 13 Assembly (continued) Assembling the small drawer □ □ a) Tighten panels (M) and (N) to panel (L) c) Tighten panel (O) to the assembled body with with screw (GG). screw (GG). □ b) Slide panel (P) into the grooves on panels (M) and (N). HOMEDEPOT.COM/HOMEDECORATORS Please contact 1-800-998-7021 for further assistance.
- Page 14 Assembly (continued) Assembling the large drawer □ a) Tighten panels (R) and (S) to panel (Q) □ c) Tighten panel (T) to the assembled body with screw (GG). with screw (GG). □ b) Slide panel (P) into the grooves on panels (R) and (S).
- Page 15 Assembly (continued) Inserting the drawer □ Insert the drawer into the assembled body as shown. NOTE: Make sure the slide piece is at the front end of the glide when installing the drawer into the body. SAFETY RELEASE TAB NOTE: When removing the drawer, tip-up the safety release tab to remove the drawer from the body.
- Page 16 Questions, problems, missing parts? Before returning to the store, call Home Decorators Collection Customer Service. 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-800-998-7021 HOMEDEPOT.COM/HOMEDECORATORS Retain this manual for future use.
