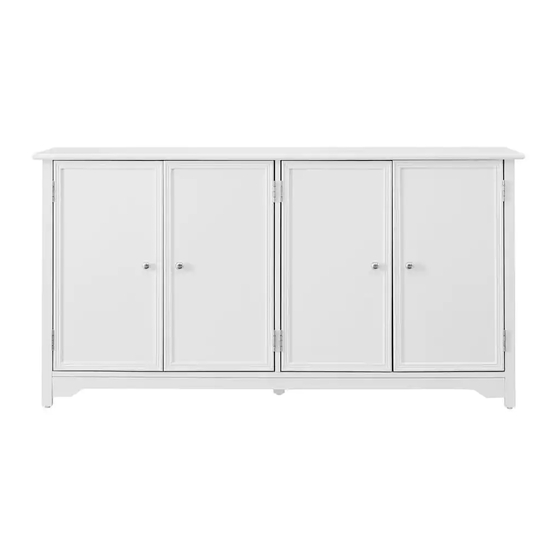

BRADSTONE 4 DOOR STORAGE CONSOLE
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this Bradstone
4 Door Storage Console. We strive to continually create quality products designed to enhance your home. Visit us online to see
our full line of products available for your home improvement needs. Thank you for choosing Home Decorators Collection!
USE AND CARE GUIDE
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service.
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
Item # 1005564189
Model # JS-3421-A
Item # 1005564190
Model # JS-3421-B

Advertisement

loading
Need help?

Need help?

Do you have a question about the BRADSTONE JS-3421-A and is the answer not in the manual?

Questions and answers

Related Manuals for Home Decorators Collection BRADSTONE JS-3421-A

Summary of Contents for Home Decorators Collection BRADSTONE JS-3421-A

  • Page 1 HOMEDEPOT.COM/HOMEDECORATORS We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this Bradstone 4 Door Storage Console. We strive to continually create quality products designed to enhance your home. Visit us online to see...
  • Page 2 Table of Contents HOMEDEPOT.COM/HOMEDECORATORS Please contact 1-800-986-3460 for further assistance.

  • Page 3: Pre-Assembly

    Pre-assembly PLANNING ASSEMBLY Keep children and pets away from build area. Make sure your area is large enough to unpack, sort and assemble the unit. TOOLS REQUIRED Small head Large head Phillips Phillips screwdriver screwdriver (Not Included) (Not Included) HARDWARE INCLUDED NOTE: Hardware not shown to actual size.

  • Page 4: Package Contents

    Pre-assembly (continued) PACKAGE CONTENTS Part Description Part Description Quantity Quantity Top panel Front dam board Left side panel Back panel Right side panel Left door panel Bottom Board Right door panel Middle side panel Shelf Middle leg HOMEDEPOT.COM/HOMEDECORATORS Please contact 1-800-986-3460 for further assistance.
  • Page 5 Notification NOTE: UPON OPENING THOROUGHLY CLEAN ALL WOODS SURFACES TO REMOVE DUST AND DIRT THAT MAY HAVE SETTLED ONTO FINISH DURING SHIPMENT. IN ORDER TO PREVENT DAMAGE DURING ASSEMBLY, PLEASE ASSEMBLE THIS ITEM WITH AT LEAST TWO PEOPLE. NOTE:TURN THE CAM-BOLT SCREWS UNTIL THEY SHOULDER ARE TIGHT,THE SHOULDER SHOULD BE AGAINST THE SURFACE OF THE PART.
  • Page 6 Assembly Connect Panels (E & D)and middle leg(G) a) Insert cam lock bolt (BB) to Bottom board(D) C) Fix cam lock(AA) on middle side panel(E) b) Align and join cam lock bolt(BB) on middle side panel(E), please kindly be attention the direction of middle side panel(E).
  • Page 7 Assembly Assemble side panel (B/C) c) Align front dam board (H) to the bottom board(D) and a) Insert cam lock bolt (BB) to side panels(B/C) connect with side board (B/C) d) Join cam lock to side pannels(B/C), and tighten b) Semi-fixed hexagon socket bolt(CC), spring washer(EE), flat hexagon socket bolt(CC) gasket(DD), L shaped bracket(LL) to the front dam board (H) Hexagon...
  • Page 8 Assembly Assemble Top panel (A) a) Join cam lock bolt (BB) to magnetic C) Tighten cam lock(AA)on side panels(B/C) and clam(II) on top panel(A) middle side panels(E) back front b) Align and join side panels(B/C)& middle side panel(E)with top panel(A) Cam lock Cam lock bolt Magnetic clamp Flat head screw...
  • Page 9 Assembly Assemble back panel a) Open back panel(I) and adjust it as arrows. Put thread hole cover(MM) to the thread hole, and fix it with round head screw(KK) Round head screw Thread hole cover Small head (MM)x 2 (KK)x25 HOMEDEPOT.COM/HOMEDECORATORS Please contact 1-800-986-3460 for further assistance.
  • Page 10 Assembly Assemble door panels(J/K) and shelf (F) b)Join layer shelf support(FF) on inner of side panels(B/ C) a) Fix hinge on side panels(B/C)and middle side board(E) and middle side panel(E),and put shelf (F) as folowing graphic. with flat head screw(JJ). Then join hanle(HH)with cross round head screw(GG)on each door Cross round Layer shelf...
  • Page 11 Assembly Adjust door panels(J/K) and assemble anti-tipping hardware b) Join retangle metal plate(1)with round head screw(2) on package(NN) back of panel;Join retangle metal plate(1） and plastic anchor(3)with round head screw(5)on the wall; then tighten with plastic band(4) a) Adjust door panels ADJUST MAGNETIC CLAMP Wall Wall...
  • Page 12 PROBLEMS SOLUTIONS Make sure adjustable center feet levelers are adjusted properly. T he levelers are pre- assembled on the bottom of the legs Not all of the product's T he product is KD construction. Y ou may need to loosen the bolts and place the product on legs touch the floor a flat surface.
