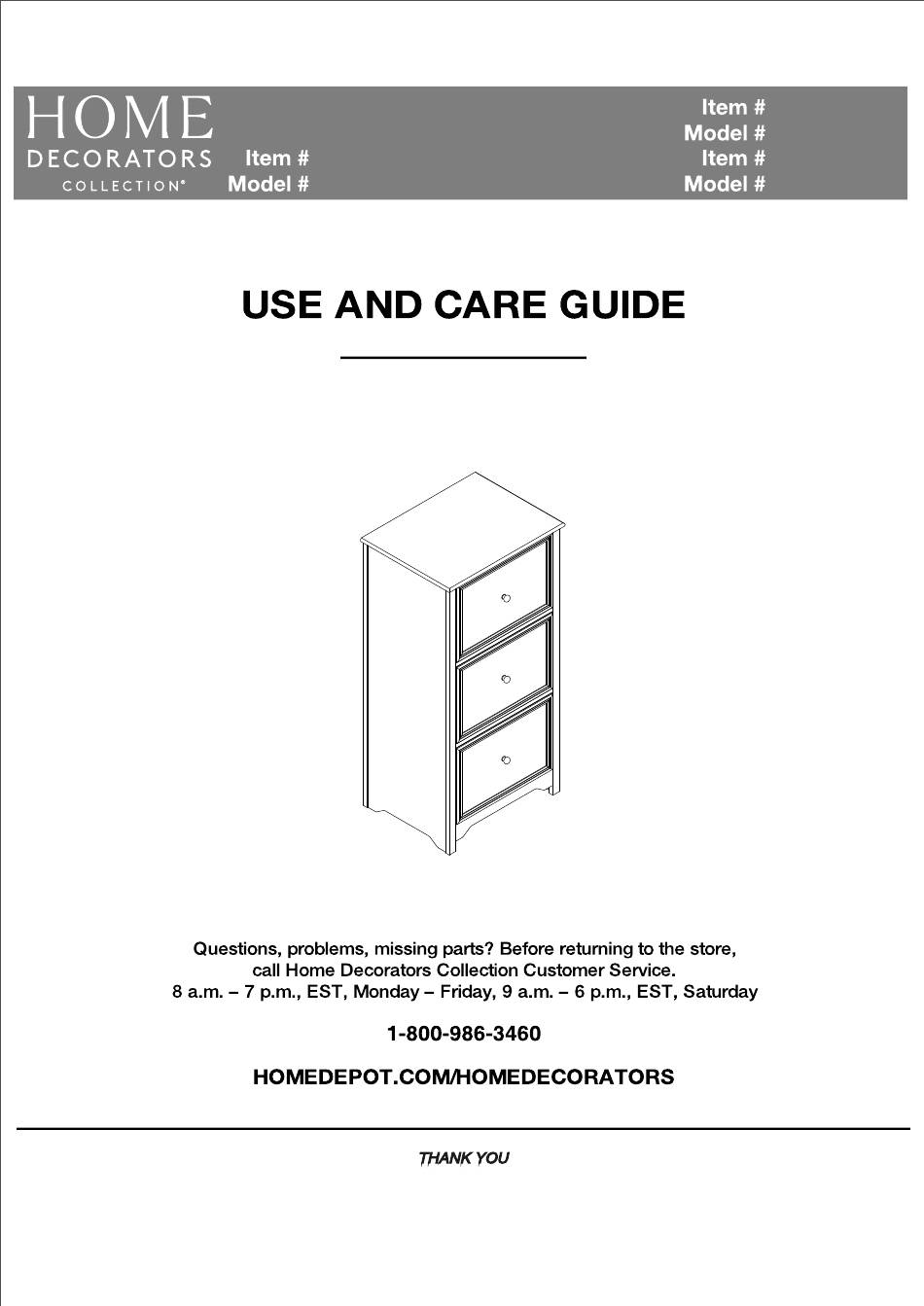

We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this Bradstone
3 Drawer File Cabinet. We strive to continually create quality products designed to enhance your home. Visit us online to see
our full line of products available for your home improvement needs. Thank you for choosing Home Decoratons Collection!
1005557053
JS-3414-C
BRADSTONE 3 DRAWER FILE CABINET
1005557041
JS-3414-A
1005540343
JS-3414-B
Advertisement
Table of Contents
Related Manuals for Home Decorators Collection BRADSTONE JS-3414-C
Summary of Contents for Home Decorators Collection BRADSTONE JS-3414-C
- Page 1 BRADSTONE 3 DRAWER FILE CABINET We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this Bradstone 3 Drawer File Cabinet. We strive to continually create quality products designed to enhance your home. Visit us online to see...
- Page 2 HOMEDEPOT.COM/HOMEDECORATORS Please contact 1-800-986-3460 for further assistance.
-
Page 3: Pre-Assembly
Pre-assembly PLANNING ASSEMBLY Keep children and pets away from build area. Make sure your area is large enough to unpack, sort and assemble the unit. TOOLS REQUIRED Small head Large head Phillips Phillips screwdriver screwdriver (Not Included) (Not Included) HARDWARE INCLUDED NOTE: Hardware not shown to actual size. -
Page 4: Package Contents
Pre-assembly (continued) PACKAGE CONTENTS Quantity Quantity Part Description Part Description Top panel Back panel Left side panel Drawer back panel Right side panel Drawer left side panel Back cross brace Drawer right side panel Front cross brace Drawer bottom panel Bottom panel Drawer front panel Front cross brace at bottom... - Page 5 Notification NOTE: UPON OPENING THOROUGHLY CLEAN ALL WOODS SURFACES TO REMOVE DUST AND DIRT THAT MAY HAVE SETTLED ONTO FINISH DURING SHIPMENT. IN ORDER TO PREVENT DAMAGE DURING ASSEMBLY, PLEASE ASSEMBLE THIS ITEM WITH AT LEAST TWO PEOPLE. NOTE:TURN THE CAM-BOLT SCREWS UNTIL THEY SHOULDER ARE TIGHT,THE SHOULDER SHOULD BE AGAINST THE SURFACE OF THE PART.
- Page 6 Assembly Assemble drawers d) Insert wood dowel(CC) into panel(J&K), then rotate the cam lock(DD) tight to assemble panel(J&K) a) Insert wood dowel(CC) into panel(I), then and panel(M). assemble panel(I) and panel(J&K) by rotating the flat head screw(HH). e) Install the metal bar(N) b) Insert the panel(L) into the slot correctly.
- Page 7 Assembly Assemble bottom base(D,F,G) a) Insert and rotate the bolt(BB) c) Insert and rotate cam lock(AA) to assemble panel(G), panel(D) and into the panel(G) and Panel(F) panel(F) b) Assemble the panel(G) and panel(D) with panel(F) Big cam lock Big cam lock bolt Large head Small head (AA)x3...
- Page 8 Assembly Assemble panel(B), panel(D&E) and bottom base(D,F,G) c) Assemble and tighten the above a) Insert and rotate cam lock bolt(BB) panels by inserting and rotating the into panel(B) tightly. cam lock(AA). b) Insert wood dowel(CC) into cross brace(E/G); then assemble cross brace(E) and bottom component parts(D/F/G) to panel(B) Big cam lock Big cam lock bolt Wood dowel...
- Page 9 Assembly Assemble the panel(C). c) Assemble panel(C) by inserting and a) Insert cam lock bolt(BB) into rotating the cam lock(AA). panel(C). b) Insert the wood dowel(CC) into panel(E) and bottom base. Big cam lock Big cam lock bolt Wood dowel Large head Small head (AA)x7...
- Page 10 Assembly Assemble panel(A) c) Insert and rotate cam lock(AA) to assemble top a) Insert the bolt(BB) into top panel(A). panel(A). b) Assemble panel top (A) as illustration as below. Assemble panel(C) by inserting and rotating the cam lock(AA). Big cam lock Big cam lock bolt Large head Small head...
- Page 11 Assembly Install back panel(H) a) Open back panel(H). b) Insert screw(II) into back panel(H) holes Round head screw Small head (II)x20 HOMEDEPOT.COM/HOMEDECORATORS Please contact 1-800-986-3460 for further assistance.
- Page 12 Assembly lnserting the drawer lnsert the drawer into the assembled body as shown. 1.Pull out slide. Slide bearings forward. 2.Push slide back inside. 3.Insert into slide slot correctly, push Repeat for every slide! the drawer into the cabinet body with even force NOTE: Make sure the slide piece is at the front end of the glide when installing the drawer into the body.
- Page 13 Assembly Finalizing the assembly b) Connect plastic strip(4) with anti-tipping a) Install anti-tipping hardware Package(JJ) as hardware. illustration below. wall Rectangle 1.97 in.Round 0.63 in.Round Plastic band Plastic anchor metal plate head screw head screw Small head (1)X2 (2)X1 (3)X1 (4)X1 (5)X1 HOMEDEPOT.COM/HOMEDECORATORS...
-
Page 14: Maintenance
Maintenance □ If your furniture is stained or otherwise damaged during use, contact a professional for repairs. Care and Cleaning □ Use a soft, clean cloth that will not scratch the surface when dusting. □ Use of furniture polishes is not necessary. Should you choose to use polishes, test the polish in an inconspicuous area before using over the entire surface of the product.
Need help?
Do you have a question about the BRADSTONE JS-3414-C and is the answer not in the manual?
Questions and answers
