- Page 1 TC-D Series Installation Manual TC-D5511RX...
- Page 2 Before reading this manual This is a basic installation manual for use of an IDIS camera. Users who are using this product for the first time, as well as users with experience using comparable products, must read this operation manual carefully before use and heed to the warnings and precautions contained herein while using the product.
- Page 3 Before reading this manual Safety Precautions WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Important Safeguards 1.
- Page 4 IDIS Co., Ltd. reserves all rights concerning this operation manual. Use or duplication of this operation manual in part or whole without the prior consent of IDIS Co., Ltd. is strictly prohibited. Contents of this operation manual are subject to change without prior notice for reasons such as functionality enhancements.
-
Page 5: Table Of Contents
Table of Contents Part 1 – Introduction ......... 6 Product Features . -
Page 6: Part 1 - Introduction
Part 1 – Introduction Product Features TC-D5511RX is an analog camera that transmits video over coaxial. • DC 12V support • Smart IR support • TVI/AHD/SD video output support • Defog function support • Wide dynamic range compensation (True WDR) for improved video quality in high-contrast situations •... -
Page 7: Accessories
Accessories Upon purchasing the product, check inside the box to make sure all the following accessories are included. External appearances and colors of the accessories may vary depending on the model. Camera Guide Pattern Screws (2 ea.) Quick Guide... -
Page 8: Overview

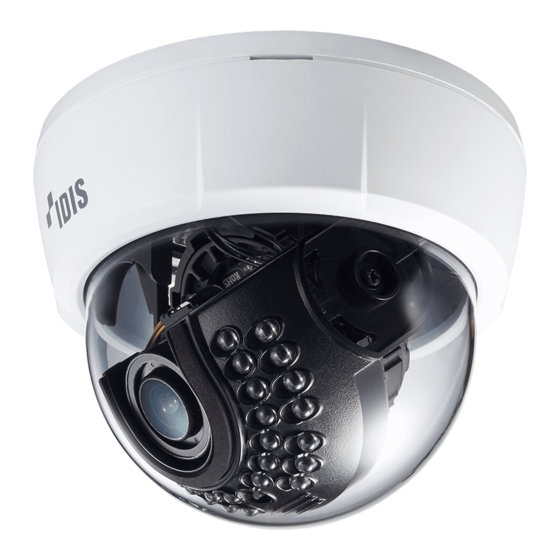

Part 1 – Introduction Overview Body Product color and design may vary depending on the model. Dome Cover Lens Rubber Bushing Bottom Cover IR LED Wall/Ceiling Installation Hole • Lens Equipped with a fixed-focus lens. • Rubber Bushing Blocks LED infrared rays. •... -
Page 9: I/O Device Port
Part 1 – Introduction Installation I/O Device Port Installation of this product does not require the use of special tools. For more information on other devices comprising the overall system, refer to their respective installation manuals. Product color and design may vary depending on the model. -
Page 10: Installation
Part 1 – Introduction Installation Closing the Dome Cover • Check the wall or ceiling to see if it needs to be Remove the protective film inside of the dome cover. reinforced. The camera may fall off if the wall or ceiling is not strong enough to support its weight. -
Page 11: Angle Adjustment
Part 1 – Introduction Angle Adjustment Dimension The lens can be rotated along three axes. 110mm Lens Rotation Vertical Rotation Horizontal Rotation • Lens Rotation Used to adjust the lens' rotation angle. Turn the rotator in clockwise or counterclockwise direction. •... -
Page 12: Part 2 - Camera Connection
Part 2 - Camera Connection DirectCX DVR Layout TVI Camera Power VGA Monitor Out Network HDMI Monitor Out Remote Monitoring... -
Page 13: Part 3- Appendix
Part 3- Appendix Troubleshooting Problem Check The main unit won't turn • Check the power cable connection. • Check the power outlet. I can't see Live videos. • Check the camera's power status. • Check the connection status of the camera with DVR. Images are blurry. -
Page 14: Specifications
Part 3- Appendix Specifications These product specifications may change without prior notice. Camera Image Sensor 1/2.8” CMOS Max. Resolution 2592 x 1944 Scanning Mode Progressive Scan Lens type Fixed-focal Focal Length f=2.8mm Aperture F2.0 Angular Field of View H: 104.8° / V: 76.9° / D: 130° (f=2.8mm) Min. - Page 15 Part 3- Appendix General Operating Temperature -10˚C ~ 50˚C (14˚F ~ 122˚F) Boot Up Temperature 0˚C ~ 50˚C (32˚F ~ 122˚F) Operating Humidity 0% ~ 90% Power Source DC 12V Power Consumption Max. 3.4W Approval FCC, CE External Dimensions (Ø x H) 110mm x 78mm (4.33"...
- Page 16 IDIS Co., Ltd. For more information, please visit at www.idisglobal.com...
