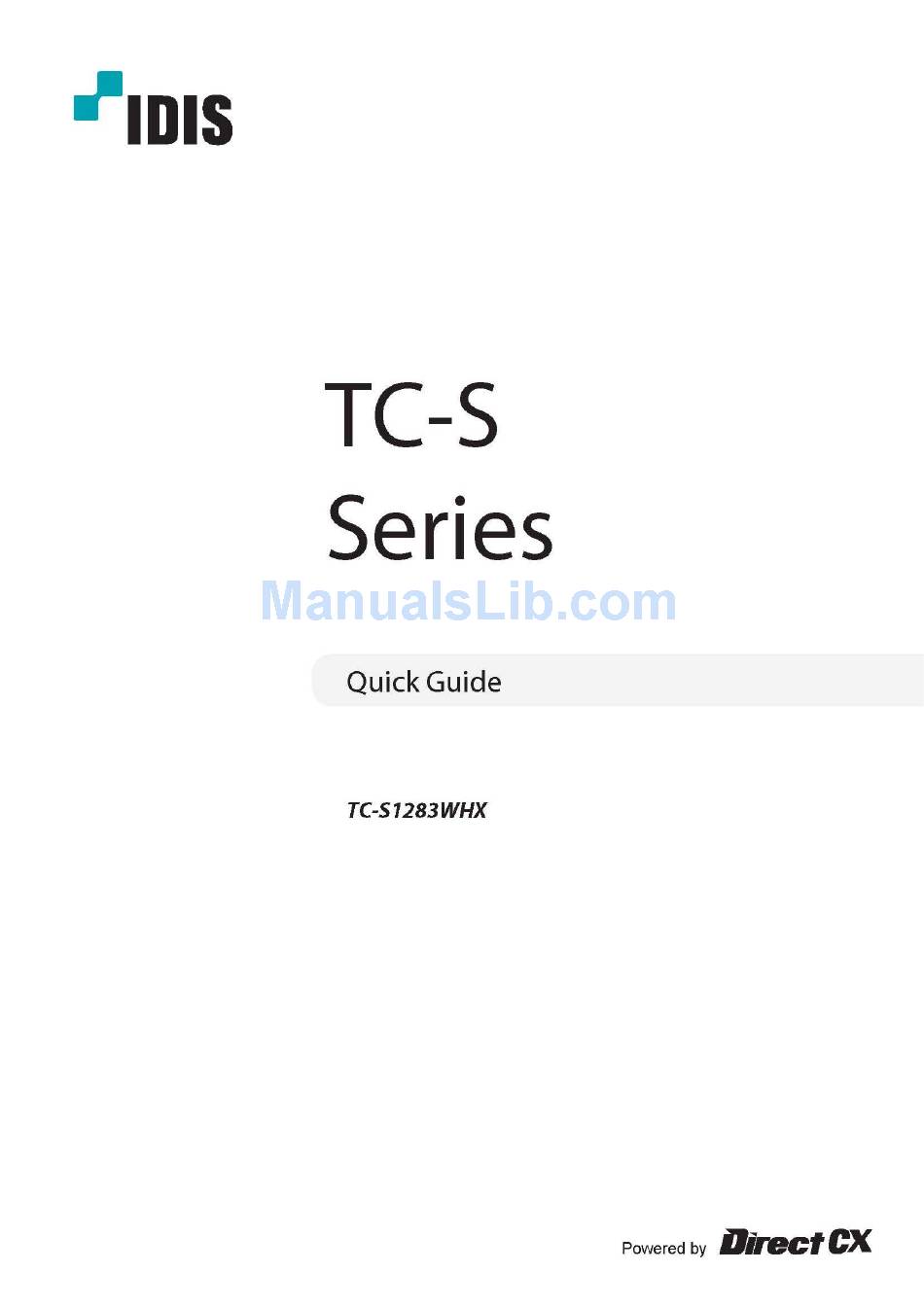

Idis TC-S1283WHX Quick Manual

Tc-s series
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TC-S1283WHX and is the answer not in the manual?

Questions and answers

Related Manuals for Idis TC-S1283WHX

Summary of Contents for Idis TC-S1283WHX

  • Page 2: Explanation Of Graphical Symbols

    WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECTS THROUGH THE VENTILATION GRILLS OR OTHER OPENINGS ON THE EQUIPMENT. CAUTION CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK)

  • Page 3: Fcc Compliance Statement

    FCC COMPLIANCE STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC INFORMATION: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.

  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

  • Page 5: Table Of Contents

    Table of Contents Chapter 1 — Introduction ....................6 1.1 Features ..........................6 Chapter 2 — Installation and Configuration ..............7 2.1 Package Contents ........................ 7 2.2 Mounting the Camera ......................8 2.2.1 Wall Mounting ......................9 2.2.2 Ceiling Mounting ....................... 10 2.2.3 PTZ Camera Remove for Maintenance ..............

  • Page 6: Chapter 1 - Introduction

    Chapter 1 — Introduction 1.1 Features  Built-in optical power zoom camera with True Night Shot function  240 Preset positions with the individual camera AE setup  8 Tours consist of Presets, Patterns, Auto Scans and other Tours can be programmed with over 300 functions and preset locations.

  • Page 7: Chapter 2 - Installation And Configuration

    Chapter 2 — Installation and Configuration 2.1 Package Contents The package contains the following. * Dome Camera * Instruction Manual (This Document) * Accessory Kit & Connector 1) Torx wrench 2) 2-Pin Terminal Block 3) 3-Pin Terminal Block 4) 4-Pin Terminal Block 5) 5-Pin Terminal Block * Install Adaptor...

  • Page 8: Mounting The Camera

    2.2 Mounting the Camera You need one optional mount kit of the wall mount and the ceiling mount to install. The wall or ceiling mount must be attached to a structural object such as hard wood, concrete that will support the weight of the mount and dome camera. The use of a solid backboard is recommended when attaching to gypsum walls.

  • Page 9: Wall Mounting

    2.2.1 Wall Mounting The wall mounting plate must be attached to a structural object such as concrete that will support the weight of the mount and dome camera. 1. Select a suitable mounting location and verify there is sufficient cable to reach the middle of the Wall Mount.

  • Page 10: Ceiling Mounting

    2.2.2 Ceiling Mounting The ceiling mounting plate must be attached to a structural object such as concrete that will support the weight of the mount and dome camera. 1. Select a suitable mounting location and verify there is sufficient cable to connect with cables...

  • Page 11: Ptz Camera Remove For Maintenance

    2.2.3 PTZ Camera Remove for Maintenance In order to perform maintenance or change hardware setting, remove the PTZ camera as shown below 1. Open the cover. 2. Remove the screw. 3. To detach PTZ camera from 4. Change the setting of DIP switch. external housing, please turn it counterclockwise.

  • Page 12: Basic Configuration Of Dome Camera System

    2.3 Basic Configuration of Dome Camera System Connector Wire Color Description 24VAC or 12VDC+ 3-pin terminal block WHITE 24VAC or 12VDC- PINK HEATER & FAN 3-pin terminal block (24VAC) BROWN GREEN TX+: RS485+ (A) 2-pin terminal block BLUE TX-: RS485- (B) GRAY ALARM INPUT 1 VIOLET...

  • Page 13: Setting Dome Camera (Dip Switch)

    2.4 Setting Dome Camera (DIP Switch) You can set video type with D1 and termination with D2 in SW1. SW1-D1 Video Type SW1-D2 Termination NTSC Not Terminated Terminated The device which is connected at end of line, whether it is a dome camera or keyboard, must have the cable for communication terminated by setting the appropriate DIP switch.

  • Page 14: Setting Dome Camera Address (Id)

    2.5 Setting Dome Camera Address (ID) To prevent damage, each dome camera must have a unique address (ID). The factory default setting is 1. Refer to ‘3.10 Dome Communication’ section for detailed information. 2.6 Connections • Connecting to the RS-485 The dome camera can be controlled remotely by an external device or control system, such as a control keyboard, using RS-485 half-duplex serial communications signals.

  • Page 15: Getting Started

    2.7 Getting Started Once installed apply power to the dome camera. The dome camera will start a configuration sequence. STATUS of FUNCTION TITLE AF AE FOCUS and AE INFORMATION EMPTY DATA DISPLAY ALARM:1 ALARM DISPLAY CAMERA TITLE & ID DOMEID:0001 360.0 090.0 PAN &...

  • Page 16: Chapter 3 - Program And Operation

    Chapter 3 — Program and Operation 3.1 Dome Camera Selection IF you use the keyboard, before you program or operate a dome camera, you must select the dome camera by pressing No. + CAM keys. Example: Pressing 1 , 0 + CAM keys sequentially will select dome camera 10. The selected dome camera ID will be displayed on the LCD monitor of the keyboard.

  • Page 17: Auto Scan

    3.4 Auto Scan The Auto Scan supports up to 17 programmed angles at user-programmable speeds. AUTO SCAN SETUP NUMBER : 01 TITLE : A01 MODE : NORMAL SPEED 5 STEP START ANGLE : ----- ----- -- END ANGLE : ----- ----- -- SCAN DIR : CCW SWAP...
  • Page 18 5. Select “MODE” and “SPEED”. 6. Select “START ANGLE”. Press the IRIS Open key then the “CONTROL” displays. Move the desired position and the zoom position. Press the IRIS Close key then the “CONTROL” disappears. To adjust at the 0.1 degree interval, press the Tele or Wide key at the pan field and the tilt field.

  • Page 19: Preset

    3.5 Preset If you need to view specific places routinely, you should program Presets. A Preset is a programmed video scene with automatic pan, tilt, zoom, focus, and AE settings. In addition, Presets may be assigned the “home” position for the dome camera. As many as 240 Presets, whose positions are saved in the dome camera’s firmware, may be programmed.
  • Page 20 Select “MOTION SETUP” and press the Right or Left key. Then the MOTION setup displays. MOTION SETUP SENSITIVITY : 10 POSITION : ALL DELAY : 00 SEC OUTPUT : OFF HOLD TIME : 03 SEC EXIT(ESC TO EXIT) Set SENSITIVITY 00 ~ 20 Set POSITION ALL, CENTER...

  • Page 21: Tour

    3.6 Tour There are 8 programmable Tours. Each Tour consists of up to 40 Preset positions, Patterns, Scans or other Tours (second-level). Using second-level Tours, it can be expanded to over 300 functions in a single Tour. TOUR SETUP NUMBER : 01 TITLE : T01...
  • Page 22 You can expand the Tour sequence by calling other programmed Tours. NOTE: The speed applies in the vector mode only. NOTE: In the Tour mode, in conjunction with Preset and Auto Scan, you can make the camera travel from a Preset position to another Preset position at a specific speed. Example: Preset 001>002>003>004>005>006, Auto Scan 01 starts at Preset 002, ends at Preset 003, Auto Scan 02 starts at Preset 005, ends at Preset 006;...

  • Page 23: Pattern

    3.7 Pattern The Pattern feature records user control of the selected dome camera. Up to 8 Patterns can be stored and played back by pressing No. + PTRN keys subsequently. PATTERN SETUP (CTRL KEY) TITLE PERCENT 00.0% 00.0% 00.0% 00.0% 00.0% 00.0% 00.0%...

  • Page 24: Privacy Zone

    3.8 Privacy Zone Hide up to 16 unwanted scenes in a camera. There are four pages of Privacy Zone menu. Each page has 4 Privacy Zones. PRIVACY ZONE SETUP (CTRL KEY) METHOD COLOR BLOCK BLACK BLOCK BLACK ----- BLACK ----- BLACK NEXT PAGE SAVE AND EXIT(ESC TO CANCEL)

  • Page 25: Camera Menu

    3.9 Camera Menu CAMERA SETUP FOCUS CONTROL WB CONTROL AE CONTROL CAMERA CONTROL SHARPNESS : 03 DIGITAL ZOOM : OFF IMAGE FLIP : OFF PRESET FREEZE : OFF RESOLUTION : 1080P/25 SAVE AND EXIT(ESC TO CANCEL) SHARPNESS The higher the value, the more edges in the picture will be enhanced. (0 ~ 10) DIGITAL ZOOM OFF: Zoom range is limited to the optical.
  • Page 26 • WB (White Balance) CONTROL WB SETUP MODE : AUTO R GAIN : --- B GAIN : --- SAVE AND EXIT(ESC TO CANCEL) MODE AUTO, MANUAL, INCANDESCENT, FLUORESCENT, OUTDOOR AUTO Computes the white balance value output using color information from the entire screen automatically. INCANDESCENT Auto white balance mode that is compatible with incandescent lamps.
  • Page 27 The NIGHT SHOT option removes the IR cutoff filter of the camera and makes the camera sensitive to near infrared. AUTO Camera goes in to B&W mode at low light. GLOBAL Controlled by the keyboard (NOTE: GLOBAL function operates F2E protocol only) The operator can enable NIGHT SHOT for all dome cameras at the same time.

  • Page 28: Dome Communication

    3.10 Dome Communication To prevent damage, each dome camera must have a unique address (ID). The factory default setting is 1. DOME COMMUNICATION DOME ID : 0001 PROTOCOL : AUTO BAUDRATE : 9600 PARITY : NONE SAVE AND EXIT(ESC TO CANCEL) DOME ID 1 ~ 3999 PROTOCOL...

  • Page 29: Alarm

    3.11 Alarm ALARM SETUP (CTRL KEY) NO PRI FUN IN HOLD LATCH 001 NO OUT1 03 --- OFF --- OFF --- OFF DWELL : 03 SEC ALARM OUT SETUP SAVE AND EXIT(ESC TO CANCEL) NO (Number) Alarm input number PRI (Priority) The lower number has higher priority.

  • Page 30: Dome Setup

    3.12 Dome Setup CONFIGURATION MENU HOME FUNCTION SETUP VIEW ANGLE SETUP ORIGIN OFFSET FACTORY DEFAULT DOME RESET OSD DISPLAY SYSTEM SETUP FUNCTION RUN SYSTEM INFORMATION EXIT(ESC TO EXIT) • HOME FUNCTION SETUP HOME FUNCTION SETUP FUNCTION : NONE NUMBER : --- WAITING TIME : 120 SEC ENABLE...
  • Page 31 • VIEW ANGLE SETUP VIEW ANGLE SETUP PANNING RANGE FLIP : 90 TILT ANGLE LIMIT : 00 SAVE AND EXIT(ESC TO CANCEL) FLIP OFF, AUTO, 90, 100, 110, 120 OFF: The dome camera moves until 90 vertically. AUTO: When the camera reaches the floor directly above the moving object, it will stop. At that time, release the controller instantly and pull it down again to run the auto-flip function.
  • Page 32 • ORIGIN OFFSET OFFSET SETUP (CTRL KEY) PAN OFFSET : 000.0 TILT OFFSET : 000.0 ENABLE : OFF SAVE AND EXIT(ESC TO CANCEL) This feature is useful to align a new dome camera exactly the same as the previously installed dome camera.
  • Page 33 • OSD DISPLAY OSD DISPLAY SETUP LANQUAGE : ENGLISH TITLE : DOMEID DOME OSD : ON FOCUS/EXPOSURE : OFF COLOR : YELLOW SAVE AND EXIT(ESC TO CANCEL) LANGUAGE Select the desired language. TITLE up to 6 characters DOME OSD ON, POSITION, ON(ZOOM), ZOOM, OFF All display or title will disappear when DOME OSD DISPLAY is set to OFF.
  • Page 34 MOTOR SETUP Motor Setup menu provides the pan and tilt speed of a camera. User can set the desired speed with pressing the Right or Left key. MOTOR SETUP PROPORTIONAL P/T P/T MODE : NORMAL SLOW PAN MAX SLOW TILT MAX NORMAL PAN MAX NORMAL TILT MAX TURBO PAN MAX...
  • Page 35 ORIGIN CHECK If you find the dome camera in the wrong position during operation, execute this origin check and the dome camera will return to the right position after the origin check operation. ORIGIN CHECK ARE YOU SURE ? CANCEL •...
  • Page 36 ALARM OUT SETUP OUT1 : ALARM OUT2 : 1 MIN EXIT(ESC TO EXIT) You press the IRIS Open key then that alarm out operates during the setting time only. • SYSTEM INFORMATION SYSTEM INFORMATION CAMERA TYPE : xxxx-Vx.xx H/W VERSION : Vx.xx-xxxx ROM VERSION : Vx.xxxxxx...

  • Page 37: Appendix A - Specifications

    Appendix A — Specifications Model TC-S1283WHX IMAGE Optical Zoom 30X Lens 4.3mm ~ 129.0mm Angle of View 61.8° (H) ~ 2.9° (H) Type 1/2.8" SONY STARVIS CMOS sensor Image Sensor Pixels 1945 (H) x 1097 (V) Color : 0.35 Lux @ 50IRE Min.
  • Page 38 Operating Humidity 0 ~ 90%RH (Non-condensing) Operating Temperature -30C ~ 55C Boot Up Temperature 0C ~ 55C Camera 12VDC, 24VAC Power Supply Heater & Fan 24VAC Camera 1.0A (12.0W) @ 12VDC, 24VAC Power Consumption Heater & Fan 2.2A (50.0W) @ 24VAC Dimensions See dimension drawing Net Weight...

  • Page 39: Appendix B - Troubleshooting

    Appendix B — Troubleshooting If problems occur, verify the installation of the camera with the instructions in this manual and with other operating equipment. Isolate the problem to the specific piece of equipment in the system and refer to the equipment manual for further information. Problem Possible Solution Verify that power is connected to all pieces of equipment...
  • Page 40 50304250A...
