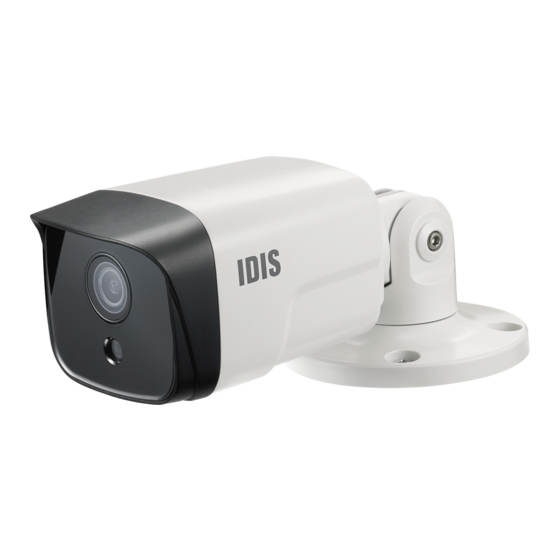

Idis DC-T4516WRX Operation Manual
  1. Manuals
  2. Brands
  3. Idis Manuals
  4. Security Camera
  5. DC-T4516WRX
  6. Operation manual

Idis DC-T4516WRX Operation Manual

Hide thumbs Also See for DC-T4516WRX:
Table of Contents

Advertisement

Quick Links

Download this manual
Network
Camera
Operation Manual
DC-T4516WRX
DC-T4516WRX-A
Powered by

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DC-T4516WRX and is the answer not in the manual?

Questions and answers

Related Manuals for Idis DC-T4516WRX

Summary of Contents for Idis DC-T4516WRX

  • Page 1 Network Camera Operation Manual DC-T4516WRX DC-T4516WRX-A Powered by...
  • Page 2 Before reading this manual This is a basic operation manual for use of an IDIS network camera. Users who are using this product for the first time, as well as users with experience using comparable products, must read this operation manual carefully before use and heed to the warnings and precautions contained herein while using the product.
  • Page 3 Before reading this manual Safety Precautions WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Important Safeguards 1.
  • Page 4 IDIS Co., Ltd. reserves all rights concerning this manual. Use or duplication of this manual in part or whole without the prior consent of IDIS Co., Ltd. is strictly prohibited. Contents of this manual are subject to change without prior notice for reasons such as functionality enhancements.

  • Page 5: Table Of Contents

    Table of Contents Part 1 - Remote Setup ........7 Remote Setup .
  • Page 6 Part 2 - IDIS Web ........

  • Page 7: Part 1 - Remote Setup

    Configure basic network camera settings and all other system settings. Screen images may vary depending on the model. Launch the IDIS Discovery program and then from the main screen, select a network camera whose settings you wish to change. Click on the Setup icon.

  • Page 8: Quick Setup

    Part 1 - Remote Setup Quick Setup From the Remote Setup screen, select the menu on the left to display the current settings. Select an option under the menu to change the corresponding settings. Once you have changed Quick Setup allows you to set up System, Network, the settings, click Save to apply the settings.

  • Page 9: General

    There may be some more settings that cannot be changed, too. If you want to change those settings, connect to the camera by using the IDIS Discovery program. - ONVIF Event Type •...

  • Page 10: Date/Time

    Part 1 - Remote Setup Date/Time User/Group • Date/Time: Change the camera’s date/time settings and display formats and configure the time zone and • User/Group: Change remote camera control daylight saving time settings. Click Save to apply the permission settings for users and user groups. changes right away.

  • Page 11: Network

    Part 1 - Remote Setup Network • User/Group settings can only be configured by users belonging to the Administrator group. • There is no default password for the Administrator group's admin user. • Standard groups (Administrator, Operator, and User) cannot be edited or deleted. Authorities assigned here apply identically to ONVIF protocol user groups.

  • Page 12: Ip Address

    Part 1 - Remote Setup IP Address IPv6 IPv4 • Check Use to activate IPv6. • Type: Select the type of network you are using. If this option has been changed, click Save to apply the • Type: Select the type of network you are using. If this current settings, and then restart Remote Setup.

  • Page 13: Fen

    Web browser. (If you can not access special characters, you can access by changing the encoding.) The FEN Server operated by IDIS is a service to its clients and may go offline without notice for server update purposes or due to an unexpected failure.

  • Page 14: Port/Qos

    Web / HTTP ports are enabled by default and cannot be disabled. By enabling IDIS Web and RTSP ports, you will be able to use the IDIS Web program or a media player that supports RTSP (Real-Time Streaming Click Apply to use the recommended port numbers.

  • Page 15: Bandwidth Control

    Part 1 - Remote Setup Bandwidth Control • In a WAN environment, it is recommended that you use the UPnP function if you record video by using the FEN function or FEN connection is not smooth. Regulates the camera’s network bandwidth use based Otherwise, monitoring or recording might not be on network traffic fluctuations.

  • Page 16: Security

    Part 1 - Remote Setup Security IEEE 802.1X Select the IEEE 802.1X option to enable IEEE 802.1X network connection authentication. • IP Filtering: Select this option to enable IP Filtering. IP Filtering allows camera access from certain IP addresses and blocks access from others. •...

  • Page 17: Video

    Part 1 - Remote Setup Video Camera Image Sensor Configure Image Sensor settings. Configure Camera, Streaming, Webcasting, MAT, and Privacy Masking options. • Mode: Choose resolution. 16:9 for 4M and 4:3 for 5M. When changing sensor mode, some settings will be reset to default.
  • Page 18 Part 1 - Remote Setup White Balance Exposure Configure White Balance settings. Configure Exposure settings. • AE Target Gain: Specify exposure compensation’s • Preset: Use preconfigured white balance settings. target gain. Exposure is compensated automatically based on the specified target gain. Higher the gain, - Auto: Allow the system to adjust the white brighter the images.
  • Page 19 Part 1 - Remote Setup • Switching Mode: Change the switching mode of Day & Night daytime and nighttime. In normal mode, daytime/ Configure Day & Night settings. nighttime is switched through the amount of light received by the ambient light sensor. In advanced mode, it is switched through the amount of light and the analysis of the camera video.

  • Page 20: Streaming

    Part 1 - Remote Setup Streaming Miscellaneous Configure Miscellaneous settings. • Primary/Secondary/Tertiary/Quaternary: Multistreaming is supported. Enable/disable • IR strength: Set the brightness of the IR LED. The streaming use. The stream you set first has priority. higher the value is set, the brighter it is. •...

  • Page 21: Webcasting

    Part 1 - Remote Setup feature has been enabled. Webcasting • Intelligent Codec: Analyze real-time video intelligently to minimize bitrate while maintaining Use the webcasting service to view live images from the frame rate and image quality. camera on a web site. In environments where there are many video changes, image quality can be reduced.

  • Page 22: Mat

    Part 1 - Remote Setup Privacy Masking Select the MAT option to use the MAT (Motion Adaptive Select Privacy Masking to set up a privacy mask over Transmission) feature during video transmission and a specific area. The section on which a privacy mask is recording.

  • Page 23: Audio

    Part 1 - Remote Setup Audio Input/Output DC-T4516WRX model only Configure audio in/out settings. • Audio Codec: Select an audio codec. • Input: Select an option and then adjust the volume • Output: Select an option and then adjust the volume.

  • Page 24: Event Action

    Part 1 - Remote Setup Event Action Alarm out Designate event detection alert actions. Select Alarm Out to enable alarm out. • Dwell Time: Designate the alarm out duration. When an event occurs, alarm out will be generated for the specified duration.

  • Page 25: Email

    Select Email to send out emails. Select Remote Callback to send callback messages to a remote system. • Not supported from the IDIS Web program. • The camera must be registered to the remote system in order to use the Remote Callback feature.

  • Page 26: Audio Alarm

    Part 1 - Remote Setup Audio Alarm FTP Upload Select FTP Upload to upload .jpg image of the event DC-T4516WRX model only detected to an FTP server. Select Audio Alarm to generate audio. • FTP Server: Click Add to register a new FTP server.

  • Page 27: Record

    Part 1 - Remote Setup - Upload Frequency: Activated only when Upload Record Type has been set to Always. Designate the upload speed. The specified number of images will be Select Record to record video on the SD memory card. uploaded to the FTP server during the specified First, make sure that an SD memory card (Class 6 or period of time.
  • Page 28 • Recordings saved on the SD memory card can be cause the recording to exceed the 60MB limit and searched and played back from the IDIS Solution stop before the end of the specified recording Suite Compact program or remotely from the duration.

  • Page 29: Event

    • Not supported from the IDIS Web program. • The camera must be registered to the remote system in order to use the Remote Callback feature.

  • Page 30: Motion Detection

    • Not supported from the IDIS Web program. • The camera must be registered to the remote system in order to use the Remote Callback •...

  • Page 31: Trip-Zone

    Part 1 - Remote Setup Trip-Zone • Not supported from the IDIS Web program. • The camera must be registered to the remote system in order to use the Remote Callback Select Trip-Zone to configure trip zone event settings. feature.

  • Page 32: Audio Detection

    • Not supported from the IDIS Web program. • The camera must be registered to the remote system in order to use the Remote Callback...

  • Page 33: Tampering

    • Not supported from the IDIS Web program. • The camera must be registered to the remote system in order to use the Remote Callback feature.

  • Page 34: System Event

    Action must be configured correctly in order to send out emails and messages. • Remote Callback is not supported on IDIS Web. • The camera must be registered to the remote system in order to use the Remote Callback feature.

  • Page 35: Part 2 - Idis Web

    – Tools → Internet Options → Advanced → Security → Use TLS 1.0 (select) • If connecting by entering an IP address and a port number, you can connect by entering just the IP address if IDIS Web connection port number has been set to 80 (443 when entering https).
  • Page 36 Run as administrator option. Otherwise, certain IDIS Web functions might not be available. • When running IDIS Web, the bottom section of the screen may get cut off if the address bar or the status bar is shown.

  • Page 37: Web Live Mode

    A remote web monitoring program that allows you to monitor images from remote locales in real-time. & Press to terminate IDIS Web. Place the mouse pointer on the logo to check IDIS Web's version. TYPE 1 Displays the current time. Click to view the video in full screen.
  • Page 38 Part 2 - IDIS Web This function is not supported. Used to adjust live video quality. Click to control the alarm out device connected to the camera. Event status window at the bottom of the screen displays a list of events detected at remote locales.

  • Page 39: Web Search Mode

    113.49 NC-D320-IP & Press to terminate IDIS Web. Place the mouse pointer on the logo to check IDIS Web's version. TYPE 1 Displays time information of the video recording from the remote locale. Click to view the video in full screen. Press the ESC key on the keyboard to return to the previous screen.
  • Page 40 Part 2 - IDIS Web Adjust image brightness. Apply image filters (Sharpen, Blur, Equalizer, Interpolation, and Revert) to the images. Image calibration is applied only during the paused state. TYPE 1 Use the calendar to search for video recordings by specific dates.

  • Page 41: Part 3 - Appendix

    Part 3 - Appendix Setup Menu Tree (Remote Setup) Remote Setup Quick Setup System Network Video Audio System General Date/Time User/Group Network IP Address Port/QoS Bandwidth Control Security IEEE 802.1X Video Camera Streaming Webcasting Privacy Masking Audio Input/Output Event Action Alarm Out Email Remote Callback...

  • Page 42: Index

    Part 3 - Appendix Index Quality Bitrate Control Remote Port Resolution RTSP Port Camera Name Compression Date/Time DSCP Time Sync FEN Name Use FEN FEN Server Use HTTPS Frame Rate User/Group Use UPnP IDIS Web port IPFiltering Network Bandwidth Limit ONVIF Protocol V1.0...
  • Page 43 IDIS Co., Ltd. For more information, please visit at www.idisglobal.com...
