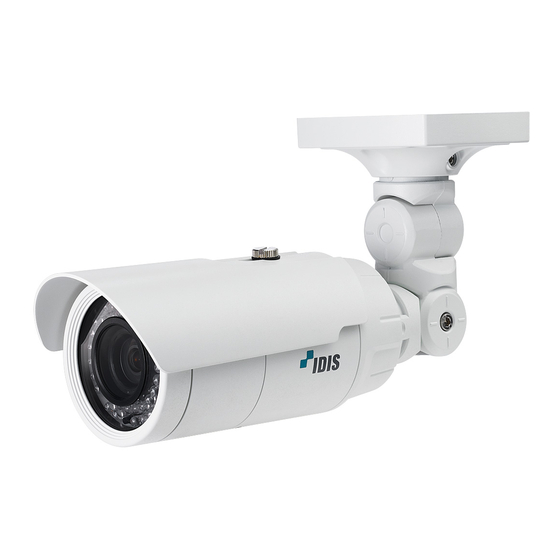

  • Page 1 Network Camera Operation Manual DC-T1232WR / DC-T1234WR / DC-T1233WHR Powered by...

  • Page 2: Safety Symbols

    Before reading this manual This is a basic operation manual for use of an IDIS network camera. Users who are using this product for the first time, as well as users with experience using comparable products, must read this operation manual carefully before use and heed to the warnings and precautions contained herein while using the product.

  • Page 3: Safety Precautions

    Before reading this manual Safety Precautions WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Important Safeguards 1.

  • Page 4: Fcc Compliance Statement

    IDIS Co., Ltd. reserves all rights concerning this manual. Use or duplication of this manual in part or whole without the prior consent of IDIS Co., Ltd. is strictly prohibited. Contents of this manual are subject to change without prior notice for reasons such as functionality enhancements.

  • Page 5: Table Of Contents

    Table of Contents Table of Contents Part 1 - Remote Setup ........7 Camera Protocol.
  • Page 6 Part 2 - IDIS Web ........

  • Page 7: Part 1 - Remote Setup

    - The DirectIP™ NVR also allows you to control all camera settings directly from the NVR, without the need for a computer. Launch the IDIS Discovery program and from the list, For more information on configuring camera settings select a camera whose protocol you wish to change.

  • Page 8: Remote Setup

    Part 1 - Remote Setup Remote Setup Quick Setup Launch the IDIS Discovery program and then from the main screen, select a network camera whose settings you wish to change. Click on the Setup icon. Select Remote Setup from the Setup menu to load the Remote Setup screen.

  • Page 9: System

    There may be some more settings that cannot be changed, too. If you want to change those settings, connect to the camera by using the IDIS Discovery program.

  • Page 10: Date/Time

    Part 1 - Remote Setup • Setup Date/Time - Load Default Setup: Restores all settings other than Date/Time to their factory defaults. Select Include Network Setup to load default network settings as well. For more information on network setup, refer to the Network on page 12. - Import Setup: Open a setup file and apply its settings to the camera.

  • Page 11: User/Group

    Part 1 - Remote Setup User/Group • User/Group settings can only be configured by users belonging to the Administrator group. • There is no default password for the Administrator group's admin user. • Standard groups (Administrator, Operator, and User) cannot be edited or deleted. Authorities assigned here apply identically to ONVIF protocol user groups.

  • Page 12: Network

    Part 1 - Remote Setup Network IP Address Change the network settings, enable FEN and security • Type: Select the type of network you are using. If features, and control network bandwidth use. this option has been changed, Remote Setup will terminate after applying the current settings.

  • Page 13: Fen

    Part 1 - Remote Setup • DNS Server: Enter the DNS server’s IP address. By using the DNS server, you will be able to use domain names instead of IP addresses when configuring the Select Use FEN to enable the FEN feature. FEN, time, or SMTP server.

  • Page 14: Port/Qos

    By enabling IDIS Web and RTSP ports, field and check the entered name's availability. you will be able to use the IDIS Web program or In addition, you will be prompted with an error a media player that supports RTSP (Real-Time message if you do not enter a FEN name or enter Streaming Protocol) service to connect to the camera.
  • Page 15 – Via Mobile Device: Launch the web browser and then enter http://IP Address:IDIS Web Port Number/ (If Use HTTPS has been enabled, enter https instead of http). Camera's IDIS Web port number and RTSP port number must be configured correctly in order to establish a connection this way.

  • Page 16: Bandwidth Control

    Part 1 - Remote Setup Bandwidth Control Security Regulates the camera’s network bandwidth use based on network traffic fluctuations. • IP Filtering: Select this option to enable IP Filtering. IP Filtering allows camera access from certain IP addresses and blocks access from others. Select Network Bandwidth limit and then specify the maximum bandwidth.

  • Page 17: Ieee 802.1X

    Part 1 - Remote Setup • SSL: Select this option to enable SSL (Secure Sockets IEEE 802.1X Layer). Enabling this option applies SSL protocol protection on data transmitted out. However, Select the IEEE 802.1X option to enable IEEE 802.1X programs and systems that do not support SSL will network connection authentication.

  • Page 18: Video

    Part 1 - Remote Setup Video Camera Image Sensor Configure Image Sensor settings. Configure Camera, Streaming, Webcasting, MAT, and Privacy Masking options. • Mirroring: Select Horizontal Reverse or Vertical Reverse to flip the image horizontally or vertically. • Pivot: Enable this option and choose the direction of the pivot.
  • Page 19 Part 1 - Remote Setup • Backlight Compensation: Enable/disable the White Balance Backlight Compensation feature. Configure White Balance settings. - OFF: Disables the BLC function. - ON: When images are too bright overall due to backlight, objects are exposed brighter under backlight circumstances.
  • Page 20 Part 1 - Remote Setup • Anti-Flicker: If the lights in the area where the Exposure camera is located use alternating current, specify Configure Exposure settings. the frequency of the lights to minimize flickering. Matching the frequencies can reduce flickering. (NTSC: 60Hz, PAL: 50Hz) •...
  • Page 21 Part 1 - Remote Setup • IR Cut Filter: When the IR cut filter is enabled, the Day & Night camera blocks infrared light. Images can be displayed Configure Day & Night settings. clearly in various lighting conditions by blocking infrared light in bright light conditions and allowing infrared light in low light conditions.

  • Page 22: Streaming

    Part 1 - Remote Setup Streaming Miscellaneous Configure Miscellaneous settings. • Video Output: Select a video output signal format. • Primary/Secondary/Tertiary: Multistreaming is supported. (priority: Primary > Secondary > Tertiary). • Smart IR: Set the brightness of the IR LED. Enable/disable streaming use.
  • Page 23 Part 1 - Remote Setup • Quality: Choose a quality setting for video streaming. Select On and then specify the streaming area’s resolution. • Bitrate Control: Choose a bitrate control mode for H.264 compression. - CBR (Fixed Bitrate): Maintains the current bitrate regardless of motion change in the video.

  • Page 24: Webcasting

    Part 1 - Remote Setup Webcasting Use the webcasting service to view live images from the Select the MAT option to use the MAT (Motion Adaptive camera on a web site. Transmission) feature during video transmission and recording. • HTML Code: Copy and paste the html code shown on •...

  • Page 25: Privacy Masking

    Part 1 - Remote Setup • Frame Rate: Designate the frame rate to be used Privacy Masking between the end of the Inactivity Period and the next motion detection. When the slow shutter mode is Select Privacy Masking to set up a privacy mask over enabled under Video >...

  • Page 26: Audio Dc-T1233Whr Only

    Audio Event Action DC-T1233WHR only Designate event detection alert actions. Configure audio in/out settings. DC-T1232WR model In/Out DC-T1234WR model • Audio Codec: Select an audio codec. • Input: Select an option and then an audio input source (microphone or line-in). Adjust the volume.

  • Page 27: Alarm-Out

    Part 1 - Remote Setup Alarm-out DC-T1233WHR model DC-T1233WHR / DC-T1234WR only Select Alarm Out to enable alarm out. • Dwell Time: Designate the alarm out duration. When an event occurs, alarm out will be generated for the specified duration. •...

  • Page 28: Email

    Select Email to send out emails. Select Remote Callback to send callback messages to a remote system. • Not supported from the IDIS Web program. • The camera must be registered to the remote system in order to use the Remote Callback feature.

  • Page 29: Audio Alarm

    Part 1 - Remote Setup Audio Alarm FTP Upload DC-T1233WHR only Select FTP Upload to upload .jpg image of the event detected to an FTP server. Select Audio Alarm to generate audio. • FTP Server: Click Add to register a new FTP server. •...
  • Page 30 Part 1 - Remote Setup - Resolution/Quality: Choose the resolution and quality of the images to upload to the FTP server. Range of resolution settings you can use here can vary depe nding on the resolution setting applied under Video > Streaming. - Base File Name: Enter a name for the files to be uploaded to the FTP server and then choose file identification options.

  • Page 31: Event

    Image Attachment option to attach a jpg image of the event detected to the email. • Not supported from the IDIS Web program. • The camera must be registered to the remote system in order to use the Remote Callback feature.

  • Page 32: Motion Detection

    - FTP Upload: Select this option if you wish to assumed as events. upload images to the FTP server. DC-T1232WR model - Record: Select this option to record video. Event Action settings must be configured correctly in order to perform event actions.
  • Page 33 • Not supported from the IDIS Web program. • The camera must be registered to the remote system in order to use the Remote Callback feature.

  • Page 34: Trip-Zone

    Select Trip-Zone to configure trip zone event settings. With trip zone event enabled, motion detected inside/ outside the selected area will be assumed as an event. DC-T1232WR model • Sensitivity: Select daytime and nighttime motion detection sensitivity levels. Higher values will result in more sensitive motion detection.

  • Page 35: Audio Detection Dc-T1233Whr Only

    • Not supported from the IDIS Web program. • The camera must be registered to the remote system in order to use the Remote Callback feature.

  • Page 36: Tampering

    • Not supported from the IDIS Web program. • The camera must be registered to the remote system in order to use the Remote Callback feature.
  • Page 37 • Not supported from the IDIS Web program. • The camera must be registered to the remote system in order to use the Remote Callback feature.

  • Page 38: System Event

    Action must be configured correctly in order to send out emails and messages. • Remote Callback is not supported on IDIS Web. • The camera must be registered to the remote system in order to use the Remote Callback feature.

  • Page 39: Part 2 - Idis Web

    Part 2 - IDIS Web IDIS Web is a program that allows you to view video from remote locations over the Internet and can be accessed on a Internet Explorer. Microsoft System requirements for running IDIS Web are as follows: •...
  • Page 40 ® • If running IDIS Web on Internet Explorer 7.0, the bottom section of the screen may get cut off if the address bar or the status bar is shown. In this case, change Internet Options so that the address bar or the status bar is hidden. (Tools →...

  • Page 41: Web Live Mode

    2013-05-29 16:25:22 2013-05-29 16:25:22 Press to terminate IDIS Web. Place the mouse pointer on the logo to check IDIS Web's version. TYPE 1 Displays the current time. Click to view the video in full screen. Press the ESC key on the keyboard to return to the previous screen.
  • Page 42 Part 2 - IDIS Web Indicates the camera's number. Used to control zoom at a remote location. Used to adjust live video quality. DC-T1233WHR / DC-T1234WR only Click to control the alarm out device connected to the camera. Event status window at the bottom of the screen displays a list of events detected at remote locales.

  • Page 43: Part 3 - Appendix

    Part 3 - Appendix Setup Menu Tree (Remote Setup) DC-T1232WR model DC-T1234WR model Remote Setup Remote Setup Quick Setup Quick Setup System System Network Network Video Video System System General General Date/Time Date/Time User/Group User/Group Network Network IP Address IP Address...
  • Page 44 Part 3 - Appendix DC-T1233WHR model Remote Setup Quick Setup System Network Video Audio System General Date/Time User/Group Network IP Address Port/QoS Bandwidth Control Security IEEE 802.1X Video Camera Streaming Webcasting Privacy Masking Audio In/Out Event Action Email Remote Callback Audio Alarm FTP Upload Event...

  • Page 45: Index

    Part 3 - Appendix Index ONVIF Protocol Admin/Watch/Recording/Search Ports Quality Bitrate Control Resolution RTSP Port Camera Name Compression Date/Time Time Sync DSCP Use FEN FEN Name Use HTTPS FEN Server User/Group Frame Rate Use UPnP IDIS Web Port IPFiltering Network Bandwidth Limit V1.3...
