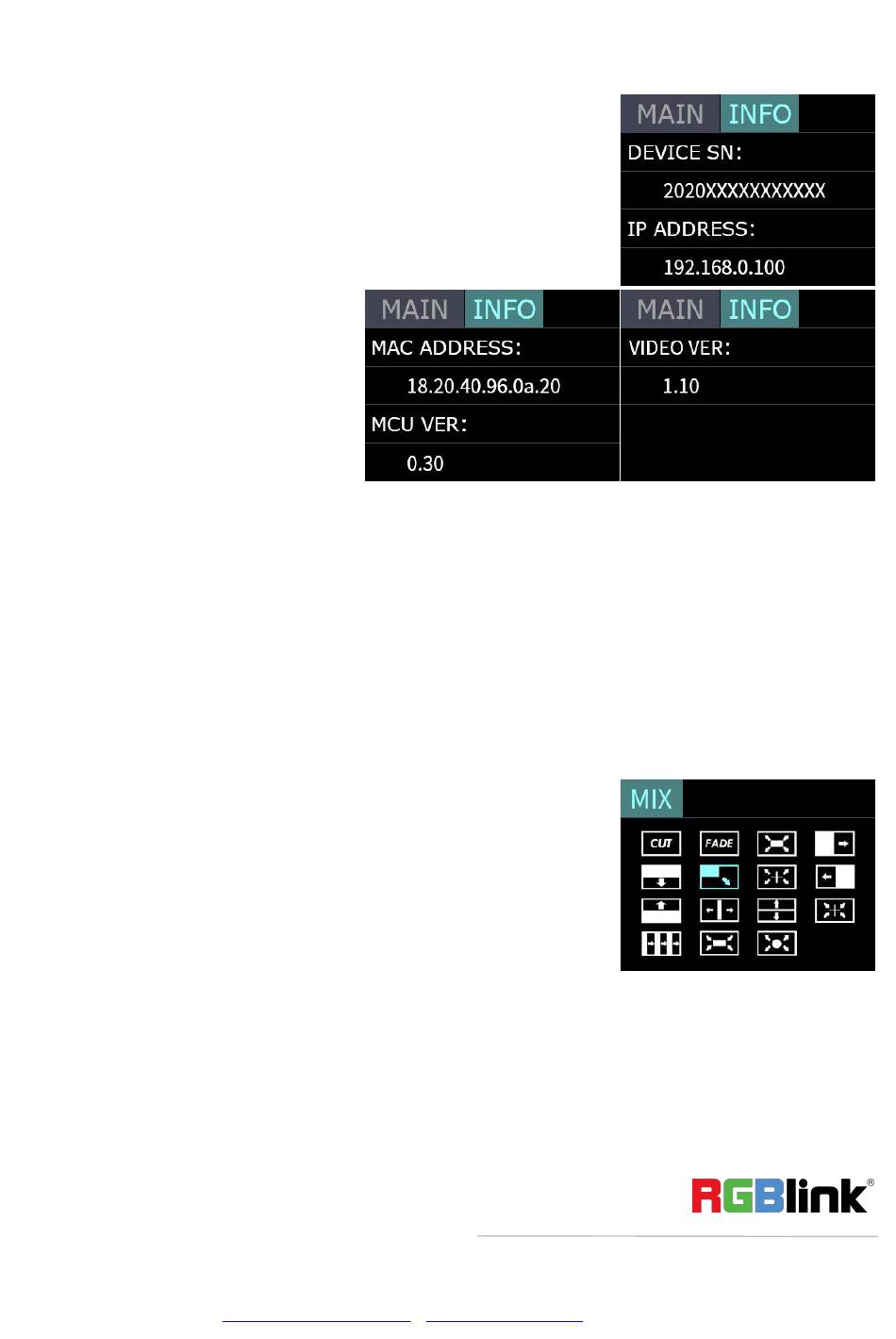

INFO

INFO:show the SN, IP,
MAC,MCU vesion and
VIDEO version.

Button S

Push button S, the TFT will show the transition effect menu <MIX>.The <MIX> led indicator beside
will light up. Push again, it will skip to next menu MODE, and again to PIP and again back to MIX
unless the device got license, it will skip to FX (Additonal features). The led indicators beside light
up meaning the corresponding feature menu is open. Use knob to select and confirm the desired
items after it enters the menu.
MIX
Push button S once to open up the transition
effect menu, Use knob to select the desired
transition effect icon and push the knob to
confirm.
MODE
Push the button S twice to open up MODE menu.
MODE:FAST or T-Bar
TIME:0.5~5.0S
Choose FAST, the switching will be with transition
effect in set time.
Choose T-Bar, the switching will be with selected
transiton effect by pushing T-Bar
