INSTRUCTION MANUAL

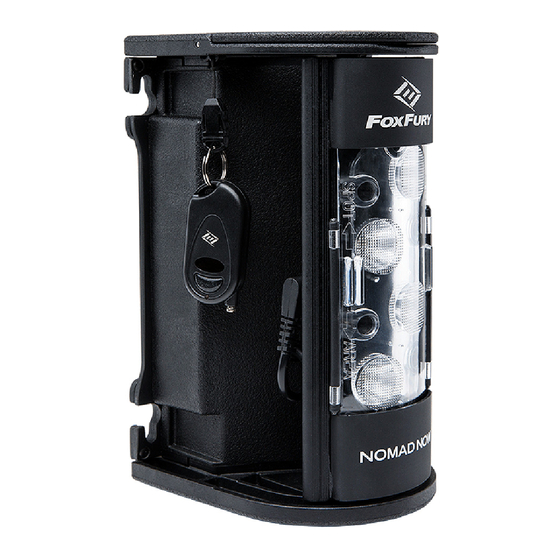

NOMAD
MOUNT
P/N 85-048
Please read below before using
your Nomad NOW Utility Mount as it
relays beneficial operating and safety
information.
PHYSICAL CHARACTERISTICS
•
Nylon 66 construction
•
10 oz (308 g)
INCLUDED
•
(4) M6 X 20 mm bolt
•
(4) M6 flat washer
INSTALLATION OF UTILITY MOUNT
1.
Install two M6 bolts and washers
on the left side of the mount.
Install bolts so they are only
threaded in 2-3 turns, enough to
hold them in position.
2.
Place the NOW over the installed
M6 bolts and washers. NOTE:
Power/Mode Switch is facing
upward for easy access when
attached to utility bucket. The flat
washer should live between the
NOW and the head of the M6 bolt.
3.
Slide the utility mount to the left,
NOW UTILITY
®
independent of the NOW light,
placing it in the locked position.
4.
Tighten and secure the two bolts,
respecting the alignment on the
opposite side of the utility mount.
5.
Insert and tighten the remaining
two M6 bolts and washers. The
NOW and Utility mount should be
combined into one assembly .
6.
Place assembly over the utility
bucket. Pull back on the rear wall,
spreading the front and back
halves.
7.
Slide utility mount assembly over
the lip of the bucket and press
down firmly .
8.
The utility mount assembly should
now be ready for use in the
field. The NOW light head can be
adjusted angling the light up or
down.
9.
The utility mount assembly can
be removed by reversing the
previous 8 steps. Please be aware
