Device overview

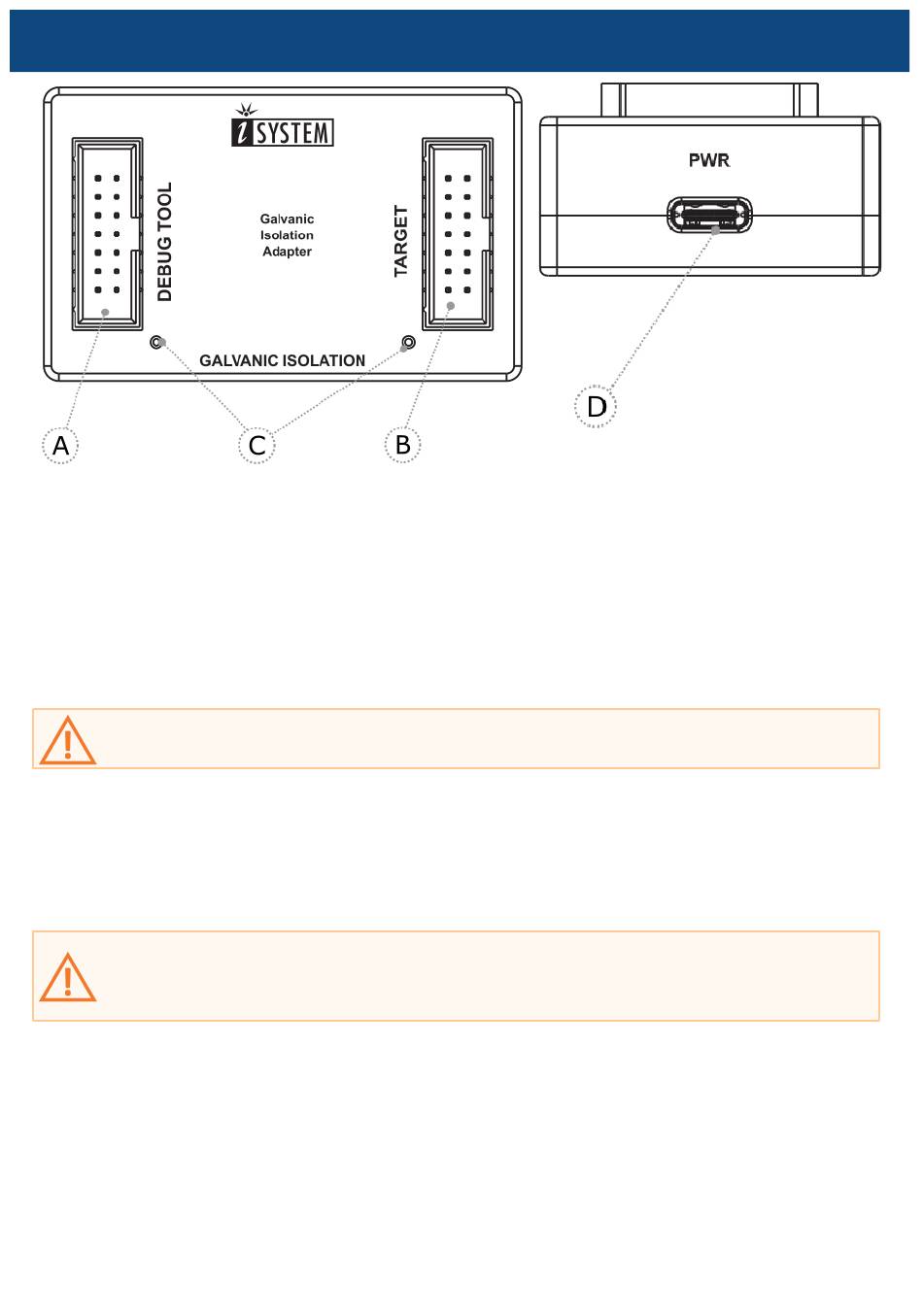

The top face of the Galvanic Isolation Adapter features:
A – DEBUG TOOL connector.
B – TARGET connector.
C – LED lights indicate power supply status.
If LEDs on the Galvanic Isolation Adapter are OFF, immediately turn everything OFF!
The side face of the Galvanic Isolation Adapter features:
D – USB-C Power supply socket (PWR).
Use only original iSYSTEM USB-C Power supply for powering and connecting with the
Galvanic Isolation Adapter, otherwise the primary functionality of the Galvanic Isolation
Adapter would be counteracted.
