2 Communication between electronic load and PC

Before using the remote operation mode, please make sure that the baud rate and communication address
in electronic load are the same as in the computer software, otherwise, the communication will fail, you can
change the baud rate and communication address from the front panel or from computer.
1. Address: the range is from 0 to 254, default setting is 0
2. Baud rate: 4800,9600,19200 and 38400 are selectable
3. Data bit: 8 bit
4. Stop bit: 1
5. Parity: None
Parity=None

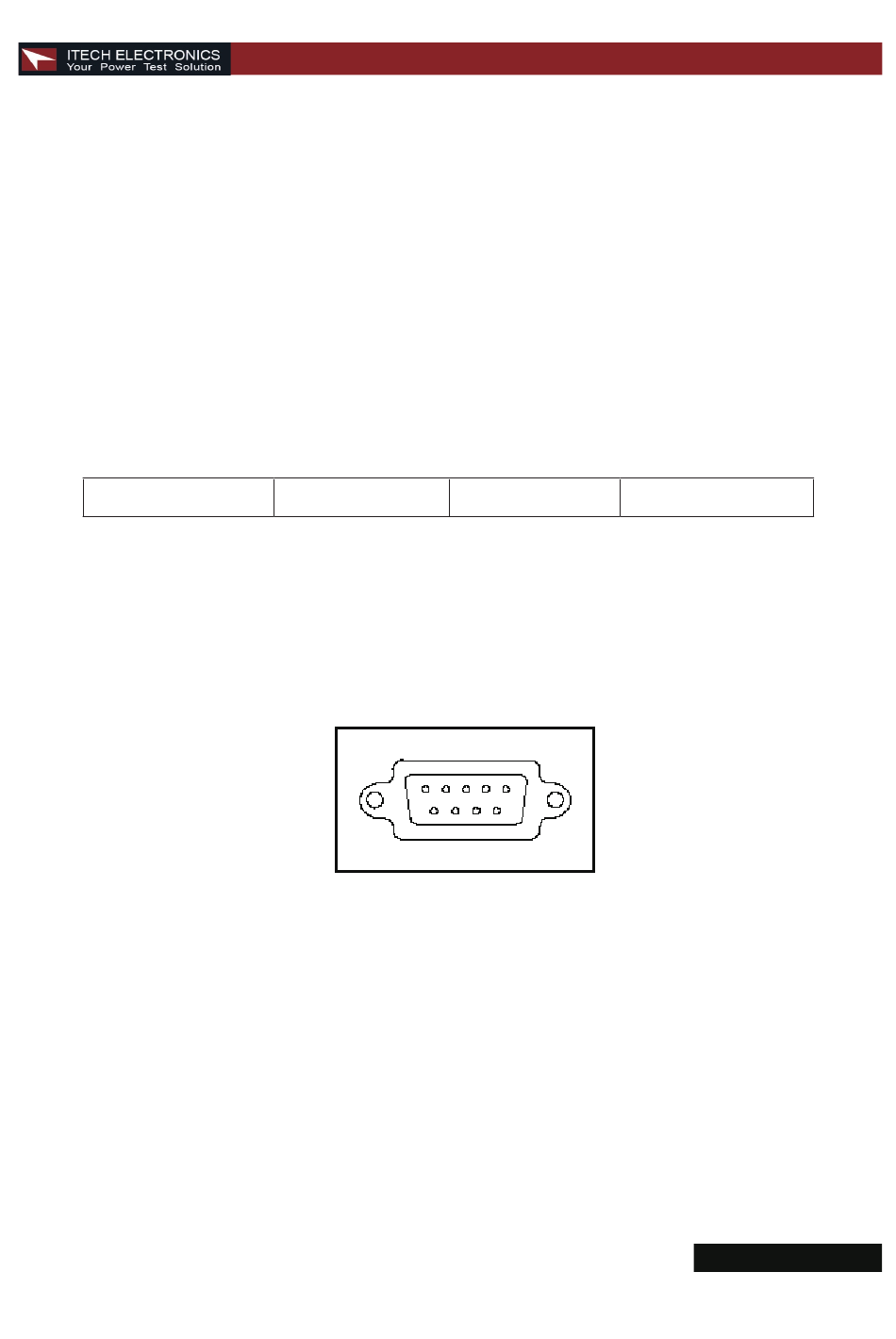

DB9 Interface Details
DB9 in the rear panel of electronic load is TTL level signal .it can be connecting with
standard PC interface through the IT-E131 isolated communication cable.
Start Bit 8 Data Bits
1 2 3 4 5
6 7 8 9
REMOTE OPERATION MODE
Stop Bit
