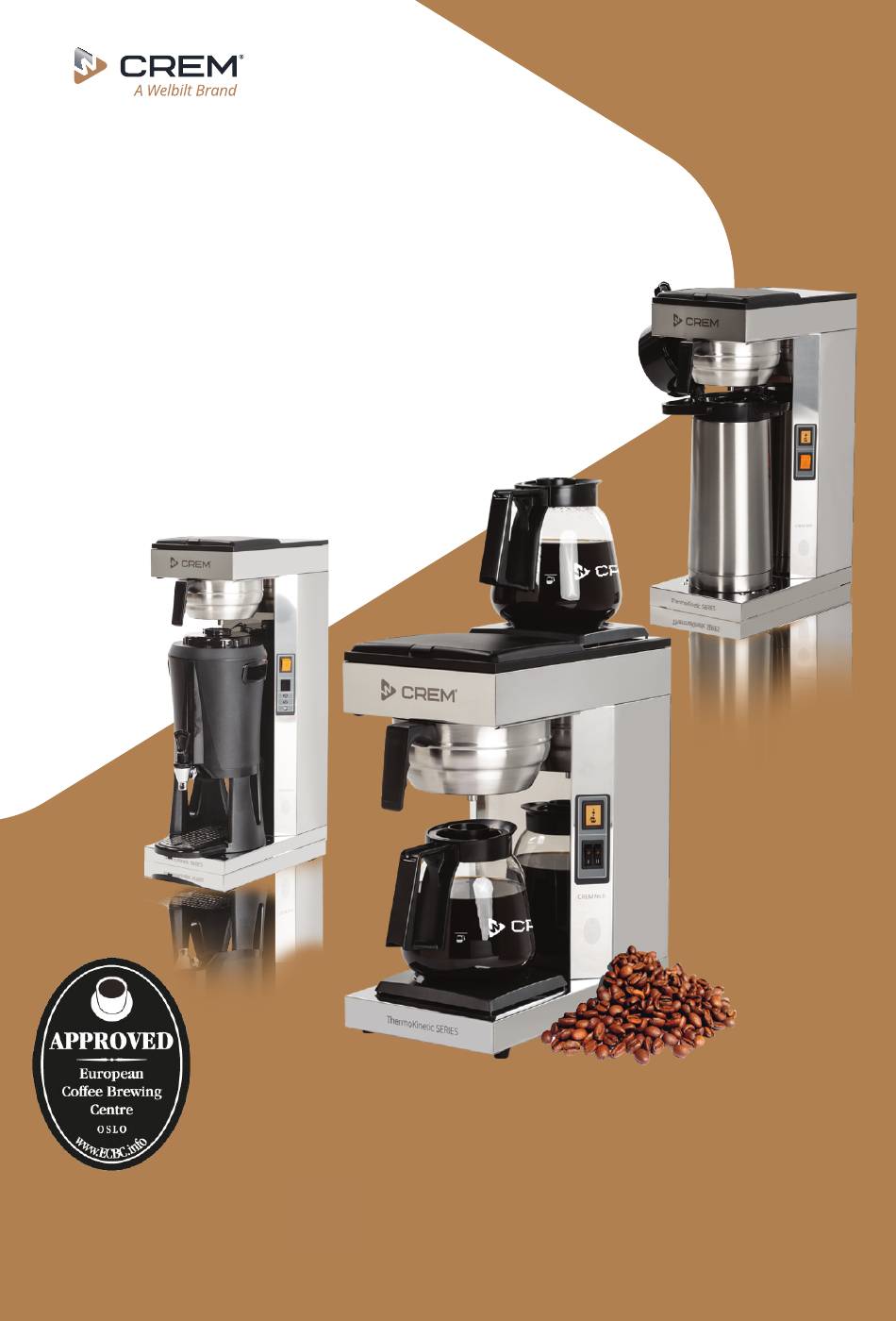

- Page 1 Crafted for every taste Original line & Thermokinetic Series User Manual (for specified models) UM_EN Part No.: 1964230_01...
-
Page 2: Table Of Contents
CONTENT Original Line & Thermokinetic series M & A CONTENT ................................ 2 GENERAL ................................4 Introduction ................................4 Precautions ................................4 Intended use ................................4 Warnings ..................................5 Facts & weight A Series Original line ........................6 General function description..........................6 Facts & weight A-TK Series ...........................7 TK function description............................7 Facts &... - Page 3 CONTENT Original Line & Thermokinetic series M & A Adjusting the Thermokinetic(TK)-Series extraction ratio................25 CLEANING AND CARE ........................26 Rinse thermos, decanter and serving station ....................26 Daily cleaning ................................. 27 Weekly cleaning ..............................27 Cleaning serving station ............................28 Exterior cleaning ..............................
-
Page 4: General
GENERAL Original Line & Thermokinetic series M & A Introduction Thank you for choosing a coffee brewer from CREM. We hope you enjoy it ! Read the user guide before using the machine. Always keep this guide close at hand for future This guide contains important instructions for reference. -
Page 5: Warnings
GENERAL Original Line & Thermokinetic series M & A Warnings Never immerse the machine, plug or mains Do not use the appliance if the mains cable, cable in water because there is a danger of plug is damaged or the appliance has fallen over. electric shock. -
Page 6: Facts & Weight A Series Original Line
GENERAL Original Line & Thermokinetic series M & A Facts & weight A Series Original line FACTS DA-4 Thermos A Mega Gold A 655, 205, 445 428, 205, 410 428, 410, 410 557, 205, 410 Height, Width, Depth Weight 9.6 kg 17.4 kg 10.2 kg 12.2 kg... -
Page 7: Facts & Weight A-Tk Series
GENERAL Original Line & Thermokinetic series M & A Facts & weight A-TK Series Thermos Mega Gold FACTS A-2 TK DA-4 TK A TK A TK 655, 205, 445 428, 205, 410 428, 410, 410 557, 205, 410 Height, Width, Depth Weight 9.6 kg 17.4 kg... -
Page 8: Facts & Weight M Series Original Line
GENERAL Original Line & Thermokinetic series M & A Facts & weight M Series Original line Thermos Thermos Mega FACTS DM-4 Office Gold M Height, Width, 655, 205, 445 428, 410, 410 557, 205, 410 428, 205, 410 mm Depth Weight 7.6 kg 9.1 kg... -
Page 9: Facts & Weight M-Tk Series
GENERAL Original Line & Thermokinetic series M & A Facts & weight M-TK Series Mega Thermos Thermos FACTS M-1TK M-2 TK DM-4 TK Gold Office TK M TK M TK Height, Width, 428, 410, 410 557, 205, 410 655, 205, 445 428, 205, 410 mm Depth Weight... -
Page 10: Overview Of Components
OVERVIEW OF COMPONENTS Original Line & Thermokinetic series M & A Front view M-1 & M-1 TK Tank lid Filter holder Brewing lamp Power switch Glass decanter Hot plate Thermos Office & Thermos Office TK Tank lid Filter holder Brewing lamp Power switch Thermos... -
Page 11: A-2 & M-2 / A-2 Tk & M-2 Tk
OVERVIEW OF COMPONENTS Original Line & Thermokinetic series M & A Front view A-2 & M-2 / A-2 TK & M-2 TK Glass decanter Upper hot plate Tank Lid Filiter Holder Power Switch Display Glass decanter Lower hot plate Brewing lamp Only for A-versions Power Switch M-versions... - Page 12 OVERVIEW OF COMPONENTS Original Line & Thermokinetic series M & A Front view DA-4 / DM-4 & DA-4 / DM-4 TK Glass decanters Upper hot plates Tank Lid Filiter Holder Brewing lamp Power Switch Glass decanters Lower hot plates Brewing lamp Power Switch Only for A-versions M-versions...
-
Page 13: Thermos M / A & Thermos M / A Tk
OVERVIEW OF COMPONENTS Original Line & Thermokinetic series M & A Front view Thermos M / A & Thermos M / A TK Tank Lid Filiter Holder Power Switch Display Carry Handle Thermos Only for A-versions Brewing lamp Power Switch M-versions... -
Page 14: Mega Gold M / A & Mega Gold M / A Tk
OVERVIEW OF COMPONENTS Original Line & Thermokinetic series M & A Front view Mega Gold M / A & Mega Gold M / A TK Tank Lid Filiter Holder Power Switch Carry Handle Display Serving Station Tap for Coffee Drip Tray Insert Drip Tray Only for A-versions Brewing lamp... -
Page 15: A-2, A-2 Tk, Da-4, Da-4 Tk
OVERVIEW OF COMPONENTS Original Line & Thermokinetic series M & A Function A-2, A-2 TK, DA-4, DA-4 TK ON-OFF button for display and lower hot plate. ON-OFF button For upper hot plate. Shows the number of cups. Display is blinking when brewing. -
Page 16: Installation And Start-Up
INSTALLATION AND START-UP Original Line & Thermokinetic series M & A Positioning Min. 10cm Min. 10cm Place the machine on a flat horizontal surface that will support the weight of the machine. Make sure air is able to circulate behind the machine Note (minimum 10cm). -
Page 17: Electrical Connection
INSTALLATION AND START-UP Original Line & Thermokinetic series M & A Electrical connection M-1, M-2, Thermos M, Mega Gold M / A-2, Thermos A, Mega Gold A M-1 TK, M-2 TK, Thermos M TK, Mega Gold M TK / A-2 TK, Thermos A TK, Mega Gold A TK IMPORTANT! Connect the plug to a separate earthed wall socket. -
Page 18: First Time Start-Up A-Series
INSTALLATION AND START-UP Original Line & Thermokinetic series M & A First time start-up A-series IMPORTANT! First time you use the machine do the first brewing with water only. Slide the filter holder into position without filter and coffee. Turn on the power switch(A). CAUTION! Select 12,15 or 17 cups by adjusting button. -
Page 19: First Time Start-Up M-Series
INSTALLATION AND START-UP Original Line & Thermokinetic series M & A First time start-up M-series IMPORTANT. First time you use the machine do the first brewing with water only. Slide the filter holder into position without filter and coffee. Lift up the tank lid and fill the machine with 1.8L fresh tap water. -
Page 20: Operation
OPERATION Original Line & Thermokinetic series M & A Brewing with coffee with A-series Recommended powder amount is 60g/L Place a 90mm (non-TK models), or Add coffee (restaurant / catering 110mm (TK models) filter in the filter ground coffee). Make sure that the holder. - Page 21 OPERATION Original Line & Thermokinetic series M & A Place the thermos or decanter under the filterholder. Choose number of cups for your brewing by using the buttons described below. - Press the button to increase number of cups - Press the button to decrease number of cups When you have selected your desired number of cups press the button to start brewing.
-
Page 22: Brewing With Coffee With M-Series
OPERATION Original Line & Thermokinetic series M & A Brewing with coffee with M-series Recommended coffee amount is 60g/L Place a 90mm (non-TK models), or Add coffee (restaurant / catering 110mm (TK models) filter in the filter ground coffee). Make sure that the holder. - Page 23 OPERATION Original Line & Thermokinetic series M & A Place the thermos or decanter under the filterholder. Turn on power Turn on power switch for switch brewing. (A) brewing. Tips Do not mix freshly brewed coffee with old. It will result in poor- tasting coffee.
-
Page 24: To Keep Temperature And Aroma
OPERATION Original Line & Thermokinetic series M & A To keep temperature and aroma Tips for keeping coffee Pre-heat the serving station, start a brewing with only water into the serving station. When brewing is complete let it stand for about 1 hour. Pour out the water. -
Page 25: Adjusting The Thermokinetic(Tk)-Series Extraction Ratio
OPERATION Original Line & Thermokinetic series M & A Adjusting the Thermokinetic(TK)-Series extraction ratio To adjust the brewing extraction of the TK-Series machine for optimal quality and taste, refer to the chart and the steps provided below: 1. Check the temperature of the water with a thermometer to be used for brewing. Optimal inlet water temperature range is 10-20ºC. -
Page 26: Cleaning And Care
CLEANING AND CARE Original Line & Thermokinetic series M & A Rinse thermos, decanter and serving station Before each brewing, rinse the thermos, decanter or serving station with fresh tap water. When cleaning the outside, use a soft rag with liquid cleaning agent to prevent scratches. CAUTION! The machine should not be submerged in water or washed in a dishwasher. -
Page 27: Daily Cleaning
CLEANING AND CARE Original Line & Thermokinetic series M & A Daily cleaning Wash the thermos, decanter(B) and the filter holder with liquid solution for coffee machines. Always remove the filter immediately and clean the filter holder daily, coffee will get moldy. Clean the spray nozzle(A) and the surrounding area. -
Page 28: Cleaning Serving Station
CLEANING AND CARE Original Line & Thermokinetic series M & A Cleaning serving station Disassemble the level tube and clean it every week with the enclosed brush. Take off the main lid and clean the mixer tube(A). Cleaning of serving station 2.5 L Fill the serving station with hot water. -
Page 29: Programming
PROGRAMMING Original Line & Thermokinetic series M & A Adjust water amount Adjust amount of brew water Press the buttons at same time in 5 seconds. The buzzer beeps twice. Display shows 0. - Press the button to increase amount of water. - Press the button to decrease amount of water. -
Page 30: Troubleshooting
TROUBLESHOOTING Original Line & Thermokinetic series M & A Fault and solution FAULT POSSIBLE SOLUTION IMPORTANT! Check plug connection to wall socket. Check fuse in plug. All maintenance Power switch does not lit Check if hot plate becomes warm, if so and installations replace power switch. -
Page 31: Dimension
DIMENSION Original Line & Thermokinetic series M & A M-1, M-1 TK, A-2, A-2 TK, Thermos Office & Thermos Office TK Model A-2 & A-2 TK 595mm 205mm 410mm 428mm 578mm 360mm M-2 & M-2 TK 595mm 205mm 410mm 428mm 578mm 360mm M-1, M-1 TK... -
Page 32: Da-4, Da-4 Tk, Dm-4 & Dm-4 Tk
DIMENSION Original Line & Thermokinetic series M & A DA-4, DA-4 TK, DM-4 & DM-4 TK Model DA-4 & DA-4 TK 410mm 410mm 428mm 595mm 578mm 360mm DM-4 & DM-4 TK 410mm 410mm 428mm 595mm 578mm 360mm... -
Page 33: Thermos A, Thermos A Tk, Thermos M & Thermos M Tk
DIMENSION Original Line & Thermokinetic series M & A Thermos A, Thermos A TK, Thermos M & Thermos M TK Model Thermos A & 557mm 205mm 410mm 708mm 360mm Thermos A TK Thermos M & 557mm 205mm 410mm 708mm 360mm Thermos M TK... -
Page 34: Mega Gold A, Mega Gold A Tk, Mega Gold M & Mega Gold M Tk
DIMENSION Original Line & Thermokinetic series M & A Mega Gold A, Mega Gold A TK, Mega Gold M & Mega Gold M TK Model Mega Gold A & 655mm 205mm 445mm 390mm 806mm Mega Gold A TK Mega Gold M & 655mm 205mm 445mm... -
Page 35: Serving Station
DIMENSION Original Line & Thermokinetic series M & A Serving Station Model Serving Station 205mm 273mm 436mm 400mm 105mm... - Page 36 For the warranty to be valid the conditions for maintenance must have been followed according to our instructions, proper precaution has been made and warranty claim been issued without delay. The affected equipment may not be used during awaiting service if there is any risk that the damage or defect would worsen.
