Paralled task

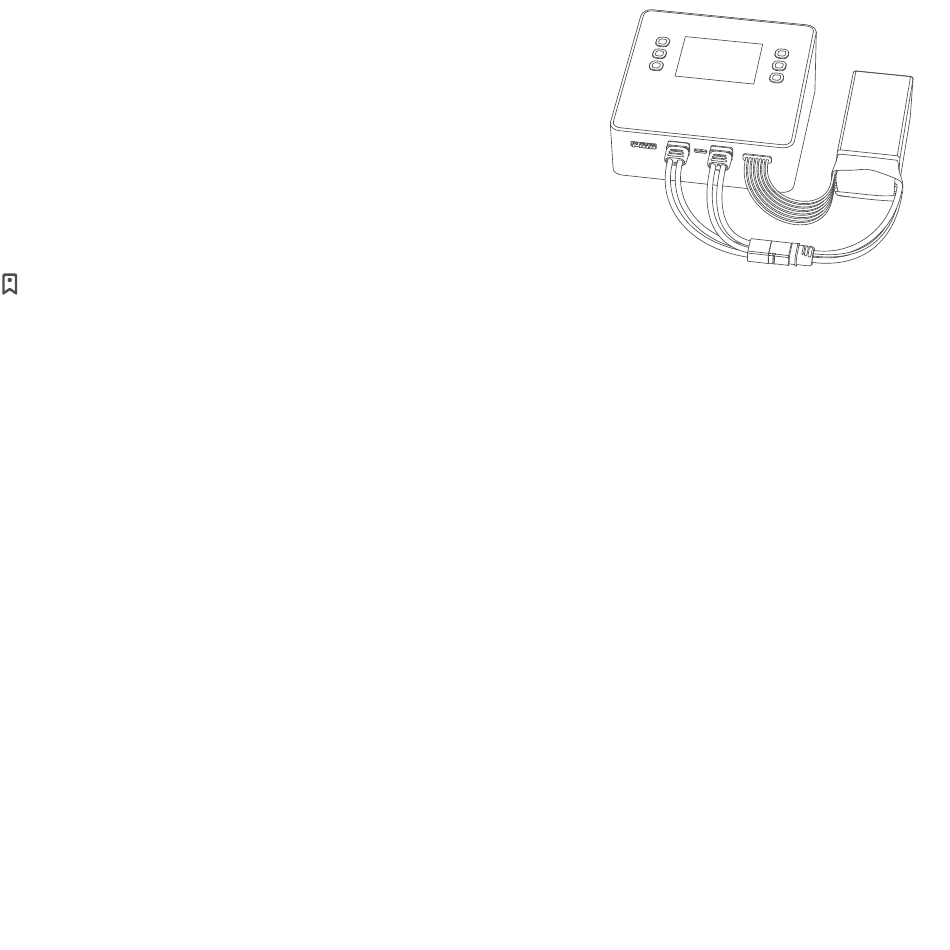

Select this setting, it could output Max Power to one battery. Find a power
splitter or 1/2 power cord, one end connect with the battery, and the other
two ends connect with the battery output port. The battery balance port
could connect with any of the charger's balance port. Connect the charger
with the power supply and power on, and connect your battery as required,
select this setting on the advanced setting menu to set the task parameters.

DC power (CH1)

The charger CH1 is equivalent to a DC power supply when selecting this function,
with output voltage adjustable from 2 to 30V, and current adjustable from 1.0 to 5.0A.

System Setting Menu

Under the advanced setting menu, select the system setting into the system setting menu as follows:
Min. input voltage protection: 10~31V
All tasks in operation will be stopped at once and hint warning of low voltage, when the input voltage is lower than the input voltage
as set up. It will protect the battery from being discharged when using battery pack as power supply.
Max. input power setting: 100~1100W
If the input power is smaller than the max working power(1000W), please set up the parameter as the actual output power as max input,
to protect the input power and enable the charger to work stable.

USB Charge

When this item is set to "Off", and TYPE-C is the upgrade port.
When this item is set to "On", TYPE-C acts as a USB charging port and outputs 5V/2A power.
Split screen
There are 3 options of 60 seconds,30 seconds and OFF for automatic split screen setting. You can choose to switch the display of the
main interface from the single-channel parameter interface to Dual channel (split screen) parameter interface.
You can also select "Off" to turn off the automatic split screen function.
BattGo
When the corresponding channel (CH1 output,CH2 output,Power input) connect to a BattGo battery, you could read this and modify
the related parameters of Battgo battery.
Keep trickle
After charging is complete, choose whether to continue trickle charging.
The trickle charge function is enabled to maintain the lithium battery voltage in a fully charged state, this function is enabled by default.
Calibration:
The input voltage, output voltage and balance voltage of the charger can be calibrated with this task.
