Summary of Contents for ISDT 608AC
- Page 1 608AC 200W Smart Charger Instruction Manual www.modellmarkt24.ch; www.modellmarkt24.ch; www.modellmarkt24.de www.modellmarkt24.de...
-
Page 2: Table Of Contents
Thanks for purchasing the ISDT 608AC Smart Charger. Please visit: www.isdt.co for more details on the functions of this smart charger, as well as purchase various accessories. Functions of products will be kept on upgrading, the manual in your hand may be different from the actual operation, please refer to the actual functions. -
Page 3: Warnings And Safety Tips
Setting the parameters incorrectly will result in damage to the product, personal property and cause serious injury as well. Product Specifications Model : 608AC Abnormal voltage alarm : Support Charge current : 0.1A ~ 8.0A Incorrect cell count setting alarm : Support Working temperature : 0℃~40℃... -
Page 4: Function Buttons

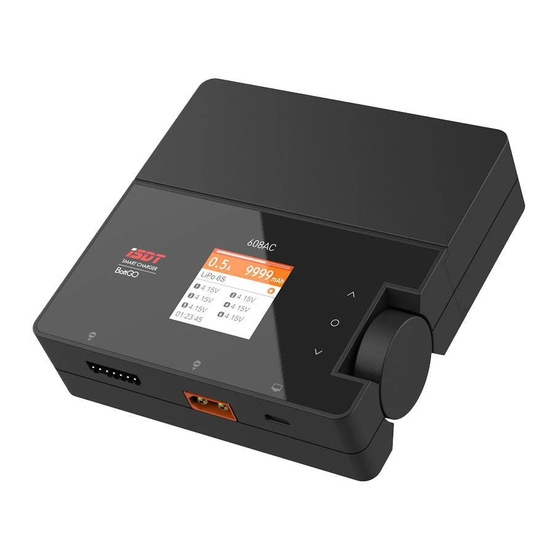

Function Buttons AC Power input DC Power input Fan Vent Display Screen Shuttle Key Balance Port Battery Port Firmware Upgrade Port Functions of the shuttle key: Long press: enter the system setting/ Terminate current task Short press: enter the task setting/ Confirm current task Scroll: select the corresponding menu www.modellmarkt24.ch;... -
Page 5: How To Confirm Charging Current
How to Confirm Charging Current Make sure to know the maximum charging current of the battery before charging, never use excessive current to charge to damage your battery, which will result in over heat even explosion during the charging process. The charging and discharging capacity of battery is usually marked with C value. -
Page 6: Navigating The Charger
Navigating the Charger AC&DC dual input. Connecting DC power port with DC power supply, for DC input mode. Connecting the AC power cord for AC input mode. AC mode DC mode www.modellmarkt24.ch; www.modellmarkt24.ch; www.modellmarkt24.de www.modellmarkt24.de... -
Page 7: Operating The Charger
Operating the Charger Power on 608AC smart charger, connect the battery, and short press the shuttle key to enter the task setting menu as follows : • Scrapped function Connect the battery to be scrapped, select the scrapped function in the task options, able to discharge the battery to 0V. -
Page 8: System Setting Menu
• Failure to observe safety procedures may cause damages to property or injury. All product photos, statements and literature are for reference only. For up-to-date information, please visit our official web www.isdt.co ISDT reserves the right of final explanation and revision for the terms.
