Summary of Contents for Uniden XTRAK 80 Series

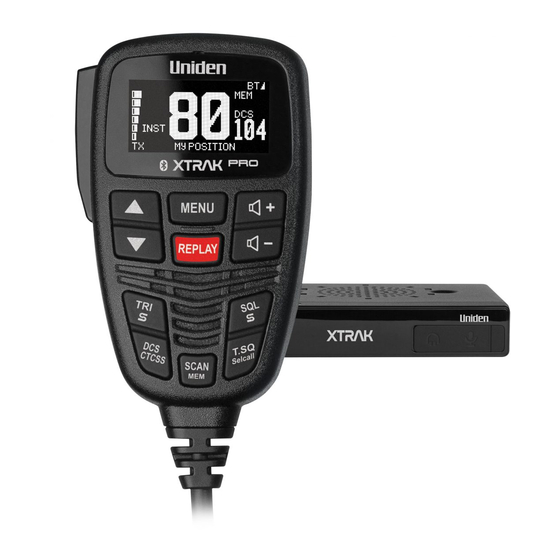

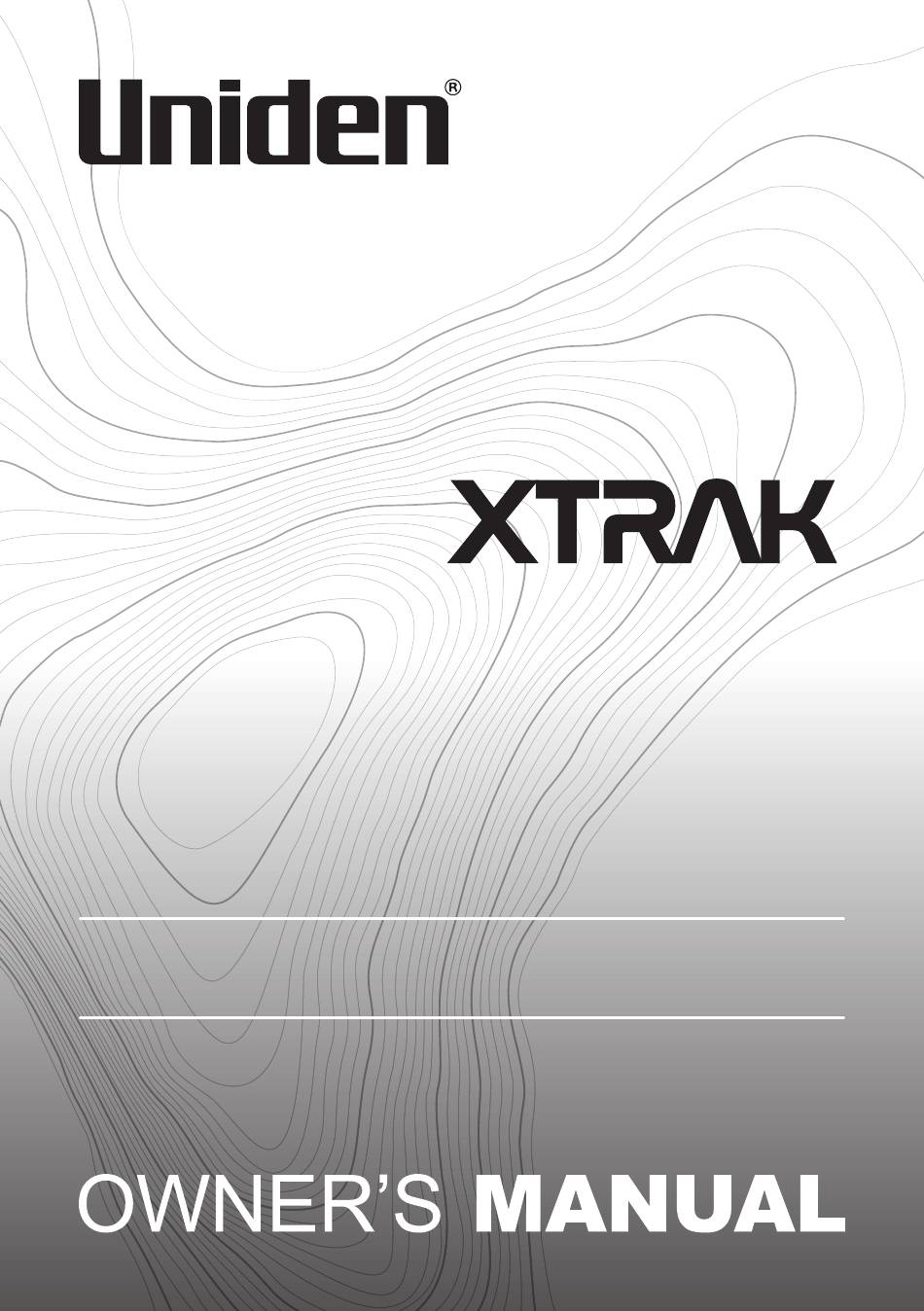

- Page 1 80 Series REMOTE SPEAKER MIC UHF CB TRANSCEIVER For more exciting new products please visit our website: Australia: uniden.com.au...
-
Page 2: Table Of Contents
Master Scan (Uninterrupted Transmit & Receive) Setting up Master Scan Mode Using Master Scan Busy Channel Lockout Roger Beep Key Beep On/Off Alpha Tag Speaker Select Key Backlight / Display Dimmer Voice Scramble Microphone Gain UNIDEN XTRAK UHF CB Transceiver... - Page 3 Lead-in Tone Alarm Mode Call Alarm Auto Mode Call Alarm Continue Mode Group Call Mode SELCALL Tone Frequency List CTCSS Codes Table DCS Codes Table UHF CB Channel Guidelines UHF CB Channels & Frequencies Warranty UNIDEN XTRAK UHF CB Transceiver...
-
Page 4: Included With Your Xtrak
Washer, Screws Optional Accessories • UHF Antenna • Pass through sockets (for MIC cable) • External Speaker Visit the XTRAK page on the website for more information on the availability of optional accessories: www.uniden.com.au for Australia UNIDEN XTRAK UHF CB Transceiver... -
Page 5: Introduction
Introduction The Uniden XTRAK is designed to provide you with years of trouble free service. Its rugged components and materials are capable of withstanding harsh environments. Please read this Operating Manual carefully to ensure you gain the optimum performance of the unit. -
Page 6: Controls & Connectors
Controls & Connectors Base (Front & Rear) DC 13.8V EXT.SP. ANT. DC 27.6V Remote OLED Speaker MIC UNIDEN XTRAK UHF CB Transceiver... - Page 7 MIC plug (RJ45 type) [DCS/CTCSS] - Open/ Exit Sub-code select Front MIC Jack Cover [SCAN] - Scan Button (press) *See page 16 for how to re-programme a | [MEM] - Memory Button SMART key. (press & hold) UNIDEN XTRAK UHF CB Transceiver...
-
Page 8: Indicators
M.S - Master Scan SCAN - Flashes during scan DUP - CH is in Duplex (Repeater) mode Sub Code Type DCS / CTCSS / T.SQ Signal strength meter Sub Code No. Extra RX Channel No. UNIDEN XTRAK UHF CB Transceiver... -
Page 9: Slide Mount Bracket
Align the guide rails along the side of the base and insert them into the slots provided. Then use the screws to lock them securely in position. Slide the bracket along the guide rails to attach the bracket to the unit. Under the BASE unit Over the BASE unit UNIDEN XTRAK UHF CB Transceiver... -
Page 10: Connecting The Microphone
Disconnecting the MIC from the MIC Jack Pull back the rubber cover and move it down along the cord. Using the flat blade of a screwdriver or similar object carefully push the lock tab of the MIC plug towards the MIC cord and at the same time tug on the MIC cord to draw back the MIC plug. UNIDEN XTRAK UHF CB Transceiver... -
Page 11: Mounting The Mic Hanger
Mounting the MIC Hanger The Magnetic MIC Hanger comes assembled so the double sided tape can be applied to the rear side and then applied to a suitable mounting location. Locate a suitable mounting position. Remove (peel off) the plastic covering the adhesive tape on the flat area of the MIC Hanger back piece and then press firmly to the mounting position. UNIDEN XTRAK UHF CB Transceiver... -
Page 12: Operation
If the input voltage falls below 10VDC, LO DC flashes for 5 seconds. The power turns off automatically if voltage falls below 9.0VDC. Switch your XTRAK OFF and disconnect it from the power source, before locating the cause of the power supply problem. UNIDEN XTRAK UHF CB Transceiver... -
Page 13: Setting The Auto Squelch Level
Enable/Disable Monitor Mode by SMART Key When a SMART key is set to MON, press the assigned SMART key to turn Monitor mode on or off. MON will flash on the display when Monitor is on. Monitor mode is also entered when the SQL level is set to Sq0. UNIDEN XTRAK UHF CB Transceiver... -
Page 14: Selecting A Channel
For extended range: - Transmit in Duplex mode, see Using UHF CB Repeater Channels page 15. For uninterrupted transmission in busy channel areas: - Transmit & Receive in Master Scan mode, see Master Scan page 24. UNIDEN XTRAK UHF CB Transceiver... -
Page 15: Using Uhf Cb Repeater Channels
The DUP icon displays when a selected channel is set to Duplex mode. • Only channels 01-08 and channels 41-48 are available for Duplex. • Check with your local Retailer for information on available repeaters. NOTE UNIDEN XTRAK UHF CB Transceiver... -
Page 16: Smart Key Function
The table below shows which functions are available for each SMART key. [INST /S] [TRI /S] [SQL /S] INST < Default Setting CALL CALL CALL 2. Press the SMART key to use the current function. UNIDEN XTRAK UHF CB Transceiver... -
Page 17: Instant Channel
2. Press [INST/S] again to recall the Instant Priority CH2 (if CH2 has been set) 3. Press [INST/S] again to return to the previous channel. The INST icon displays when showing Instant Priority CH1 or CH2. UNIDEN XTRAK UHF CB Transceiver... -
Page 18: Triple Watch (And Dual Watch)
EQL 2: Midrange - Enhanced midrange frequencies, sound quality becomes clear. EQL 3: High - Enhanced the high frequencied, sound quality becomes sharp. When a signal is received, except for when in Monitor mode, the current EQL level will display. NOTE UNIDEN XTRAK UHF CB Transceiver... -
Page 19: Call Tone
1. Press that SMART key to tramnsmit the call tone. • Current regulations require calling tones to be restricted to one transmission per minute. If a second transmission is attempted within NOTE one minute then an error tone will sound. UNIDEN XTRAK UHF CB Transceiver... -
Page 20: Ctcss (Continuous Tone Coded Squelch System)
CTCSS and DCS is not available on CH 05 and CH 35. For your reference a list of the available channels, corresponding frequencies and guidelines for their use and selection is printed on p.47 - p.49 For NOTE Australia, Channels 05 and 35 are reserved for Emergency Calls. UNIDEN XTRAK UHF CB Transceiver... -
Page 21: Scanning
4. Press and hold [MENU] to save & exit from the menu mode. The O.S icon displays. If SCAN is deactivated while on an active channel, the XTRAK will stay on that active channel. If no channels are active, the XTRAK will NOTE reinstate the starting channel. UNIDEN XTRAK UHF CB Transceiver... -
Page 22: Group Scan (Gs) Mode
1. Press [MENU] and then press [UP / DOWN] to highlight 06 Scan Mode. 2. Press [MENU] to select. 3. Press [UP / DOWN] to change the selection to Group Scan. 4. Press and hold [MENU] to save & exit from the menu mode. The G.S icon displays. UNIDEN XTRAK UHF CB Transceiver... -
Page 23: Priority Watch For Group Scan
Select OS/GS Scanning Mode. Select the channel you want to store. Press and hold [MEM]. The MEM icon appears and two beep tones sound. To remove the channel from SCAN memory, press and hold [MEM] once more. The MEM icon disappears. UNIDEN XTRAK UHF CB Transceiver... -
Page 24: Master Scan (Uninterrupted Transmit & Receive)
Channels (CH05, CH35), User Programmable RX Channels (CH81 to CH180) will not be included in Master Scan Mode even though stored NOTE into GS Memory. Also channels for which Duplex Setting is On will be skipped in Master Scan Mode. UNIDEN XTRAK UHF CB Transceiver... -
Page 25: Setting Up Master Scan Mode
[SCAN] to enable or disable M.SCAN. The SCAN icon flashes in this mode. When SCAN is enabled for Master Scan, simply use the radio (Transmit and Receive) as you would normally. Using Master Scan should feel like using a normal single chan- nel. UNIDEN XTRAK UHF CB Transceiver... -
Page 26: Busy Channel Lockout
3. Press [UP / DOWN] to select a On or Off. 4. Press and hold [MENU] to save & exit from the menu mode. If a button is not pressed within 10 seconds the XTRAK will automatically exit the Menu Mode. NOTE UNIDEN XTRAK UHF CB Transceiver... -
Page 27: Key Beep On/Off
3. Press [UP / DOWN] to select a On or Off. 4. Press and hold [MENU] to save & exit from the menu mode. If a button is not pressed within 10 seconds the UHF CB Radio will automatically exit the Menu Mode. NOTE UNIDEN XTRAK UHF CB Transceiver... -
Page 28: Speaker Select
3. Press [UP / DOWN] to select between Off, Low, Mid or High. 4. Press and hold [MENU] to save & exit from the menu mode. If a button is not pressed within 10 seconds the UHF CB Radio will automatically exit the Menu Mode. NOTE UNIDEN XTRAK UHF CB Transceiver... -
Page 29: Voice Scramble
1. Press [MENU], then use [UP / DOWN] to highlight 17 Microphone Gain. 2. Press [MENU] to select. 3. Press [UP / DOWN] to select an option. 4. Press and hold [MENU] to save & exit from the menu mode. UNIDEN XTRAK UHF CB Transceiver... -
Page 30: Operation - Special Features
1. Press [MENU] and then use [UP / DOWN] to highlight 15 Replay(RX Rec.). 2. Press [MENU] to select. 3. Press [UP / DOWN] to select an option. 4. Press and hold [MENU] to save & exit from the menu mode. UNIDEN XTRAK UHF CB Transceiver... -
Page 31: 100 User Programmable Rx Channels
If an active frequency channel is found, scanning will stop on that frequency. To skip, press [UP / DOWN] to continue scanning. iii). When a desired frequency is found, press [SCAN] to exit from frequency scan. UNIDEN XTRAK UHF CB Transceiver... - Page 32 To delete an extra RX channel, edit the channel frequency to 000.0000 and exit programming mode. NOTE Managing the 100 RX only channels can also be done within the XTRAK App (XTRAK 80 PRO only). NOTE UNIDEN XTRAK UHF CB Transceiver...
-
Page 33: Selective Calling (Selcall)
A 6th digit (for 6 tone Selcall) is available and indicated by a ‘_’. 4. Press [SCAN] to exit the ID setting mode. 5. Press and hold [TRI /S] to exit programming mode. A long confirmation tone sounds. Press and hold [POWER] to power off to exit programming mode. UNIDEN XTRAK UHF CB Transceiver... -
Page 34: Storing Selcall Ids Of Other Users To The Id Memory
Press [UP / DOWN] to select the desired alpha character. ii). Use [TRI /S] or [SQL /S] to shift between cursor positions. 5. W hen finished press [SCAN]. A confirmation tone sounds to indicate the ID is programmed. The memory number flashes to enable selection for programming of next memory if desired. 6. Press [PTT], or wait for 10sec, to exit programming mode. UNIDEN XTRAK UHF CB Transceiver... -
Page 35: Making A Selcall Call (Tone Calling)
TX-CAL will display when transmitting the Selcall. An acknowledge tone coming from the called radio will be received if you have successfully made contact. The acknowledge tone for the XTRAK is a succession of three low tone beeps. UNIDEN XTRAK UHF CB Transceiver... -
Page 36: Tsq (Tone Squelch) Receiver Quiet Mode
1. Use [UP / DOWN] to select the channel you want to put in or take out of ‘QUIET’ mode. 2. Press [TSQ]. A beep will sound and the T.Sq icon appears on or disappears from the display. UNIDEN XTRAK UHF CB Transceiver... -
Page 37: Receiving A Selcall
Flashes the TSQ icon for about 20 seconds allowing you to use the PTT button. If you are not able to respond within the 20 second period, TSQ icon stops flashing and ‘QUIET’ mode resumes. The XTRAK can decode a Selcall call even though not in ‘QUIET’ mode. NOTE UNIDEN XTRAK UHF CB Transceiver... -
Page 38: Group Calling
If someone transmits ID 1234A on CH20, all of the above units will open their Tone Squelched Receiver. Group Calls and ordinary Selcalls can be differentiated in the following manner: Group Call - Low tone beeps Ordinary Selcall - High tone beeps UNIDEN XTRAK UHF CB Transceiver... -
Page 39: Selcall Settings
3. Press [UP / DOWN] to select the desired tone period from 40ms, 70ms or 100ms. 4. Press [SCAN] to save and exit the setting. 5. Press and hold [TRI /S] to save and exit programming mode. A long confirmation tone sounds. OR, Press and hold [POWER] to power off to exit programming mode. UNIDEN XTRAK UHF CB Transceiver... -
Page 40: Lead-In Delay
3. Press [UP / DOWN] to select the desired Lead-in delay period from; 500ms, 1000ms, 2000ms, 3000ms or 4000ms. 4. Press [SCAN] to save and exit the setting. 5. Press and hold [TRI /S] to save and exit programming mode. A long confirmation tone sounds. Press and hold [POWER] to power off to exit programming mode. UNIDEN XTRAK UHF CB Transceiver... -
Page 41: Lead-In Tone
• If you want to remove the Lead-in Tone choose the space [ _ ] Bar. NOTE 4. Press [SCAN] to save and exit the setting. 5. Press and hold [TRI /S] to save and exit programming mode. A long confirmation tone sounds. Press and hold [POWER] to power off to exit programming mode. UNIDEN XTRAK UHF CB Transceiver... -
Page 42: Alarm Mode
3. Press [UP / DOWN] to select the desired Alarm mode from AUTO or CONT. 4. Press [SCAN] to save and exit the setting. 5. Pressand hold [TRI /S] to save and exit programming mode. A long confirmation tone sounds. Press and hold [POWER] to power off to exit programming mode. UNIDEN XTRAK UHF CB Transceiver... -
Page 43: Group Call Mode
3. Press [UP / DOWN] to select the desired Group Call mode from 01 or 02. 4. Press [SCAN] to save and exit the setting. 5. Press and hold [TRI /S] to save and exit programming mode. A long confirmation tone sounds. Press and hold [POWER] to power off to exit programming mode. UNIDEN XTRAK UHF CB Transceiver... -
Page 44: Selcall Tone Frequency List
88.5 218.1 91.5 225.7 94.8 233.6 97.4 241.8 100.0 250.3 103.5 69.4 107.2 159.8 110.9 165.5 114.8 171.3 118.8 177.3 123.0 183.5 127.3 189.9 131.8 196.6 136.5 199.5 141.3 206.5 146.2 229.1 151.4 254.1 156.7 UNIDEN XTRAK UHF CB Transceiver... -
Page 45: Dcs Codes Table
DCS Codes Table DCS Code DCS Code DCS Code Code No. Code No. Code No. (Octal) (Octal) (Octal) UNIDEN XTRAK UHF CB Transceiver... - Page 46 This page intentionally blank UNIDEN XTRAK UHF CB Transceiver...
-
Page 47: Uhf Cb Channel Guidelines
The above situations are not a fault of the radio but a symptom of mixed wideband and narrowband radios in current use. It is expected that as older wideband radios are phased out this issue will be eliminated. UNIDEN XTRAK UHF CB Transceiver... -
Page 48: Uhf Cb Channels & Frequencies
477.300 (CH36) 477.050 476.575 477.325 (CH37) 477.075 476.600 477.350 (CH38) 477.100 476.625 477.125 476.650 477.150 476.675 477.175 476.700 477.200 476.725 477.225 476.750 477.250 476.775 477.275 476.800 477.300 476.825 477.325 476.850 477.350 476.875 477.375 476.900 477.400 UNIDEN XTRAK UHF CB Transceiver... - Page 49 477.0625 476.5875 477.3375 (CH 77) 477.0875 476.6125 477.3625 (CH 78) 477.1125 476.6375 477.1375 476.6625 477.1625 476.6875 477.1875 476.7125 477.2125 476.7375 477.2375 476.7625 477.2625 476.7875 477.2875 476.8125 477.3125 476.8375 477.3375 476.8625 477.3625 476.8875 477.3875 476.9125 477.4125 UNIDEN XTRAK UHF CB Transceiver...
-
Page 50: Warranty
5 Years Accessories 1 Year If a warranty claim is made, this warranty will not apply if the Product is found by Uniden to be: (A) Damaged or not maintained in a reasonable manner or as recommended in the relevant Uniden Owner’s Manual;... - Page 51 Product, together with satisfactory evidence of your original purchase (such as a legible copy of the sales docket) to Uniden. Please refer to the Uniden website for the address details. You should contact Uniden regarding any compensation that may be payable for your expenses incurred in making a warranty claim.
- Page 52 © 2021 Uniden Australia Pty Limited. Printed in PRC...
