Summary of Contents for Uniden BTS200

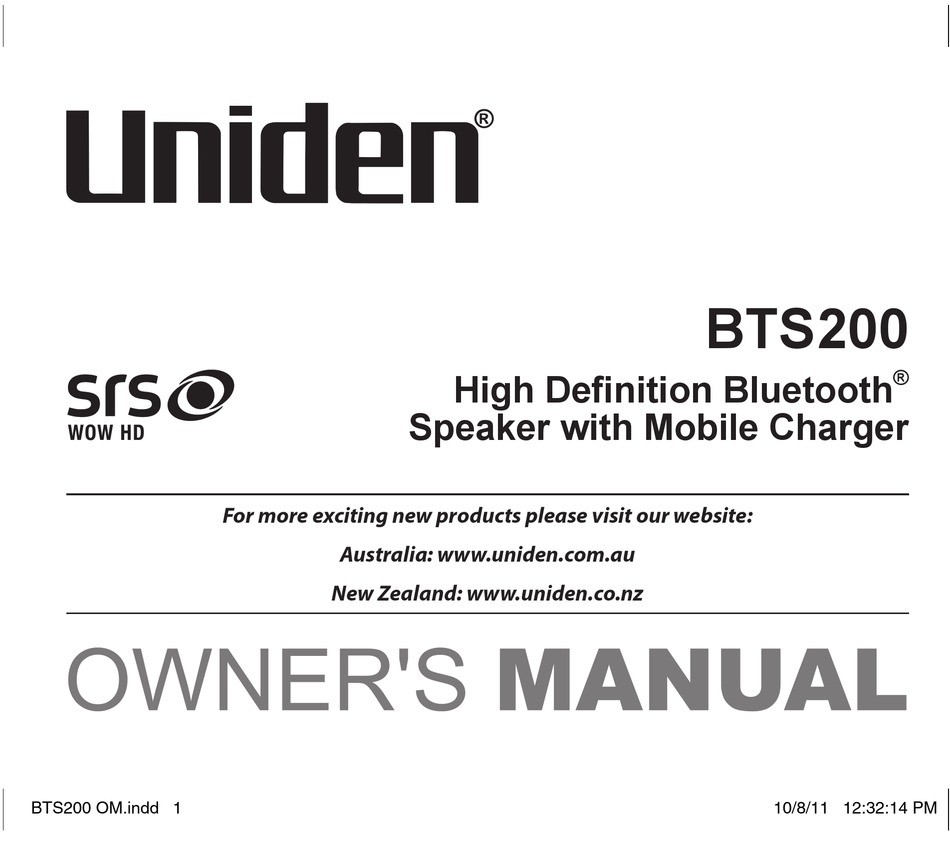

- Page 1 ® High Definition Bluetooth is a trademark of SRS Labs, Inc. Speaker with Mobile Charger WOW HD technology is incorporated under license from SRS Labs, In For more exciting new products please visit our website: Australia: www.uniden.com.au New Zealand: www.uniden.co.nz...
-
Page 2: Important Safety Instructions
Important Safety Instructions • Do not use this product near water, for example, near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool. • Do not use this product while driving. •... -
Page 3: Table Of Contents
USB Cable ..........16 SPEAKER ..........4 Play Music through a What’s in the Box? ..........5 Wired Connection ........16 SET UP YOUR BTS200 SPEAKER .....5 Manage SRS WOW HD™ On/Off ....17 Install the Battery ..........5 TROUBLESHOOTING ......18 Charge the Battery ..........5 Reset your BTS200 Speaker ...... -
Page 4: Bts200 High-Definition Speaker
™ : Available when playing music through a 3.5 mm minijack cable (not included) connection. *The Bluetooth Speaker can store pairing information for two devices but only one device can be connected at a time. The BTS200 speaker is not a data storage device; do not attempt to copy files to it. -
Page 5: What's In The Box
• AC Adaptor (PS-S05F0BL2) • Lithium-Ion polymer battery (BT-1026) SET UP YOUR BTS200 SPEAKER Install the Battery Remove the battery from any protective packaging and discard the packaging accordingly. Align the battery pack with the guides along the inside of the battery area. Be sure the contact slots are in the correct position to close on the contacts. -
Page 6: Turn On Your Speaker
Turn on Your Speaker When you turn on your speaker for the first time, it automatically goes into pairing mode. The Bluetooth LED ( ) flashes rapidly and is ready to pair (see p. 7). The next time you turn on your speaker, it searches for already paired devices and then moves into a standby state. - Page 7 Searching mode on your Bluetooth device (refer to your Bluetooth device’s owner’s manual for details if necessary). Your Bluetooth device should find BTS200; select it and use 0000 for a pairing code if necessary. Verify that you are connected to your speaker. The Bluetooth LED ( ) moves to a steady ON state when pairing is complete.
-

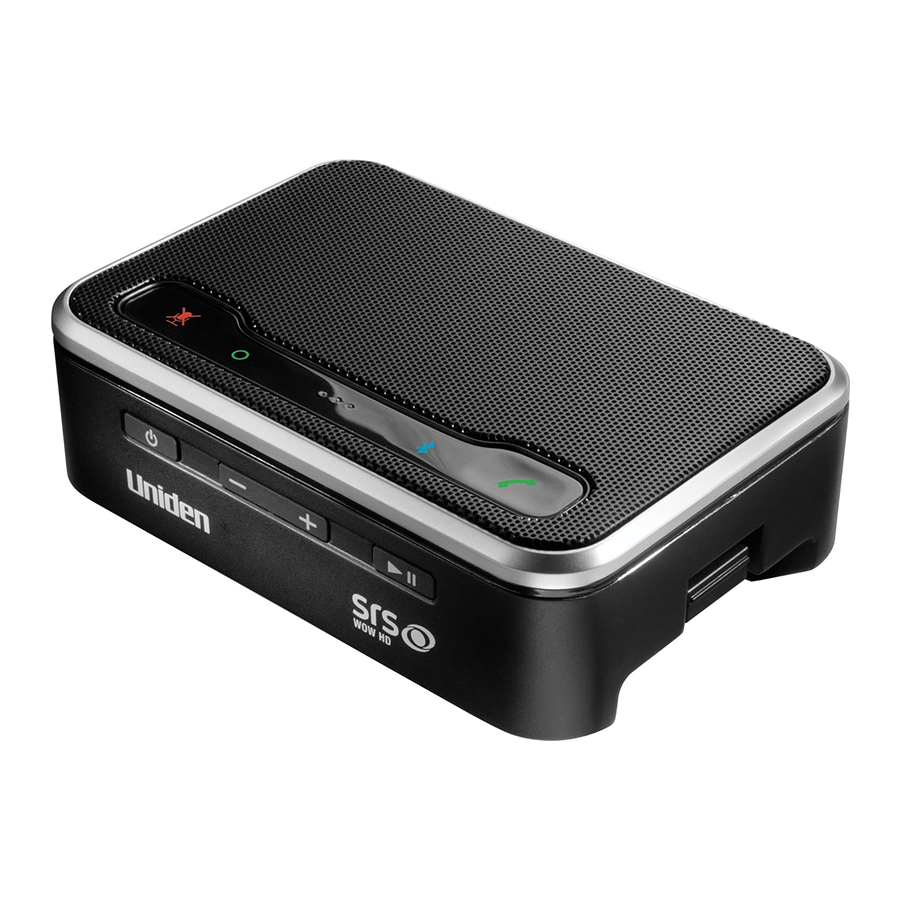

Page 8: Getting To Know The Bts200 Speaker
GETTING TO KNOW THE BTS200 SPEAKER BTS200 Top/Front Key name Icon Press to ... MUTE Power LED Mute the microphone on your Mute Microphone speaker during a call. Bluetooth link LED talk Handle phone calls. TALK POWER Power Turn on your BTS200 speaker. -
Page 9: Bts200 Side
Battery Indicator LEDs Display the remaining power level when you press the battery indicator button (see p. 20). USB port Use the BTS200 battery to charge your mobile phone (see p. 16). Battery release latch Unlock the battery for removal. -
Page 10: Bts200 Back
BTS200 Back Power 3.5mm Audio In Bass adapter jack output input Use this... To... Audio In Insert the audio cable’s plug. Bass output Hear the bass sound. DC 5.4V Insert the power adapter. - Page 11 BTS200 is turned off. Slow blink BTS200 is looking for paired Bluetooth devices. Bluetooth Fast blink BTS200 is ready to pair to a Bluetooth device. Steady on BTS200 is connected to a Bluetooth device. BTS200 is not connected to a Bluetooth device.
-
Page 12: Bts200 Speaker Operation
BTS200 SPEAKER OPERATION Press and hold for at least 3 seconds to turn on your speaker. keys control the speaker’s volume level during mobile phone operation and music playback. Press and release the keys to increase or decrease the volume level one step at a time. -
Page 13: Call Waiting
To... Do this... Unmute the microphone Press again. The LED turns off. Redial the last incoming From standby, press at the same time. The number LED is steady green. From standby, press and hold . The LED is Redial the last number dialed steady green. - Page 14 To... Do this... Answer a call waiting call Press ; the first call is ended and the call waiting is now and hang up first call active. Reject a call waiting call Press and hold at the same time. End a call waiting call Press ;...
-
Page 15: Basic Music Operation
Basic Music Operation When you pair a Bluetooth music player to your speaker, you can control operation through your speaker. To... Do this... Press NOTE: When you stop or pause the music playback, your speaker starts Play music streaming music into a buffer. The music resumes at the same volume level after you press Skip to the next Press... -
Page 16: Special Features
After you charge your mobile phone using your speaker’s battery, be sure you recharge your speaker. Play Music through a Wired Connection You can still play music through your BTS200 speaker even if your music device is not paired to your speaker. You can physically connect your music device to your speaker with a cable having a 3.5 mm minijack at one end (not included). -
Page 17: Manage Srs Wow Hd™ On/Off
Bluetooth device will take priority over the wired device. • The BTS200 does not control the wired device; it only plays music through a wired connection. It cannot operate or skip . You must use the wired device to do that. -
Page 18: Troubleshooting
Music won’t play on the – Check if both devices are connected. BTS200 – Turn your BTS200 off and then back on to auto- connect with your Bluetooth device. Change the volume from your Bluetooth device. The BTS200 volume controls –... -
Page 19: Reset Your Bts200 Speaker
– Make sure your mobile phone has HFP. Phone call not answer by Check if both devices are connected. – BTS200 Restart BTS200 for auto-connecting with your – Bluetooth device. Music doesn’t play after Press to resume music. hanging up a call BTS200 doesn’t control the... -
Page 20: Battery Features
Battery Features Your BTS200 comes equipped with a rechargeable Lithium-Ion polymer battery. You can recharge the battery by connecting it to 240 VAC power through the AC adapter. Install and Charge the Battery See p. 5 for details on installing and charging the battery (the same procedures as for initial turnup). -
Page 21: Specification
SPECIFICATIONS • Total 4W output (2W / Channel) • Full-range (50mm) driver / Channel + Passive Radiator • Li-Ion polymer Batt: 2950mAh • Playtime: 5 hours in 80% Volume • Recharging Time: 7.5 hours • Range: Class 2, 10m Bluetooth Compatibility Bluetooth V2.1 or above device with A2DP/AVRCP/ HFP Safety and Handling Information For maximum product life, do not drop, throw, or crush the speaker. -
Page 22: Two-Year Limited Warranty
Please refer to our Uniden website for any details or warranty durations offered in addition to those contained below. warrantor The warrantor is either Uniden Australia Pty Limited ABN 58 001 865 498 (“Uniden Aust”) or Uniden New Zealand Limited (“Uniden NZ”) as the case may be. - Page 23 Depending on the country in which the Product was first purchased, if you believe that your Product does not conform with this warranty, you should deliver the Product, together with satisfactory evidence of your original purchase (such as a legible copy of the sales docket) to Uniden at the addresses shown below.
- Page 24 © 2011 Uniden Australia Pty Ltd/Uniden New Zealand Limited Printed in Vietnam U01UF054BZB(0)
