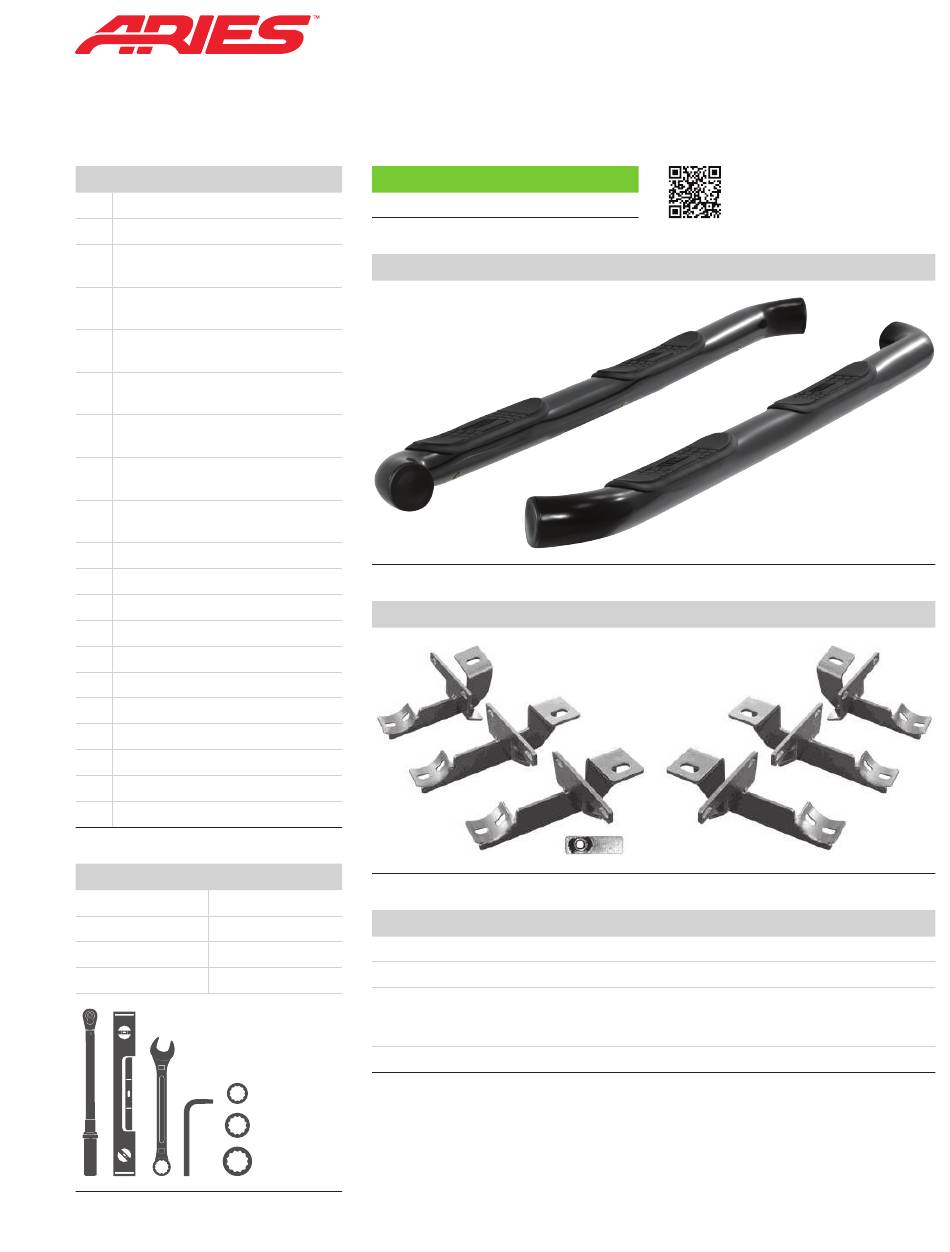

INSTALLATION MANUAL
Parts List
1
Driver / left side bar
1
Passenger / right side bar
1
Driver / left
mounting bracket, front
1
Passenger / right
mounting bracket, front
1
Driver / left
mounting bracket, middle
1
Passenger / right
mounting bracket, middle
1
Driver / left
mounting bracket, rear
1
Passenger / right
mounting bracket, rear
12
Button head cap bolt,
6mm x 25mm
24
Flat washer, 6mm x 22mm
12
Nylock nut, 6mm
2
Hex bolt, 8mm x 35mm
2
Flat washer, 8mm x 25mm
2
Lock washer, 8mm
6
Nut plate, 10mm
6
Hex bolt, 10mm x 35mm
12
Hex bolt, 10mm x 25mm
6
Flat washer, 10mm x 30mm
12
Flat washer, 10mm x 25mm
18
Lock washer, 10mm
Tools Required
Torque wrench
Allen wrench
Socket, 10mm
Wrench, 10mm
Socket, 13mm
Level
Socket, 16mm
Level of Difficulty
Easy

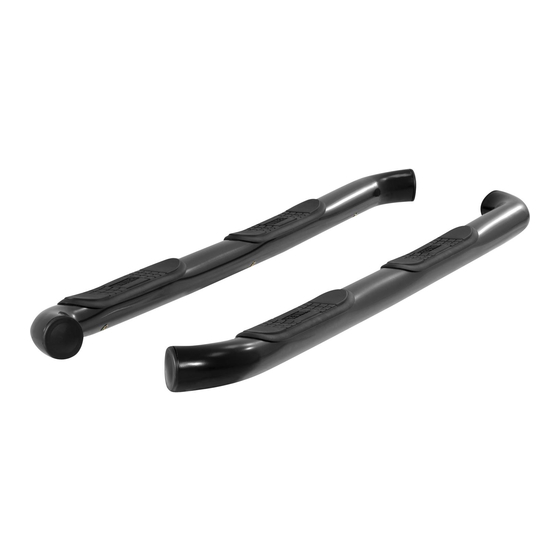

Product Image
Brackets and Hardware
PS
Front
Notes and Maintenance
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
To protect the product, wax after installing. Regular waxing is recommended to
add a protective layer over the finish. Do not use any type of polish or wax that may
contain abrasives that could damage the finish.
For gloss black finishes, mild soap may be used to clean the product.
PAGE 1 • 35700-INS-RA • 800.798.0813 • NEED ASSISTANCE?
Front
PS
Rear
PS
DS
Middle
Middle
Nut plate
35700
Scan
for helpful
install tips
Rear
DS
Rear
DS
Front
• ARIESAUTOMOTIVE.COM
