Aries 35-2000 Installation Manual

INSTALLATION MANUAL

Parts List

1 Bull bar
1 Driver / left
mounting bracket
1 Passenger / right
mounting bracket
2 Hex bolt, M12 x 50mm
2 Flat washer, M12
2 Lock washer, M12

Tools Required

Torque wrench Ratchet
Socket, 17mm Socket, 18mm

Torque Specifications

M6 bolt 3 ft.-lbs.
M8 bolt 7 ft.-lbs.
M10 bolt 16 ft.-lbs.
M12 bolt 28 ft.-lbs.
1/4" bolt 3 ft.-lbs.
5/16" bolt 7 ft.-lbs.
3/8" bolt 16 ft.-lbs.
7/16" bolt 20 ft.-lbs.
1/2" bolt 28 ft.-lbs.

Level of Difficulty

Easy

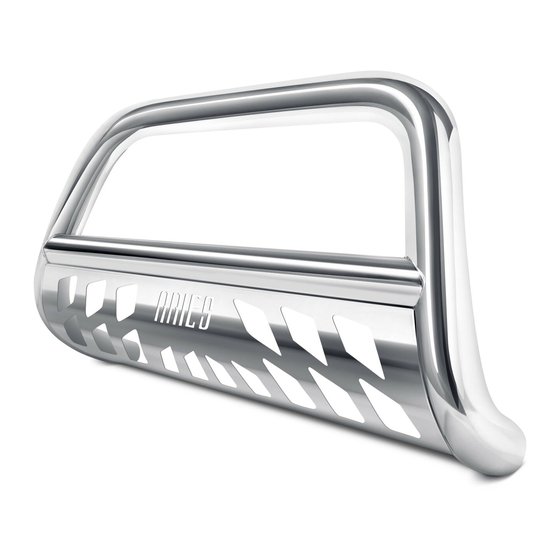

Product Image

Notes and Maintenance

Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
For stainless steel and aluminum, polish may be used to clear small scratches
and scuffs on the finish. Mild soap may be used also to clean the product.
Refer to the table to the left when securing hardware during the
installation process to help prevent damage to the product or vehicle.
PAGE 1 • 35-2000-INS-RA • 877.287.8634 • NEED ASSISTANCE?
35-2000
Scan
for helpful
install tips
• ARIESAUTOMOTIVE.COM
