Aries 363006-2 Installation Manual

INSTALLATION MANUAL

Parts List

1 Driver / left side bar
1 Passenger / right side bar
2 Mounting bracket, front
2 Mounting bracket, rear
16 Clip nut, M8
16 Hex bolt, M8 - 1.25mm x 35mm
16 Flat washer, M8
16 Lock washer, M8
8 Hex bolt, M10 - 1.5mm x 30mm
8 Flat washer, M10
8 Lock washer, M10

Tools Required

Torque wrench Socket, 16mm
Socket, 13mm

Torque Specifications

M6 bolt 3 ft.-lbs.
M8 bolt 7 ft.-lbs.
M10 bolt 16 ft.-lbs.
M12 bolt 28 ft.-lbs.
1/4" bolt 3 ft.-lbs.
5/16" bolt 7 ft.-lbs.
3/8" bolt 16 ft.-lbs.
7/16" bolt 20 ft.-lbs.
1/2" bolt 28 ft.-lbs.

Level of Difficulty

Easy

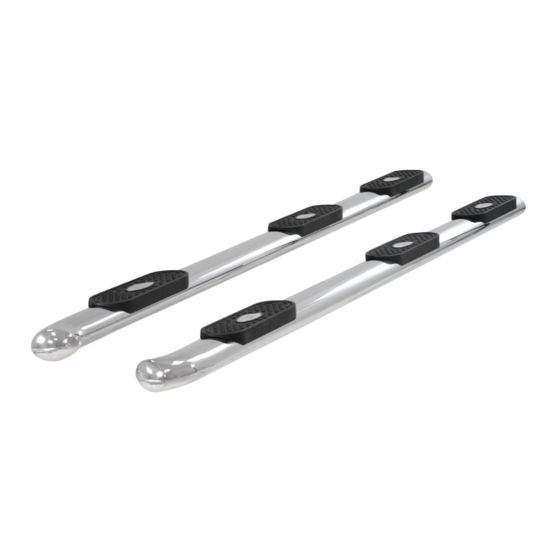

Product Image
Notes and Maintenance
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
For stainless steel and aluminum, polish may be used to clear small scratches
and scuffs on the finish. Mild soap may be used also to clean the product.
Refer to the table to the left when securing hardware during the
installation process to help prevent damage to the product or vehicle.
PAGE 1 • 363006-2-INS-RA • 800.798.0813 • NEED ASSISTANCE?
363006-2
Scan
for helpful
install tips
Front
• ARIESAUTOMOTIVE.COM
Rear
