Aries 3020000 Installation Manual

INSTALLATION MANUAL

Level of Difficulty

Easy

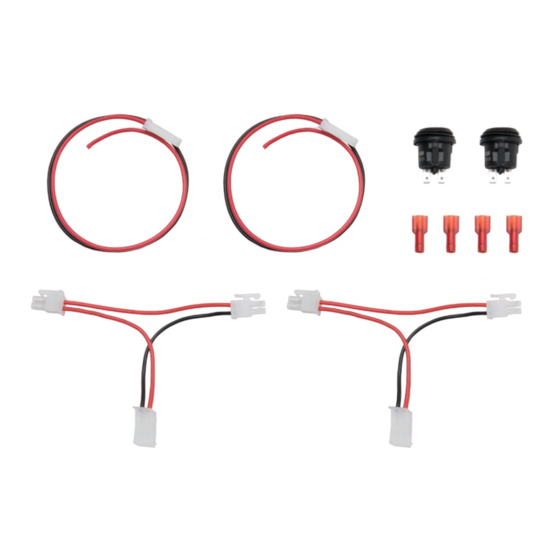

Parts List

2 T-wiring harness
2 Push button extension harness
2 Push button switch
4 Spade terminals

Tools Required

Drill Wire crimper
Drill bit, 7/8"

Torque Specifications

M6 bolt 3 ft-lbs.
M8 bolt 7 ft-lbs.
M10 bolt 16 ft-lbs.
M12 bolt 28 ft-lbs.
1/4" bolt 3 ft-lbs.
5/16" bolt 7 ft-lbs.
3/8" bolt 16 ft-lbs.
7/16" bolt 20 ft-lbs.
1/2" bolt 28 ft-lbs.
Use above torque setting unless otherwise noted
ARIESAUTOMOTIVE.COM
WARNING
Improper electrical installation may result in personal injury. Unless
you are familiar with the installation and handling of electrical systems,
have this step performed by someone who has that familiarity.
Product Photo

Notes and Maintenance

Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
Periodic inspection of all wires and connections should be
performed to ensure there is no visible damage or loose connections.
Refer to the table to the left when securing hardware during the
installation process to help prevent damage to the product or vehicle.

Product Registration

CURT Group stands behind our products with industry leading warranties.
You can help us continue to improve our product line and help us understand
your needs by registering your purchase by visiting:
warranty.curtgroup.com/surveys
At CURT Group, customer is king. We value your feedback and we use that information to make
improvements on our products. Please, take a minute and let us know how we are doing.
• NEED ASSISTANCE? • 877.287.8634
Push button
extension harnesses
T-wiring
harnesses
• 3020000-INS-RB • PAGE 1
3020000
Push button switches
Spade terminals
