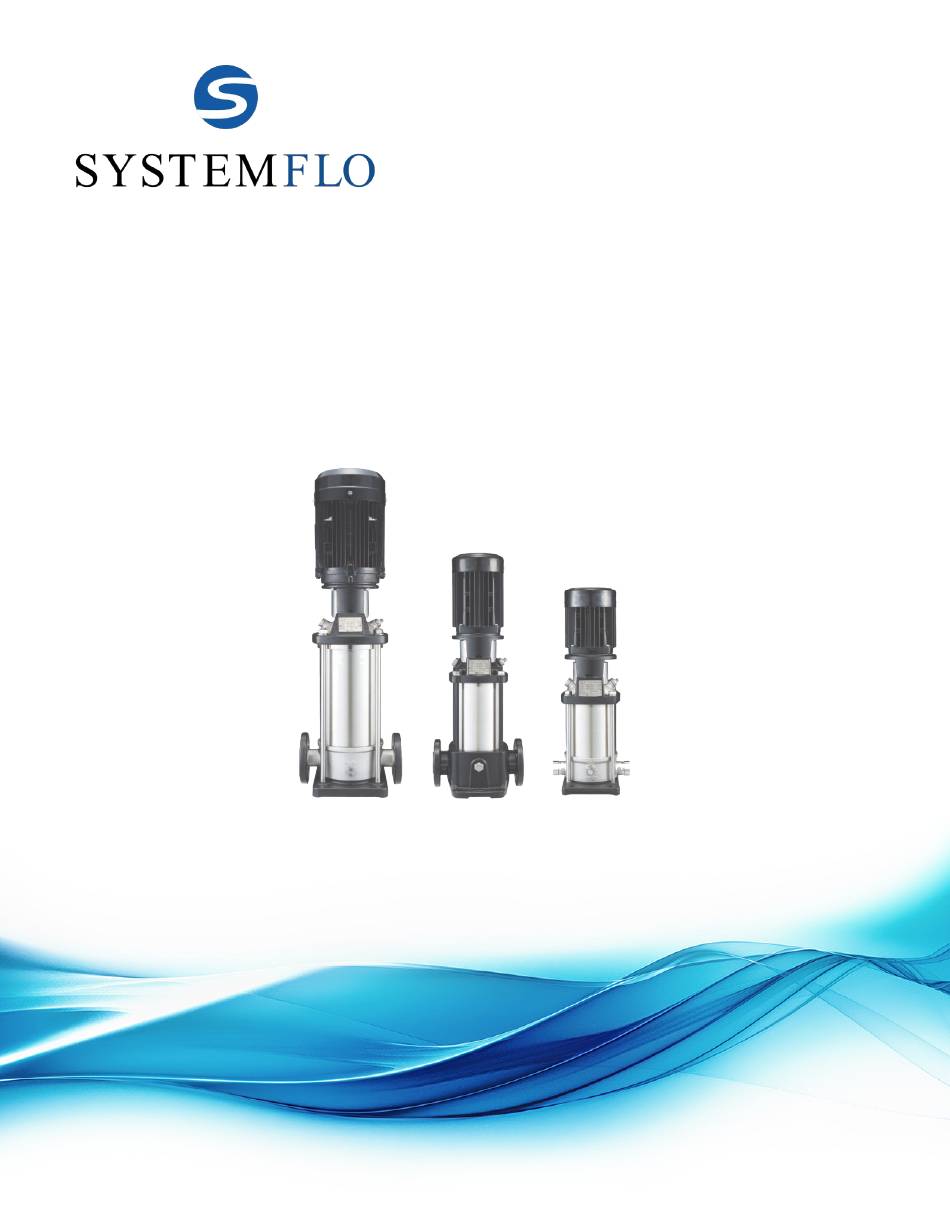

- Page 1 Installation and Operation Manual SLB-C, SLB-S, SLB-N SERIES VERTICAL MULTISTAGE CENTRIFUGAL PUMPS...
- Page 2 SLB-C, SLB-S, SLB-N 1. Model numbering and nameplate format 1.1 Model numbering Example: SLB-C, SLB-S, SLB-N SQQE Code for shaft seal Number of stages Nominal flow(m3/h) Type ranges 1.2 Nameplate format 1. Pump Type–Seal Type 2. Pump Model 3. Frequency 4.
-
Page 3: Technical Data
SLB-C, SLB-S, SLB-N 4. Technical Data 4.1 Temperatures ¾ Ambient temperature: 0°C to +50°C If ambient temperatures are above +40 degrees C, or if the pump is located at elevations more than 1,000 meters above sea level, the motor’s output must be derated to compensate for less effective cooling, and may have to be replaced with a larger size motor. -
Page 4: Electrical Data
SLB-C, SLB-S, SLB-N 4.4 Electrical data Make sure that the supply voltages, phase and frequencies correspond to the motor specifications. 4.5 Number of starts per hour Motors up to and including 4 kW : Maximum 100 times per hour. Motors of 5.5 kW and up : Maximum 40 times per hour. For other manufacturer’s motors, check their instructions for the maximum frequency of starts. - Page 5 SLB-C, SLB-S, SLB-N Pos. Description Pipe support: Support piping system properly to avoid stresses on connections. On-off valves: Install on-off valves for easy access before the pump intake and after the pump dis- charge. Use flexible piping on both input and output sides of the pump to reduce vibration and transmission of noise.
- Page 6 SLB-C, SLB-S, SLB-N Pos. Description If it is necessary to increase the diameter of the suction pipe, place an eccentric reducer between the check valve and the flexible pipe section. Using elbows will increase the flow resistance. Wide bends will result in lesser flow resistance. The piping must have a level or positive gradient to prevent the formation of air pockets.
-
Page 7: Electrical Connection
SLB-C, SLB-S, SLB-N 6. Electrical Connection ¾ All electrical connections should be in accordance with the local regulations and carried out by a qualified electrician. ¾ Make sure that the supply voltages, frequencies, and phase are suitable for the motor specifications. ¾... - Page 8 SLB-C, SLB-S, SLB-N 7.1 Operation ¾ It is recommended to open the bypass valve during start-up. The bypass valve that connects the suction and discharge of the pump will make the filling procedure easier. When the operation is stable, the bypass valve can be closed. ¾...
-
Page 9: Maintenance
SLB-C, SLB-S, SLB-N 8. Maintenance Before starting maintenance work on the pump, the motor, or other parts of the system, make sure that the power supply has been switched off. ¾ The pump does not need a regular maintenance schedule. ¾... - Page 10 SLB-C, SLB-S, SLB-N Fault Probable cause Possible Solution Leakage in the foot valve, check valve or system Repair or replace the components The frequency of pump start-up is too high Ruptured membrane or no air pre-charge in surge tank See relevant instructions in surge tank’s manual Reduce the required flow or improve the operating conditions Cavitation of the pump (suction conditions, head, flow resistance, liquid...
- Page 11 This warranty sets forth specific legal rights and obligations, however, additional rights may exist, which may vary from state to state. Walrus America Inc. 20220 Hempstead Road, Suite #30...
