Replacing TPHK8T(S)E Series Mechanical Seal

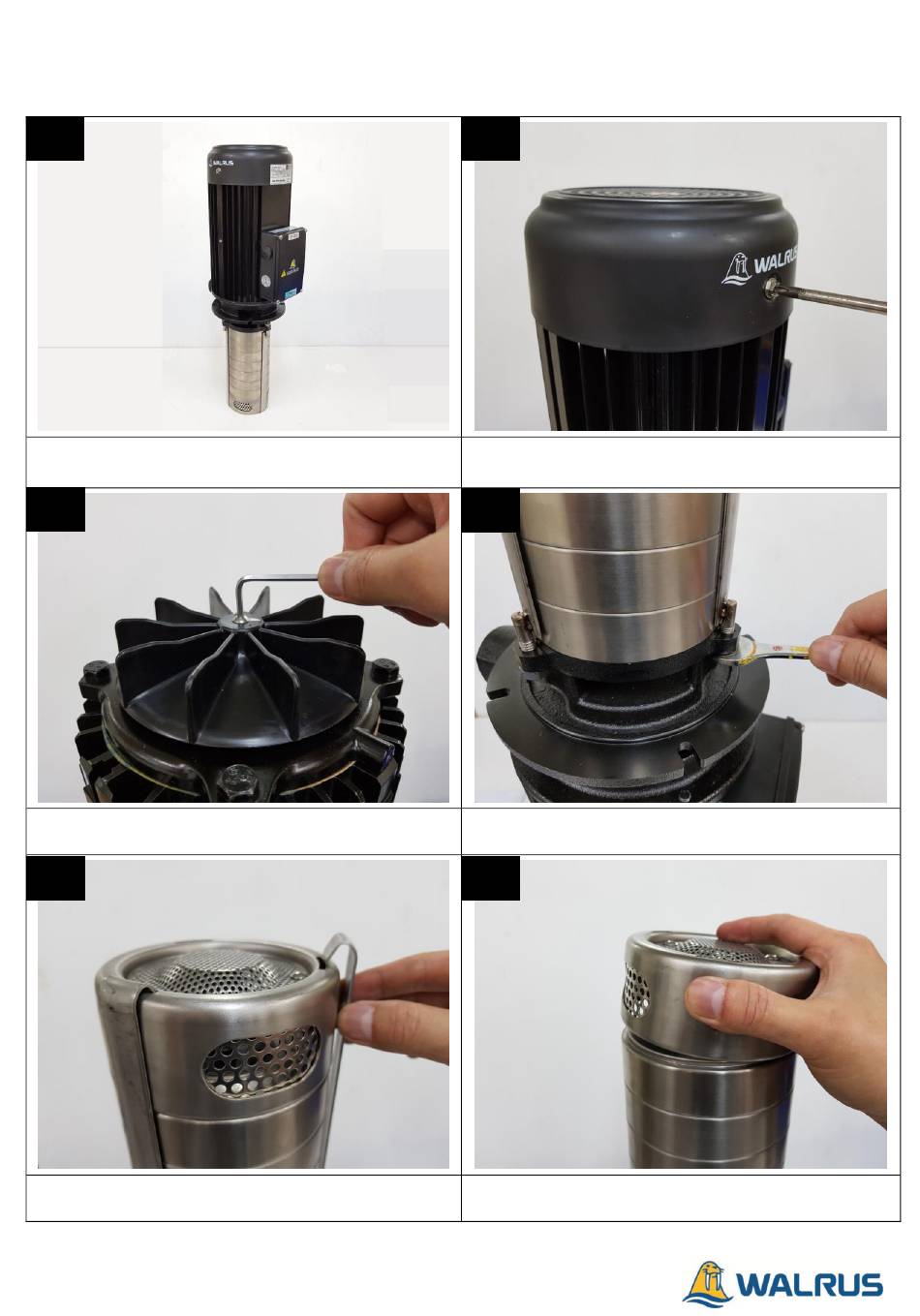

1. Removing mech seal.
1
Place the pump on work bench.
3
Using Allen wrench to remove the motor fan.
5
Remove the 3 straps.
2
Loose the screws and remove the motor fan
cover.
4
Loose the nuts on straps.
6
Remove the suction intercon-nector.
WI-D3-S-B051E-1
