Replacing TPH8-12T Series Mechanical Seal

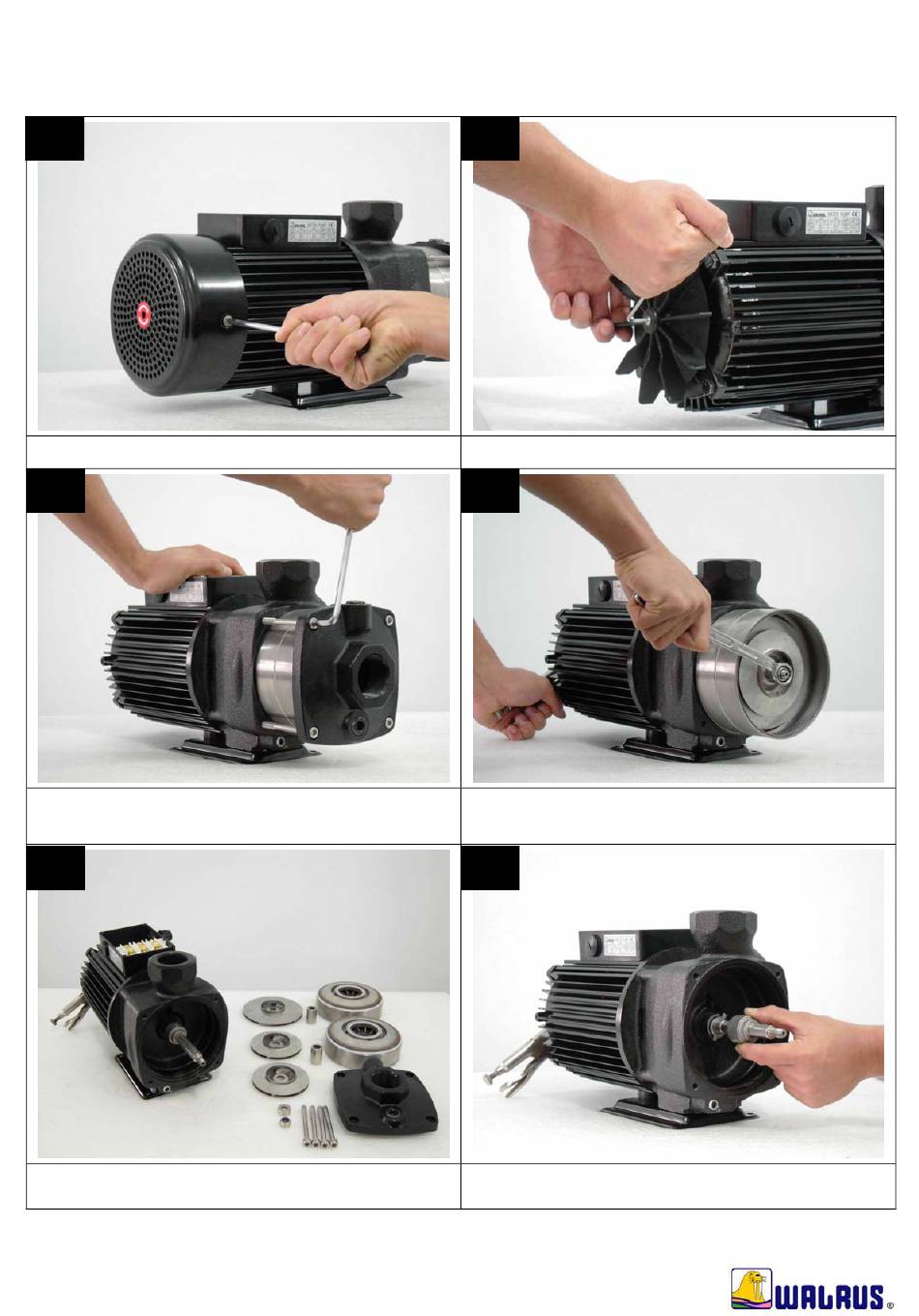

1. Removing mech seal.
1
Loose the screws and remove the motor fan cover.
3
Using Allen wrench (metric size) to loose the stud
bolts and remove pump cap.
5
Remove all impellers, sleeves and inter-mediate
chambers and place them in order.
2
Using Allen wrench to remove the motor fan.
4
Using wrench to loose the lock nut.
6
Remove the cap.
WI-D3-S-B006E-1
Advertisement
Related Manuals for Walrus TPH8T Series
Summary of Contents for Walrus TPH8T Series
- Page 1 Replacing TPH8-12T Series Mechanical Seal 1. Removing mech seal. WI-D3-S-B006E-1 Loose the screws and remove the motor fan cover. Using Allen wrench to remove the motor fan. Using Allen wrench (metric size) to loose the stud Using wrench to loose the lock nut. bolts and remove pump cap.
- Page 2 Remove the spring and washer. Remove the rotary parts of mechanical seal. Remove the stationary part.
- Page 3 2. Assembling mech seal. Spray water on the shaft as lubrication. Place the stationary part in position and press in. Before press in rotary parts, insert the sleeve through Remove the cap and press in rotary parts. the hex shaft aligning the slots on sleeve to tabs on washer.
- Page 4 Place the lock nut. Using wrench to tighten up the lock nut. ※Torque 180 kgf．cm Place new gasket on inter-mediate chambers. Install the pump cap and Tighten up the stud bolts. ※Torque 150-170 kgf．cm Install the motor fan. Install the motor fan cover. ※Torque 10 kgf．㎝...
