Replacing HQ800(H) Mechanical Seal
1.Removing mech seal.
1
Using Allen wrench (metric size) to remove the 6
screws.
3
Remove all impellers, sleeves and intermediate
chambers.
5
Remove the rotary parts of mechanical seal.
2
Using wrench to remove the stud bolt.
4
place all impellers, sleeves and intermediate chambers
in order.
6
Remove ceramic parts from mech seal kit.
WI-D3-S-B047E-2
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Walrus HQ800
Summary of Contents for Walrus HQ800
- Page 1 Replacing HQ800(H) Mechanical Seal 1.Removing mech seal. WI-D3-S-B047E-2 Using Allen wrench (metric size) to remove the 6 Using wrench to remove the stud bolt. screws. Remove all impellers, sleeves and intermediate place all impellers, sleeves and intermediate chambers chambers. in order.
- Page 2 Remove the stationary part (rubber) of the mechanical seal.
- Page 3 2.Assembling mech seal. Spray water on the shaft as lubrication. Place the stationary part in position and press in. Put on the rotary part of mechanical seal. Press in the rotary parts. Place back all impellers, sleeves and intermediate Tighten up the stud bolt. chambers in order.
- Page 4 Install O-ring onto pressure tank. Install the pressure tank. (make sure it is clean) Identify different sizes of stud bolts. Install shorter stud bolts on the red circled places. Tighten up the stud bolts.
Need help?
Do you have a question about the HQ800 and is the answer not in the manual?
Questions and answers

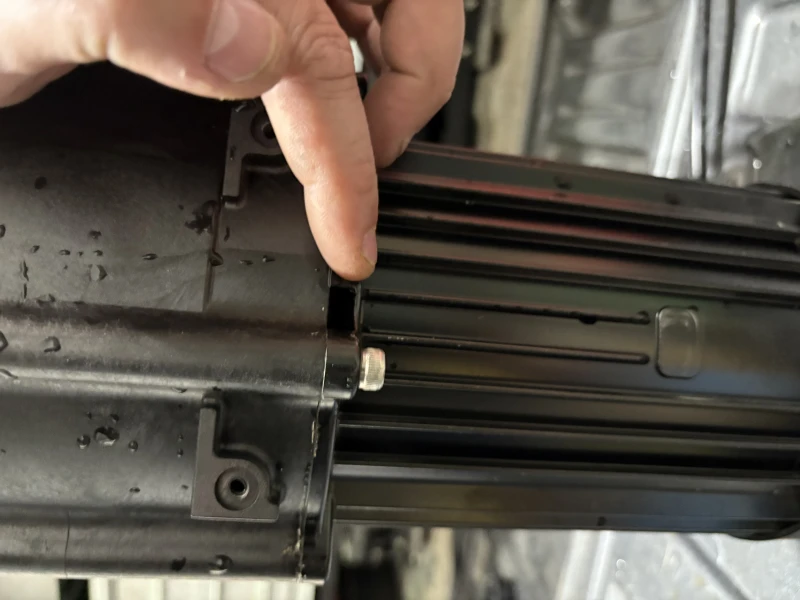

My hq 800 is leaking from bottom of pump housing nothing is cracked put new mechanical shaft seal and still leaking Comes out of hole in picture on bottom of pump.
If a Walrus HQ800 pump is leaking from the bottom of the pump housing even after replacing the mechanical shaft seal, possible causes include:
1. Improper installation of the mechanical seal, such as incorrect positioning or insufficient sealing pressure.
2. Damaged or improperly installed O-rings, especially the one on the pressure tank.
3. Cracks or damage in the pump housing itself.
4. Worn or damaged impellers, sleeves, or intermediate chambers not reassembled correctly.
5. Debris or dirt preventing proper sealing surfaces during reassembly.
Each component must be clean, correctly aligned, and securely fastened during reassembly to prevent leaks.
