EK-Quantum Vector TUF RTX 3080 User Manual page 8

ORIGINAL
TERMINAL

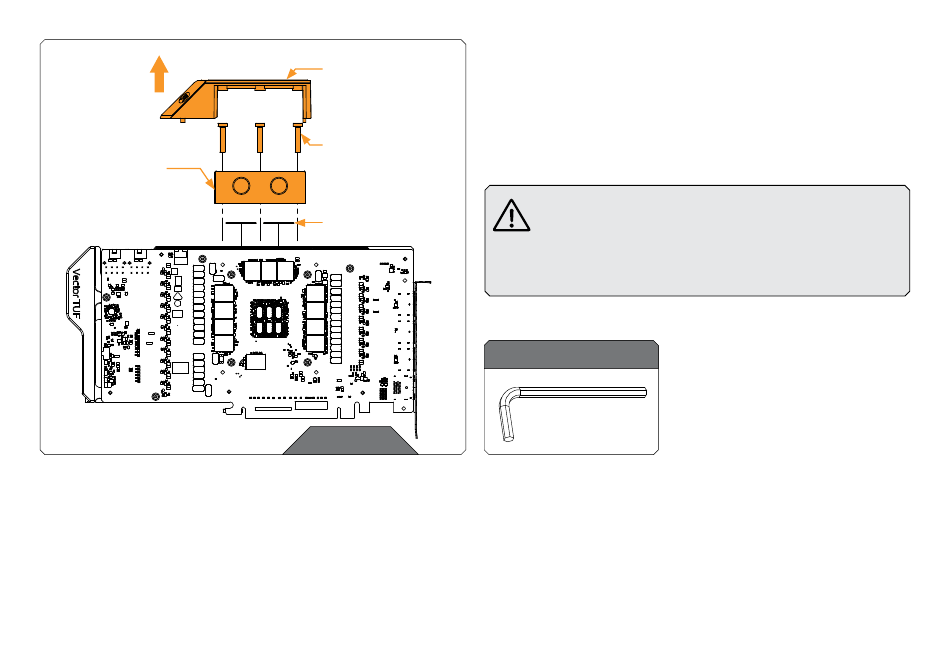

STEP 2
REMOVING THE ORIGINAL TERMINAL
TERMINAL COVER
EK-Quantum Vector TUF RTX 3080/3090 Active Backplate comes
with its own terminal, meaning the original terminal, along with two
(2) 15 x 1 O-rings, on the EK-Quantum Vector TUF RTX 3080/3090
water block has to be removed. Unscrew the three (3) M4 x 20
M4 x 20 DIN7984 DIN7984 screws and detach the terminal from the water block. The
SCREW procedure of terminal detachment is shown in the image.
OR 15 x 1 mm
For this Step, you will need:
STEP 2
- 8 -
Attention!
In case the EK-Quantum Vector TUF RTX 3080/3090
water block is already filled with coolant, empty the
content of the water block before continuing with this
step. Be careful that the coolant that remained in the
water block does not come in contact with the GPU!
Allen Key 2.5 mm
