There are two mic preamps, eight line inputs, and eight line outputs. Select a channel and it will appear in the Focus
section.
Analog Input Controls
14

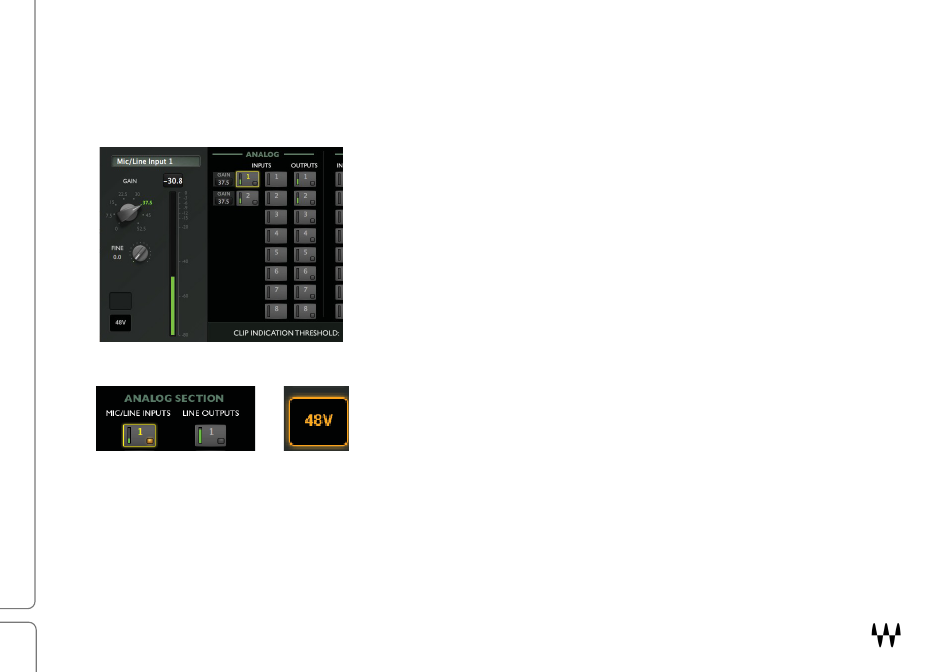

Use the Focus section to set preamp levels and turn the 48V phantom on and
off. The long meters range from -80 dBFS to 0 dBFS.
Mic/Line knob gain range: 0 dB to 52.5 dB in 7.5-dB steps
Fine knob digital gain range: 0 dB to 7 dB in 0.5-dB steps
A clip indicator holds for two seconds or for as long as clipping persists.
Peak hold persists until you reset it by clicking on the indicator or switching to
a different input.
An orange light on a channel button indicates that phantom power for that
channel is active. This status is also shown in the Focus section.
