Waves DiGiGrid IOC User Manual page 5

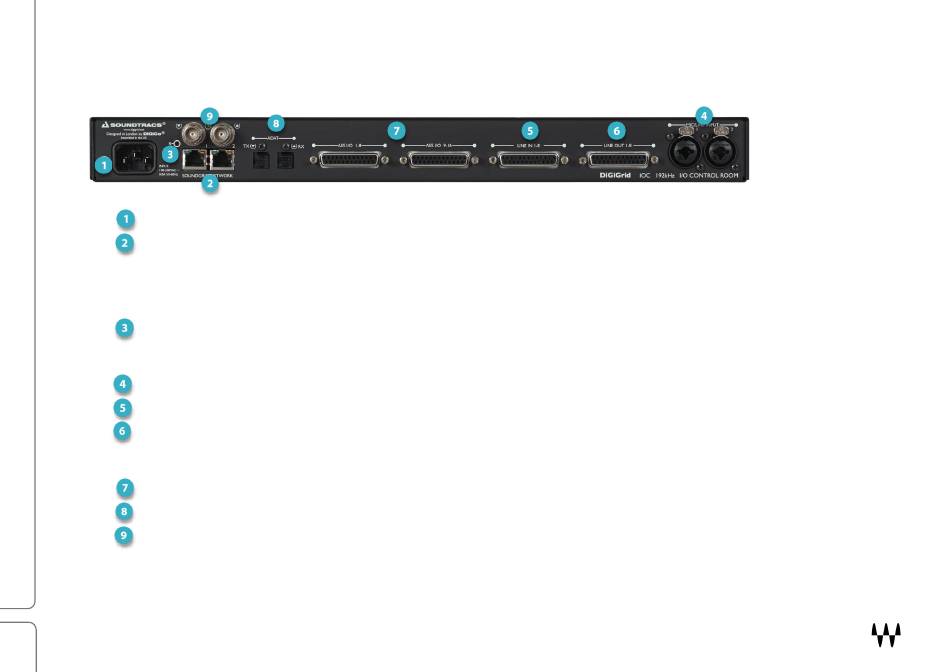

IOC R P
EAR ANEL
Mains input: 90–240V AC 50/60 Hz
Built-in 1GB Ethernet switch, two ports
The two-port Ethernet switch can connect IOC directly to a host computer and one other device without an
external Ethernet switch. For larger systems, a 1GB SoundGrid-approved Ethernet switch is necessary. It is not
important which of the Ethernet ports is used to connect to the SoundGrid network.
Recovery/reset button
Analog Connections
2 mic/line inputs (combo XLR/TRS connectors)
8 line in (DB25 8-channel balanced connector)*
8 line out (DB25 8-channel balanced connector)*
Digital and Clock Connections
16 AES/EBU I/O (2x 25-pin DB25)*
1 ADAT I/O (8 channels @ 48 kHz)
Clock in and out (BNC connectors for external Word Clock)
* See the Connections diagram in the Technical Specifications section at the end of this user guide.
