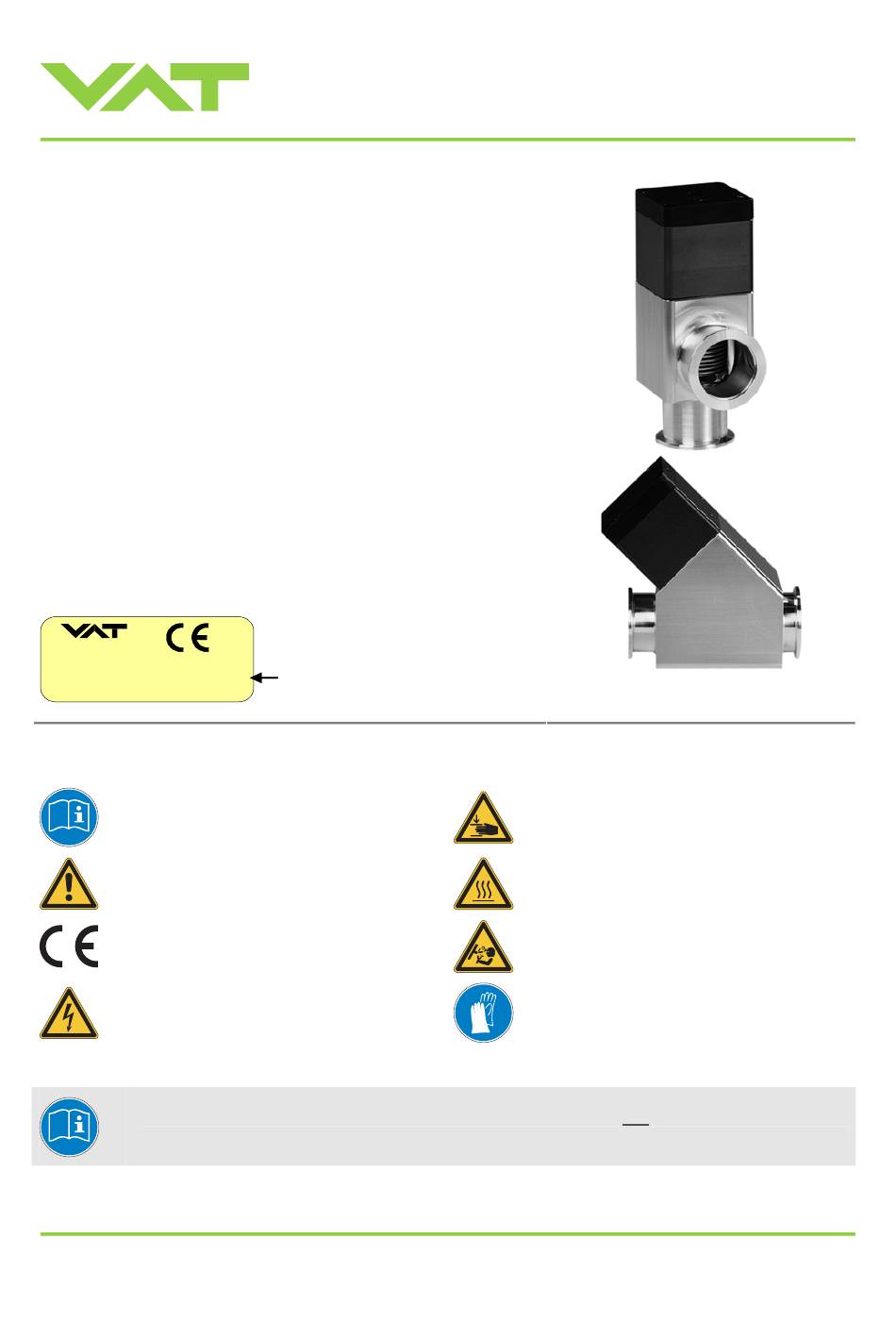

VAT 29 Series Installation, Operating,  & Maintenance Instructions

VAT 29 Series Installation, Operating, & Maintenance Instructions

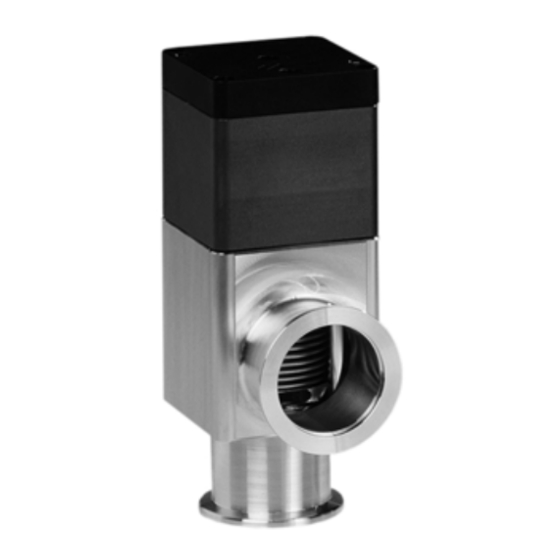

Angle & inline valve with soft-pump function with pneumatic actuator, single acting with closing spring (nc)

Advertisement

Angle & Inline Valve
with soft-pump function
with pneumatic actuator,
single acting with closing spring (NC)
This manual is valid for the valve ordering number(s):
Angle valves:
29028-KA/H/E/11/21/31/41
29032-KA/H/E/11/21/31/41
29034-KA/H/E/11/21/31/41
Inline valves:
29128-KA/H/E/11/21/31/41
29132-KA/H/E/11/21/31/41
29134-KA/H/E/11/21/31/41
The fabrication number is indicated on each product as per the label
below (or similar):
made in Switzerland
Fabrication No.:
patented
29 . . . – . . . . – . . . . / . . . .
A – . . . . . .
Explanation of symbols:
Read declaration carefully before you start any other
action!
Attention!
Product is in conformity with EC guidelines,
if applicable!
Disconnect electrical power and compressed air
lines. Do not touch parts under voltage!
Read these «Installation, Operating & Maintenance Instructions» and the enclosed «General
Safety Instructions» carefully before you start any other action!
VAT Vakuumventile AG, CH-9469 Haag, Switzerland
Tel +41 81 771 61 61 Fax +41 81 771 48 30 CH@vatvalve.com www.vatvalve.com
Installation, Operating & Maintenance Instructions
Series 29, DN 25 - 50 (I.D. 1" - 2")
. .
Fabrication number
Keep body parts and objects away from the valve
opening!
Hot surfaces; do not touch!
Loaded springs and/or air cushions are potential
hazards!
Wear gloves!
257676ED
2006-05-11
1/13
