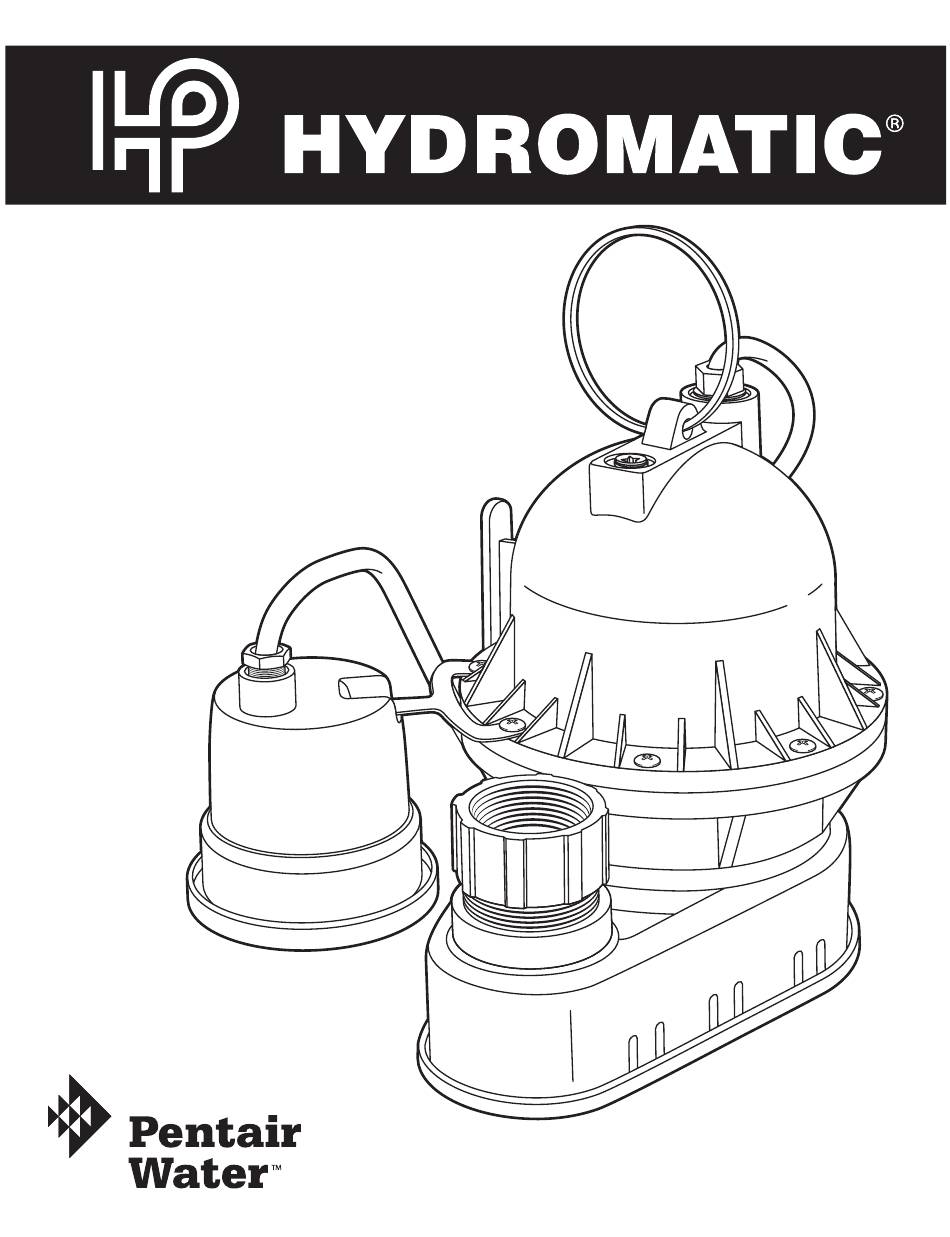

X-30
3/10 HP Submersible Sump Pump
1/4" Solids Handling
•
Oil-filled motor for superior heat dissipation and
continuous lubrication
•
Mechanical shaft seal ensures reliable operation
•
Available with diaphragm or vertical switch
•
High-impact thermoplastic cap and base
Pump Installation And Service Manual
Note to the installer: Please make sure you provide this
manual to the owner of the pumping equipment or to the
responsible party who maintains the system.
Advertisement
Table of Contents
Related Manuals for Hydromatic X-30
Summary of Contents for Hydromatic X-30
- Page 1 Pump Installation And Service Manual X-30 3/10 HP Submersible Sump Pump 1/4" Solids Handling • Oil-filled motor for superior heat dissipation and continuous lubrication • Mechanical shaft seal ensures reliable operation • Available with diaphragm or vertical switch • High-impact thermoplastic cap and base Note to the installer: Please make sure you provide this manual to the owner of the pumping equipment or to the responsible party who maintains the system.
- Page 2 4. Impeller or volute openings may be fully or General Information partially clogged. Remove pump and clean. 5. Inlet holes in pump base may be clogged. Remove Thank you for purchasing your Pentair pump. To help pump and clean the openings. ensure years of trouble-free operation, please read the 6. Pump head may be too high. Pump can’t deliver following manual carefully. water over 22 feet vertical. Horizontal distance Before operation does not affect pumping, except loss due Read the following instructions carefully. Reasonable to friction. care and safe methods should be practiced. Check local Pu mp runs and pumps out sump but codes and requirements before installation. does not stop Attention Float is stuck in up position. Be sure float operates freely This manual contains important information for the safe in basin. use of this product. Read this manual completely before Pu mp runs but delivers only a small using this product and refer to it often for continued safe amount of water product use.
- Page 3 Flow (LPM) Flow (GPM) 5969 0309 Ground type 115 volt Switches receptacle min. height above floor - 4 Ft. On/Off Vertical 7" - 3-1/2" Shut-off gate valve (Optional) On/Off Diaphragm 8-1/2" - 3-1/2" Check valve (13254-001-1) with rubber sleeve connectors for 1-1/4" and 1-1/2"...
- Page 4 Your only remedy, and HYDROMATIC’ s only duty, is that HYDROMATIC repair or replace defective products (at HYDROMATIC’ s choice). You must pay all labor and shipping charges associated with this warranty and must request warranty service through the installing dealer as soon as a problem is discovered.
