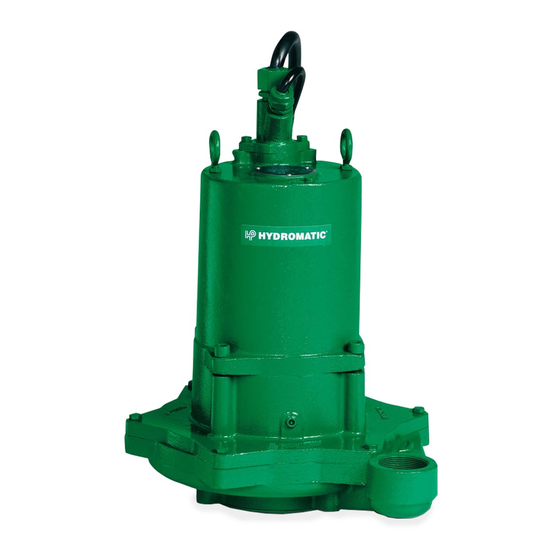

HYDROMATIC
HPGF/HPGFH &
HPGH/HPGHH
Submersible Grinder Pump
NOTE! To the installer: Please make sure you provide
this manual to the owner of the pumping equipment or to
the responsible party who maintains the system.
Pump Installation and Service Manual
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HPGF and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hydromatic HPGF

Summary of Contents for Hydromatic HPGF

  • Page 1 Pump Installation and Service Manual HYDROMATIC ® HPGF/HPGFH & HPGH/HPGHH Submersible Grinder Pump NOTE! To the installer: Please make sure you provide this manual to the owner of the pumping equipment or to the responsible party who maintains the system.

  • Page 2: General Information

    Thank you for purchasing your occur due to rejection after job The cutter blades are on the HYDROMATIC Pump. To help is finished. suction side of the centrifugal insure years of trouble free pump impeller and discharge...

  • Page 3: Pump Operations

    and turns on when level is hammer loosen. Pump about 2 inches above motor. Disassemble radial cutter (22) Operations and axial cutter (17) from the impeller (25) by removing CAUTION: Be sure ground socket head cap screws (23). wire is connected to good Starting The Pump: 8.
  • Page 4 and side drain plugs (10) drop out. A stator back-up Pump before filling motor chamber. ring (36), installed on some 3 Maintenance Again fill so that oil level is horsepower pumps, will also just over the top of winding to fall out.
  • Page 5 Bearings are standard size that can be obtained from any bearing supply house or can be obtained from HYDROMATIC factory. 6. Thoroughly clean all castings before replacing bearings. Examine all O-rings for nicks before reusing.

  • Page 6: Pump Troubleshooting

    Pump is noisy: 4. No diametral clearance between Pump radial cutter and cutter ring 1. Defective bearings. Troubleshooting If the cause of the trouble cannot 2. No axial clearance between be determined as corrected as impeller and volute. outlined above contact your 3.
  • Page 7 22 07908-000-2 Cutter Radial-HPGH 12750-003-1 Stator-HPGF500-230/1/60 W.C. - HPGF(H) 3HP, 5HP; 230/3 07903-000-2 Cutter Radial-HPGF 12750-203-1 Stator-HPGF500-200/1/60 W.C. - HPGF(H) 5HP; 200/1, 230/1 & 7.5HP; 200/33 23 00517-010-1 Screw-Cap 01329-203-1 Stator-HPGF500-200/3/60 W.C. - HPGF(H) 7.5HP; 230/3 24 07910-000-2 Cutter Stationary-HPGH 01329-003-1 Stator-HPGF500-230,460/3/60 W.C.
  • Page 8 HPGF/HPGH...
  • Page 9 HPGFH/HPGHH...
  • Page 10 Pump Notes ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________...
  • Page 11 Pump Notes ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________...

  • Page 12: Warranty

    All dual seal non-clogs and 3–5 HP grinders must have seal failure and heat sensors attached and functional for Warranty to be in effect. If a seal failure should occur, Hydromatic Pumps will cover only the lower seal and labor thereof. Labor based on Authorized Service Center contract allowance. If the heat sensor is not attached and functional, Warranty is void.
