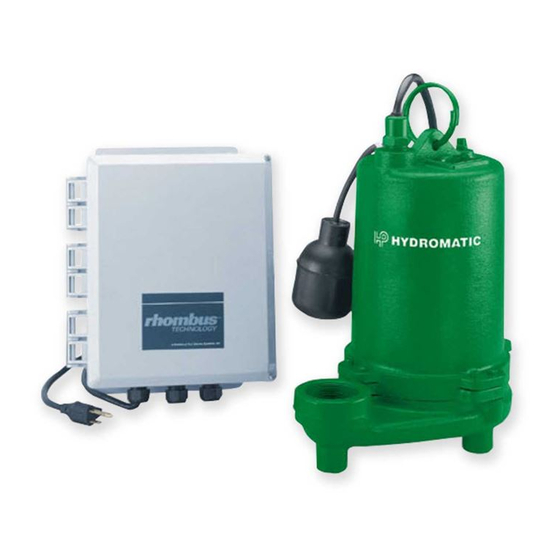

Submersible High Temperature
Effluent Pump
INSTALLATION, OPERATION, & PARTS MANUAL

SAFETY INFORMATION

Carefully read and follow all safety instructions in this
manual or on pump.
This is the safety alert symbol. When you see this
symbol on your pump or in this manual, look for one of the
following signal words and be alert to the potential for
personal injury!
warns about hazards that will cause serious
personal injury, death or major property damage if ignored.
warns about hazards that can cause serious
personal injury, death or major property damage if ignored.
warns about hazards that will or can cause
minor personal injury or property damage if ignored.
The word NOTICE indicates special instructions which are
important but not related to hazards.
NOTICE: Pump must be installed in a vertical position only.
Installing pump in any other position will void warranty.
1. To avoid serious injury and/or property damage, read
these rules and instructions carefully.
2. Check your local codes before installing. You must com-
ply with their rules.
3. Vent sewage or septic tank according to local codes.
4. Do not install pump in any location classified as haz-
ardous by National Electrical Code, ANSI/NFPA
70-1984.
5. Pump normally runs hot. To avoid burns when servicing
pump, allow it to cool for 20 minutes after shut-down
before handling it.
6. Do not run pump dry. Dry running can overheat pump
and will void warranty.
7. Pump is permanently lubricated. No oiling or greasing is
required in normal operation. For overhaul, see instruc-
tions under "Service", Page 5.

SPECIFICATIONS

Model
Motor
Number
HP
HTS50A1
1/2
© 2010
Max.
Load
Volts
Phase
Amps
115
1
12.0
Hazardous voltage. Can shock, burn, or
cause death. During operation the pump is in water. To
avoid fatal shocks, proceed as follows if pump needs
servicing:
8A Ground pump according to all applicable codes and
ordinances.
8B. Disconnect power to outlet box or circuit breakers before
servicing.
8C. To reduce risk of electric shock, take care when changing
fuses or resetting circuit breakers. Do not stand in water
when working on control box or with circuit breakers.
Single Phase Pumps:
8D. When using cord and plug, plug into a grounded outlet
only. When wiring to a system control, connect pump
ground lead to system ground.
DESCRIPTION
These pumps are designed for effluent and waste water
removal, sump drainage, liquid transfer systems, circulation,
dewatering and flood control. Pump motors are 115V single
phase. Comes with a 20' 3-prong grounding type cord and
plug.
The maximum liquid temperature for HTS50 is 200°F
(93.3°C).
NOTICE: This unit is not designed for applications involving
salt water or brine! Use with salt water or brine will void
warranty.
PERFORMANCE
GPM AT TOTAL FEET
Model
10
CAPACITY GALLONS/MINUTE
HTS50A1*
65
* Flows are for 200° F water temperature.
Individual
Dischage
Branch Circuit
Adapter
Required (Amps)
Size (inches)
15
2
HTS50 Series
at height
20
30
40
60
50
30
Switch Setting
in inches (mm)
On
Off
17.8 (452)
8.8 (224)
HYD505 (Rev. 7/14/10)
No flow
shown
below
48
