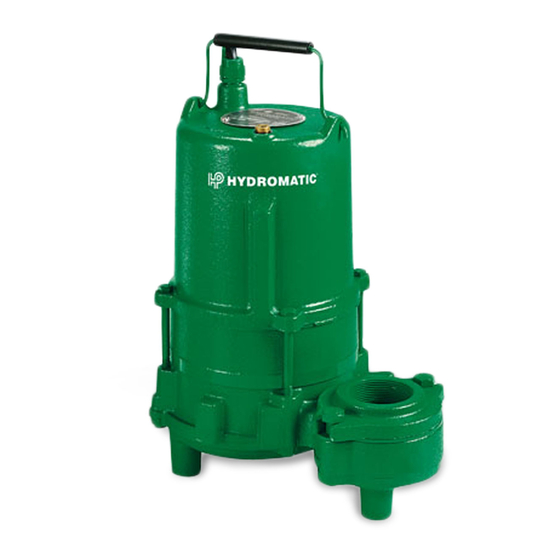

SPD50H/100H
Submersible Effluent Pump
NOTE! To the installer: Please make sure you provide
this manual to the owner of the pumping equipment or to
the responsible party who maintains the system.
Pump Installation and Service Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPD50H and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hydromatic SPD50H

Summary of Contents for Hydromatic SPD50H

  • Page 1 Pump Installation and Service Manual SPD50H/100H Submersible Effluent Pump NOTE! To the installer: Please make sure you provide this manual to the owner of the pumping equipment or to the responsible party who maintains the system.

  • Page 2: General Information

    11. Hydromatic check valve Pump DO NOT THROW AWAY OR should installed LOSE THIS MANUAL. Keep it Installation discharge pipe.

  • Page 3: Pump Servicing

    b. pump motor or bearings power cord from terminals in Pump may be defective control panels (manual pump Servicing models) and power source c. start capacitor in motor may (automatic models) and remove have failed pump from sump. Read the following instructions d.
  • Page 4 SPD50H SPD100H...
  • Page 5 To check the RESISTANCE terminal bushings on top of seals, remove the lower housing SPD50H SPD100H motor (1ø only; 3ø remove 1ø Start 1ø Main 3ø Bal. 1ø Start 1ø Main 3ø Bal. pipe plug (#8) and pour the oil out 115V 6.53...
  • Page 6 6. Turning the bearing by hand: if Do not roll it. If twisted, Pump it feels rough when turned or water may enter chamber and Servicing looks rusted, it should be cause failure. replaced. Obtain a bearing 7. Clean the motor housing puller to remove the bearing.
  • Page 7 Note: Too much pressure will leaks, fill the motor and plugs (#6). Turn pump on side damage the seal. seal housing with high grade and fill seal chamber to 1" transformer oil, such as Sohio from top. Replace plug (#8) Factopure SE40 or equivalent, and stand pump up.

  • Page 8: Pump Troubleshooting

    Remove pump 2. Pump head may be too high. and clean per maintenance float operates freely in basin. Pump cannot deliver water instructions. over (SPD50H) 6. If all symptoms check OK, motor winding (SPD100H) vertical. 3. Pump impeller Horizontal distance does not...
  • Page 9 Pump Notes ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________...
  • Page 10 SPD50H/100H Three Phase 3-PHASE WIRING LOW VOLTAGE (230V) HIGH VOLTAGE (460V) 29 30 13 11 MODEL – SPD50H/SPD100H THREE PHASE Ref. No. Part No. Description Qty. Ref. No. Part No. Description Qty. 60-000-5 Handle 324-001-1 Gasket 56-023-2 Housing, Motor 19103A052 Screw, Hex Hd.

  • Page 11: Single Phase

    Violet (9) 230V LINE Yellow (3) Black (6) Blue(4) Brown (10) Violet (9) 115V LINE Yellow (3) Black (6) Blue(1) MODEL – SPD50H/SPD100H SINGLE PHASE Ref. SPD50H SPD100H Ref. SPD50H SPD100H Part No. Part No. Description Qty. Part No. Part No.
  • Page 12 All dual seal non-clogs and 3–5 HP grinders must have seal failure and heat sensors attached and functional for Warranty to be in effect. If a seal failure should occur, Hydromatic will cover only the lower seal and labor thereof. Labor is based on Authorized Service Center contract allowance. If the heat sensor is not attached and functional, Warranty is void.
